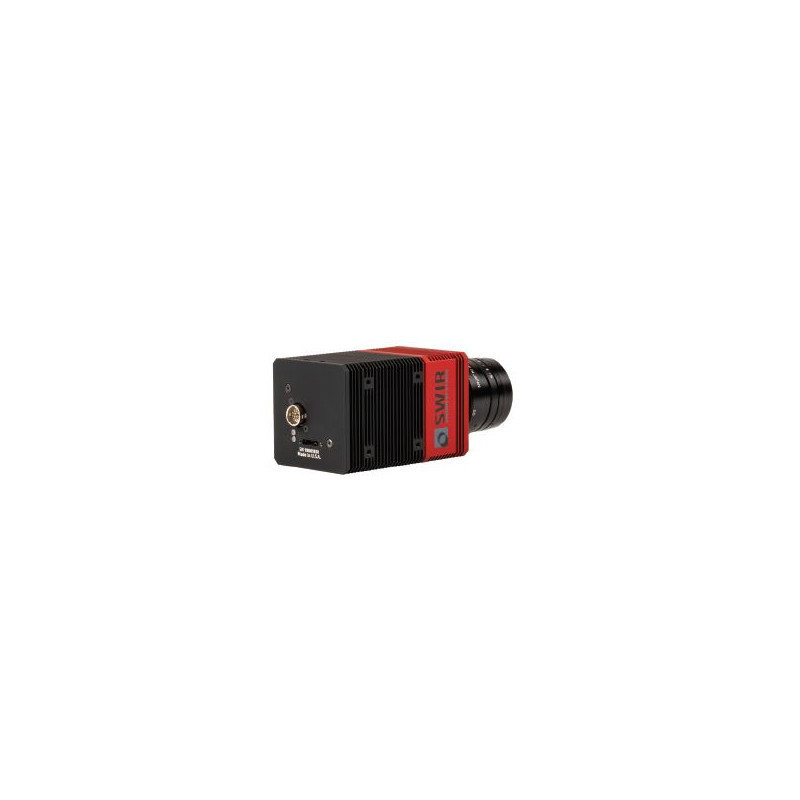

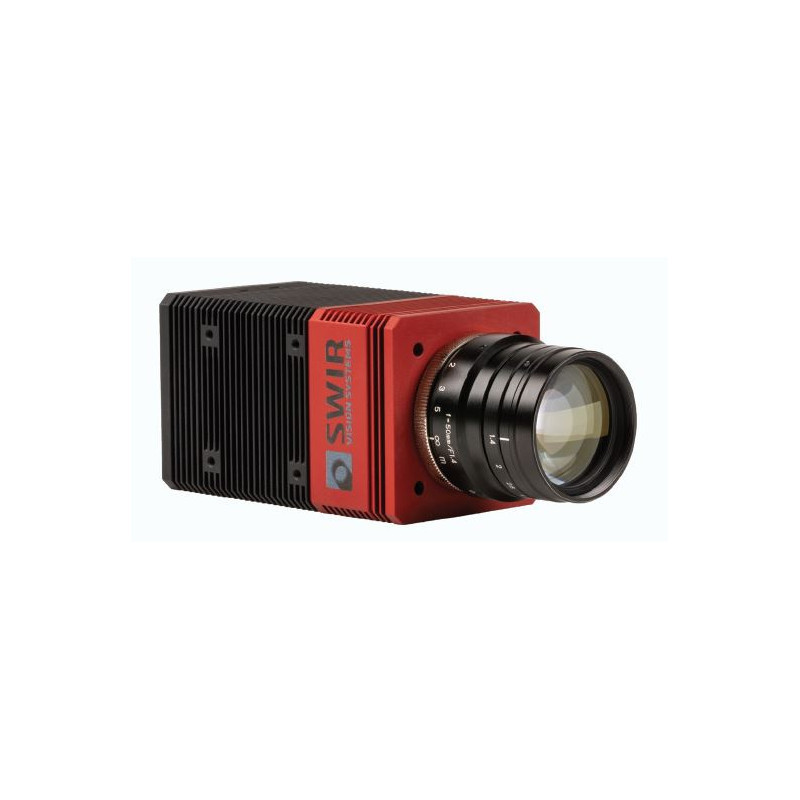

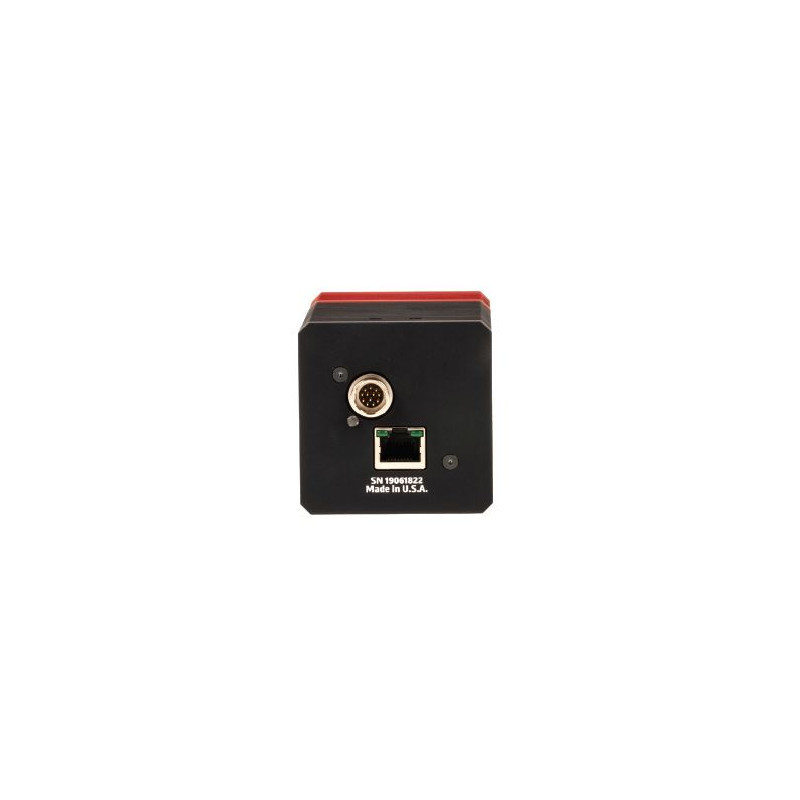

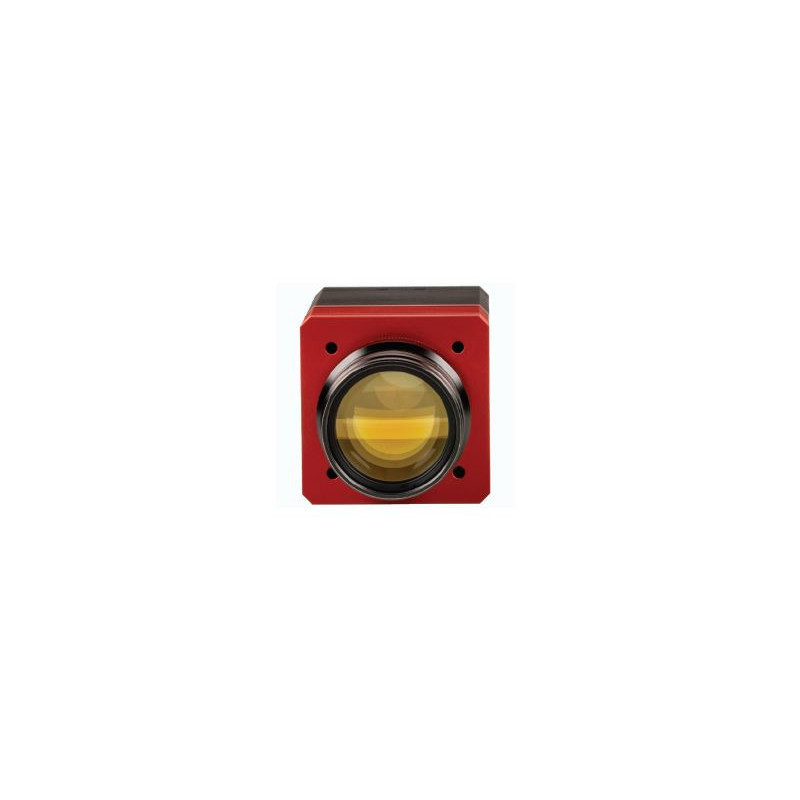

Acuros eSWIR-Camera VGA

Referencia SWR-Acuros-eSWIR-VGA-C-XXXX

The Acuros eSWIR VGA series from SWIR Vision Systems deliver crisp images in the range from 400 to 2100 nm. Due to the absence of InGaAs semiconductor materials, the camera is not subject to dual-use classification and thus less export restrictions.






Alexandre Besson
Business Unit Director
+33 5 57 10 92 84
a.besson@laser2000.fr
Solicitud de producto: Acuros eSWIR-Camera VGAX



Querido Besson,

Estoy interesado en el siguiente producto: Acuros eSWIR-Camera VGA


Su solicitud:

Una oferta
Información
Apelación y asesoramiento
Por favor complete al menos los campos obligatorios marcados con un *.



* Saludo:

Grado academico:

Primer nombre:

* Apellido: * Apellido:

* Nombre de la empresa: * Nombre de la empresa:

Dirección de la empresa:

* Calle: * Calle:

* Código postal: * Código postal:

* Lugar: * Lugar:


* E-Mail: * E-Mail:

* Teléfono: * Teléfono:

Texto:




* Que voyez-vous sur la photo 2?* ¿Qué ves en la imagen 2?

laserdiode laserschutzbrille laserschutzfenster leistungsmessgerät


Por favor seleccione:Por favor seleccione:    Diodo    Manómetro    Gafas de protección    Prueba de Windows



Por favor, compruebe los campos marcados en rojo.




Su solicitud ha sido enviada exitosamente. Será contactado lo antes posible.





DESCRIPCIÓN DEL PRODUCTO

Cameras with CQD™ technology for VIS-SWIR range

The Acuros series eSWIR cameras from SWIR Vision Systems open up a new class of cameras in the short-wave infrared range. The unique Quantum Dot technology is capable of extending the range of a single detector to cover the visible range starting from 400 nm up to 2100 nm in the extended SWIR region.

CQD sensors are manufactured by depositing quantum dot semiconductor crystals directly on the surface of the silicon wafer.
The resulting CQD photodiode array thus enables:

  • high resolution
  • small pixel pitch
  • high spectral bandwidth
  • low noise
  • low crosstalk between pixels

The CQD sensor technology is scalable to wafer size, which opens up the potential for very cost-effective solutions in high-volume applications.

Specifications:

Sensor-SpecificationsOther Specifications
SensorAcurosTM CQDTM SensorOperating Temperature-20 °C bis +55 °C
Temperature stabilization1 Stage, thermoelectricPower Consumption6.5 W
Sensor Array Format640 x 512 PixelOperating Voltage6 - 16 V DC
Resolution0.33 MegapixelRegulatory ComplianceCE-mark
Spektraler Range400 - 2100 nmDimensions6.1 x 6.1 x 9.7 mm (C-Mount Frontplate)
Array Dimension9.6 x 7.7 mm, 12.3 mm diagonalWeight508 g (C-Mount Frontplate)
Pixel Pitch15 µm x 15µmLens MountC-Mount, M42*
Max. Framerate,10 Bit380 fpsPower ConnectorHirose 12 Pin, HR10A-10R-12PB
Max. Framerate, 14 Bit190 fpsData InterfaceUSB3 Vision, GigE Vision
Pixel Operabilitytyp. 99.5%GenICam ComplianceYes
Bit Depth8, 10, 12, 14 bit (selectable)Software and User InterfacePleora eBus SDK, Windows GUI
ShutterGlobal Shutter
TriggerExtern TTL via BNC
Integration Time10 µs - 30 ms
Dynamic Range70 dB typ.
ROI-SelectionArray Centered
Binning2x2, 4x4
Non-Uniformity Correction2-Point NUC
Temporal Dark Noise<210 e- rms typ.
Quanteneffizienzs. QE-Curve in Datasheet

* M42 (C-Mount flange-back distance)

Fields of application:

  • Industrial image processing
  • Semiconductor Inspection
  • Surveillance
  • hyperspectral imaging
  • Medical imaging processes
