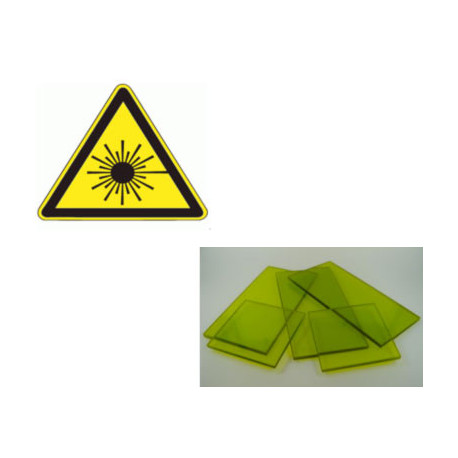

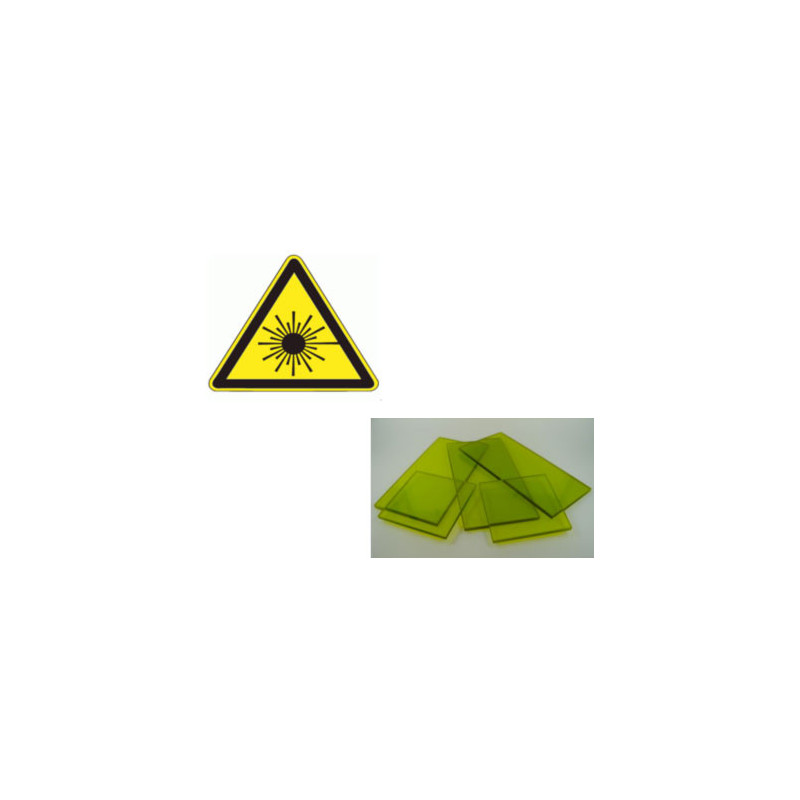

laser protection window

Reference: GLE-Windows

Ideal for laser machines, cabins, laboratories and industry.

Download
Print
Send to a friend
Send to a friend
laser protection window
Ideal for laser machines, cabins, laboratories and industry.
Recipient :
Name ^* :
E-mail ^* :
Kommentar
^* Required fields
or Cancel
Remove this product from my favorite's list.
Add this product to my list of favorites.

Alexandre Besson
Business Unit Director
+33 5 57 10 92 84
a.besson@laser2000.fr

Product request: laser protection windowX

Dear Besson,

I am interested in the following product: laser protection window

I am interested in:

an offer
Information material
a call back and consulting

Please complete at least the mandatory fields marked with *.

* Title:

Academic Degree:

First Name:

* Last Name: * Last Name:

* Company Name: * Company Name:

Company Address:

* Street: * Street:

* Zip Code: * Zip Code:

* City: * City:

* E-Mail: * E-Mail:

* Phone: * Phone:

Text:

* What do you see in picture 2?* What do you see in Picture 2?

laserdiode

Bitte auswählen:Please select: Diode Gauge Safety Goggles Safety Windows

Please check red marked fields.

Your request has been sent successfully. You will be contacted as soon as possible.

Product description

	Description	VLT	OD	EN- 207: 2009	Taille (mm)
1	Nd: YAG Low	Glass Green,Grey 70%		940-970 DIR LB4 >970-1020 DIR LB5 >1020-1400 DIR LB6 >1400-3000 DIR LB4	200 x 100 x 7,2
2	Nd: YAG High	Glass Green, Gray 72%		900-1000 DIR LB5 >1000-1030 DIR LB7 >1030-1400 D LB7 + IR LB8 >1400-2500 DIR LB5>2500-2800 DIR LB4 >2800-3000 DIR LB5 9000-11500 DI LB5	200 x 100 x 6,4 297 x 210 x 6,4
3	Nd: YAG	Polymer Green 63%	805-840 OD>3 841-870 OD>4 871-920 OD>5 921-1064 OD>6	805-840 DIR LB3 >840-870 DIR LB4 >870-920 DIR LB5 >920-1064 D LB5 + IR LB6	600 x 910 x 3 1200 x 910 x 3
4	YAG Fibre	Polymer Green 50%	900-1080 OD7 1081-1100 OD4	Not CE marked	600 x 910 x 3
5	IR-Diode	Polymer Green 22%	900-1080 OD7 1081-1100 OD4	Not CE marked	600 x 910 x 3
6	Argon, KTP	Polymer Orange 37%	200-532 OD 4-5	Not CE marked	600 x 910 x 3 1200 x 910 x 3
7	Nd: YAG and Harmonics, Argon, KTP	Polymer Brown 32%	200-532 OD 4-5 1064nm OD>5	Not CE marked	600 x 910 x 3 1200 x 910 x 3
8	Excimer, CO2	Polymer Clear 90%	190-380nm OD>5 10600nm OD>5	Not CE marked	600 x 910 x 3 1200 x 910 x 3
