Active Laser Safety Window "Glaser Jailer"

Lasermet's Active Laser Safety Window "Glaser Jailer"

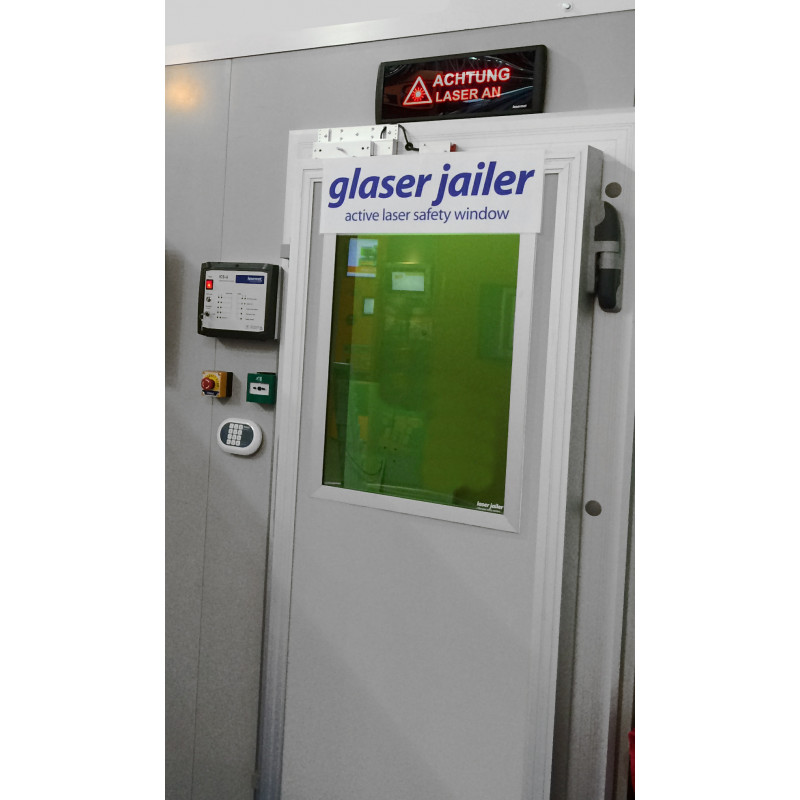

Usually fitted into the panels or doors of the Laser Castle (Laser Safety Cabin), Glaser Jailer (laser safety window) is connected to the interlock control system to enable laser welding operations to be viewed safely from outside the cabin.

This enables multi-kilowatt lasers (up to 10 kW) used for welding, cutting and cladding to be made safe, preventing harm to personnel and preventing damage to surrounding infrastructure. The laser safety window is suitable for all laser powers, wavelengths and waveforms.

Integrated into Lasermet's Laser Jailer active laser guarding system, the laser safety window provides a complete active solution. Currently in operation worldwide, this revolutionary active, patented technology is already tested and proven.

Glaser Jailer laser safety windows are constantly monitored by the interlock control system when the laser is in operation. A direct hit by a powerful laser will cause the window to activate the interlock controller which then turns the laser off. This failsafe technology isolates the laser safety input in less than 50 milli-seconds.

The window should be replaced following a direct hit, but only following an investigation into the cause of the direct hit and when corrective measures have been taken to prevent it happening again.

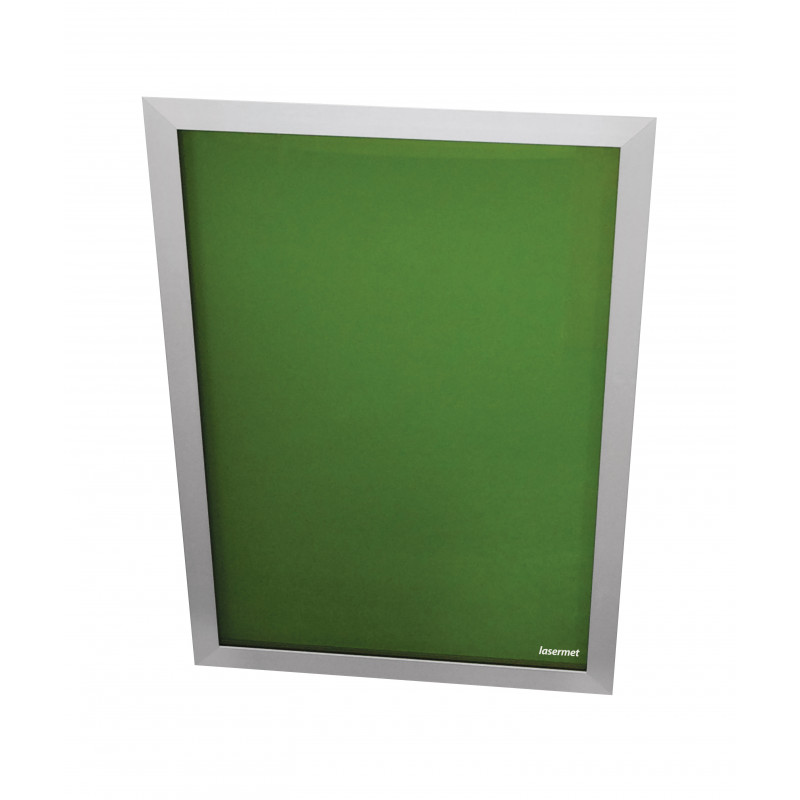

Dimensions of the laser safety window

• Viewing aperture is 50cm x 76cm Approx

Advantages of the laser safety window

• Certified according to EN 60825-4
• Self-monitoring and maintenance-free
• Response time <50 ms
• Suitable for all wavelengths and laser types
• Tested for up to 10 kW

Features of the laser safety window

• Durable and failsafe monitoring of
• Laser Area
• Available sizes (effective field of view):
• 520 mm x 775 m and 185 mm x 170 mm
• Built-in laser protection booth "Laser Castle" or
• Other possible enclosures
