DESCRIPCIÓN DEL PRODUCTO
Analizador frente de ondas: avanzado

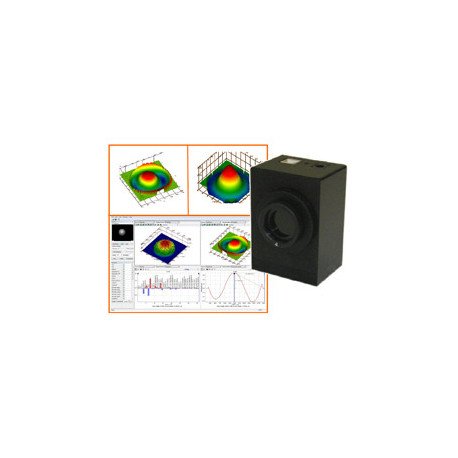

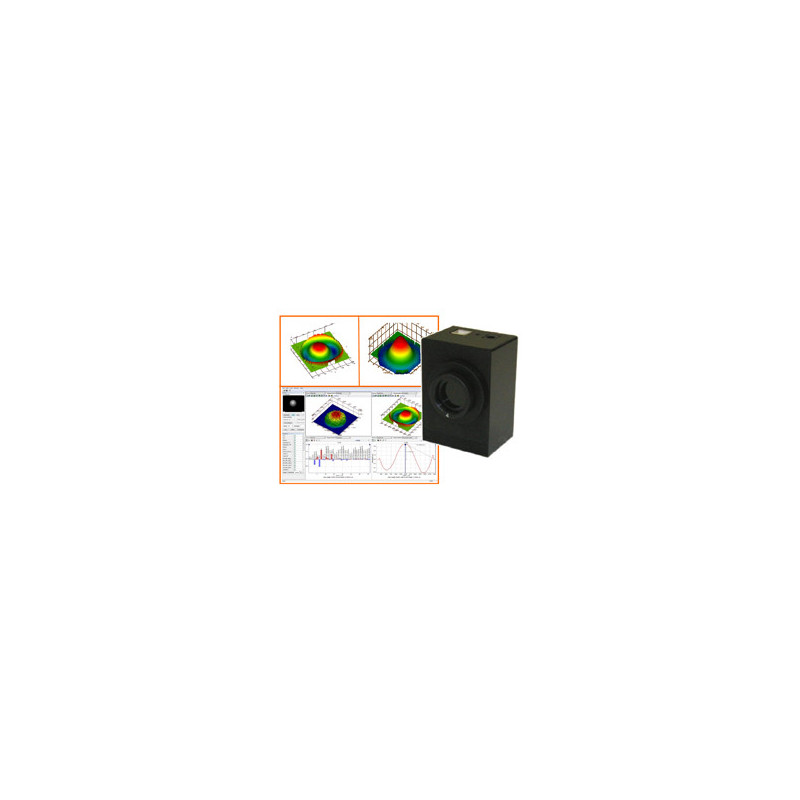

BeamWave® - Analizdor frente de ondas: avanzado

With no moving parts or additional accessories, BeamWave® performs real-time measurements of all critical laser beam characteristics including intensity distribution, wavefront and beam propagation parameters.
Thanks to its capability to measure simultaneously intensity and phase data at ultra high resolution, beam shape and intensity distribution can be measured at any distance from the device's measurement location without moving parts. All critical data for laser beam monitoring such as power distribution and beam propagation parameters can be measured without additional tools.
BeamWave® provides high resolution wavefront data which allow laser beam analysis in its all dimensions. From the wavefront data, Zernike analysis is performed; beam's astigmatism, other low and high order aberrations can precisely measured.
BeamWave® provides comprehensive one-shot measurements of the laser beam: beam propagation parameters such as M?, divergence, tilt, Raileigh range, beam power characteristics in any XY plane along the propagation direction of the beam, thus providing an instant picture of laser beam behavior along the propagation axis.

Typical Applications
  • Laser Beam & Wavefront Profiling
  • Beam Propagation Analysis
  • Beam shaping & beam monitoring


Key Advantages
  • Wavefront sensor, beam propagation parameters & power measurement in one device
  • High spatial resolution for both intensity and wavefront measurements
  • One shot M? measurement without additional accessories or moving parts
  • Instant beam propagation analysis, power measurement in any plane

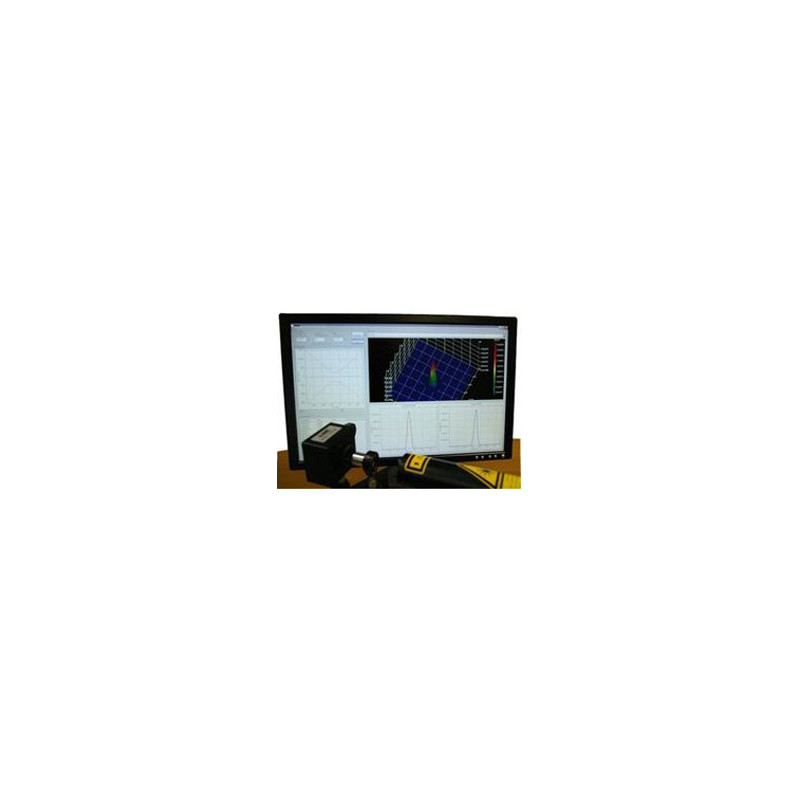

  • Laser beam monitoring with real time display of intensity, wavefront, PSF
  • Compact & light beam profiler for pulsed & CW lasers
  • Custom solutions for UV, NIR & FIR wavelength range


Capabilities
  • Acquisition
  • Automatic calibration & acquisition
  • Live display of camera image
  • Live display of 2D and 3D intensity & wavefront
  • Measurement & Analysis
  • Wavefront measurement
  • Real-time Zernike display and analysis
  • Selective measurement of tilt, focus, astigmatism, coma, spherical and other HOAs
  • Modulation Transfer Function (MTF)
  • Point Spread Function(PSF)
  • Strehl ratio
  • Residual wavefront from reference or best fit
  • Residual wavefront from theoretical data
  • Profiles of wavefront and intensity
  • Pass/Fail analysis
  • Data Export
  • Wavefront and Zernike data in user-defined formats
  • Report Editor
  • HTML Compatible Presentation



Si necesita un sensor/medidor de potencia láser no olvide visitar nuestras páginas dedicadas a esos productos


Analizador frente de ondas: avanzado

Downloads - Analizador frente de ondas: avanzado

PhaseView_BeamWave_1500

Hoja de datos Phaseview Powerful Wavefront Analyzer & Smart Beam Profiler

Descargar (312.17k)
PhaseView_BeamWave_500-1000

Hoja de datos Phaseview High Resolution CCD Beam Profiler 500-1000

Descargar (362.13k)
