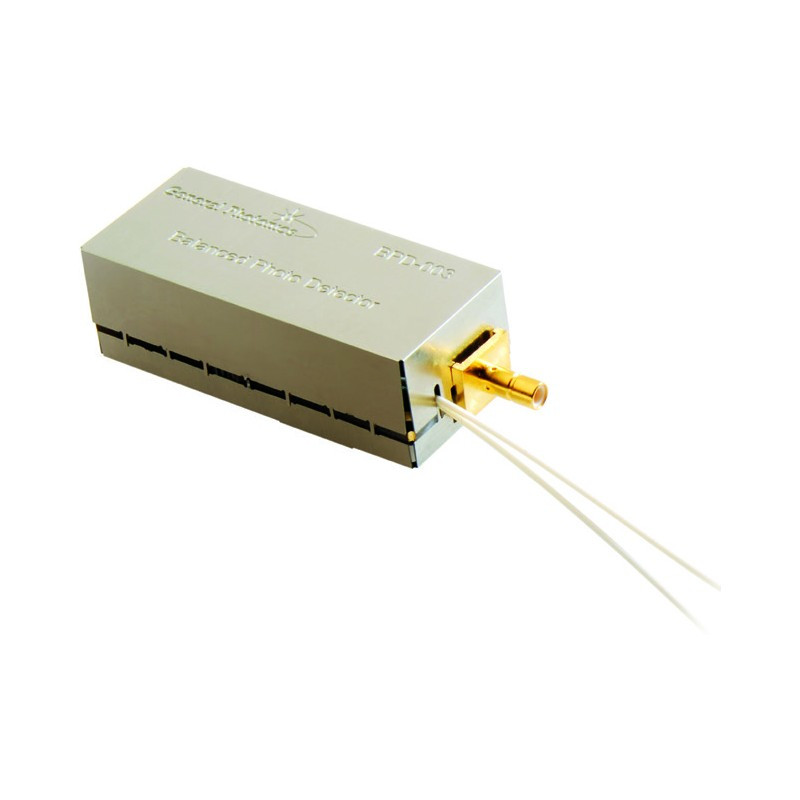

OEM Balanced Detector

Reference: GPC-BPD-003

OCT and sensor systems require high performance balanced photodetectors to boost system signal to noise ratio. The BPD-003 is specially designed for OEM applications in such fields, engineered for low cost and small size as well as high performance.

Print
Send to a friend
Send to a friend
OEM Balanced Detector
OCT and sensor systems require high performance balanced photodetectors to boost system signal to noise ratio. The BPD-003 is specially designed for OEM applications in such fields, engineered for low cost and small size as well as high performance.
Recipient :
Name ^* :
E-mail ^* :
Kommentar
^* Required fields
or Cancel
Remove this product from my favorite's list.
Add this product to my list of favorites.

Alexandre Besson
Business Unit Director
+33 5 57 10 92 84
a.besson@laser2000.fr

Product request: OEM Balanced DetectorX

Dear Besson,

I am interested in the following product: OEM Balanced Detector

I am interested in:

an offer
Information material
a call back and consulting

Please complete at least the mandatory fields marked with *.

* Title:

Academic Degree:

First Name:

* Last Name: * Last Name:

* Company Name: * Company Name:

Company Address:

* Street: * Street:

* Zip Code: * Zip Code:

* City: * City:

* E-Mail: * E-Mail:

* Phone: * Phone:

Text:

* What do you see in picture 2?* What do you see in Picture 2?

laserdiode

Bitte auswählen:Please select: Diode Gauge Safety Goggles Safety Windows

Please check red marked fields.

Your request has been sent successfully. You will be contacted as soon as possible.

Product description

OEM Balanced Detector

The device consists of an optical head and a post-amplification board with a SMA or SMB RF output. The optical head has two input fibers aligned with a pair of balanced photodetectors, followed by an integrated ultra low noise transimpedance amplifier (TIA) placed immediately after the photodetectors to amplify received signals with low noise and enhanced CMRR. The post-amplification circuit further conditions and amplifies the signal to a range of ±3.5 V maximum. With a bandwidth of up to 200 MHz and a high conversion gain, the BPD-003 is ideal for integration into OCT, fiber sensor and high performance optical measurement systems.

Features:
