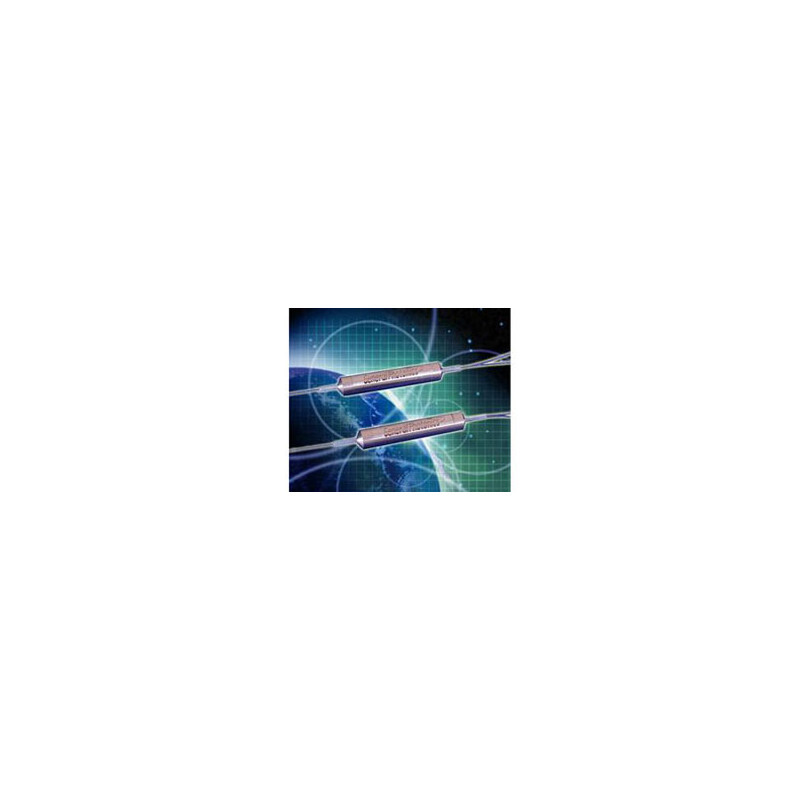

Polarization Maintaining Coupler

Reference: GPC-PMC-001

The polarization maintaining filter coupler can either split the light from an input PM fiber between 2 output PM fibers, or can combine light signals from 2 PM input fibers into a single PM output fiber.

Print
Send to a friend
Send to a friend
Polarization Maintaining Coupler
The polarization maintaining filter coupler can either split the light from an input PM fiber between 2 output PM fibers, or can combine light signals from 2 PM input fibers into a single PM output fiber.
Recipient :
Name ^* :
E-mail ^* :
Kommentar
^* Required fields
or Cancel
Remove this product from my favorite's list.
Add this product to my list of favorites.

Alexandre Besson
Business Unit Director
+33 5 57 10 92 84
a.besson@laser2000.fr

Product request: Polarization Maintaining CouplerX

Dear Besson,

I am interested in the following product: Polarization Maintaining Coupler

I am interested in:

an offer
Information material
a call back and consulting

Please complete at least the mandatory fields marked with *.

* Title:

Academic Degree:

First Name:

* Last Name: * Last Name:

* Company Name: * Company Name:

Company Address:

* Street: * Street:

* Zip Code: * Zip Code:

* City: * City:

* E-Mail: * E-Mail:

* Phone: * Phone:

Text:

* What do you see in picture 2?* What do you see in Picture 2?

laserdiode

Bitte auswählen:Please select: Diode Gauge Safety Goggles Safety Windows

Please check red marked fields.

Your request has been sent successfully. You will be contacted as soon as possible.

Product description

Polarization Maintaining Coupler from General Photonics

The polarization maintaining filter coupler can either split the light from an input PM fiber between 2 output PM fibers, or can combine light signals from 2 PM input fibers into a single PM output fiber. The device can be used to split high power linearly polarized light into multiple paths without perturbing the linear state of polarization (SOP). It can also be used as a power tap to monitor signal power in a PM fiber system without disturbing the linear SOP of the light propagating in the PM fiber. Applications include PM fiber interferometers, power sharing in polarization sensitive systems, and signal monitoring in PM fiber systems. The rugged stainless steel package is designed for high optical performance and stability. This compact device offers low excess loss, low back reflection, and high extinction ratio. Split ratios from 1 to 50 % are available.

Features of the Polarization Maintaining Coupler

Compact size
Low insertion loss
Low back reflection
Rugged design

Applications of the Polarization Maintaining Coupler

Power sharing in PM systems
Power monitoring in PM systems
PM fiber interferometers
R&D laboratories

Specifications of the Polarization Maintaining Coupler

Wavelength	1310 nm or 1550 nm		1064 nm
Bandwidth	±40 nm		±20 nm
Port Configuration	1 x 2	2 x 2	1 x 2	2 x 2
Excess Loss1	0.7 dB	1.0 dB	0.8 dB	1.2 dB
Uniformity (max.)	0.6 dB	0.8 dB	0.6 dB	0.8 dB
Extinction Ratio2	20 dB	18 dB	20 dB	18 dB
Return Loss	50 dB
Split Ratio	1 ~ 50 %
Optical Power Handling	< 300 mW
Operating Temperature	-5 to 70 ?C
Storage Temperature	-40 to 85 ?C
Fiber Type	PM Panda
Dimensions	Pigtailed: Ø 5.5 × 35 mm NoTail: 3.5 (L) × 1.5 (W) × 5/8 (H)
