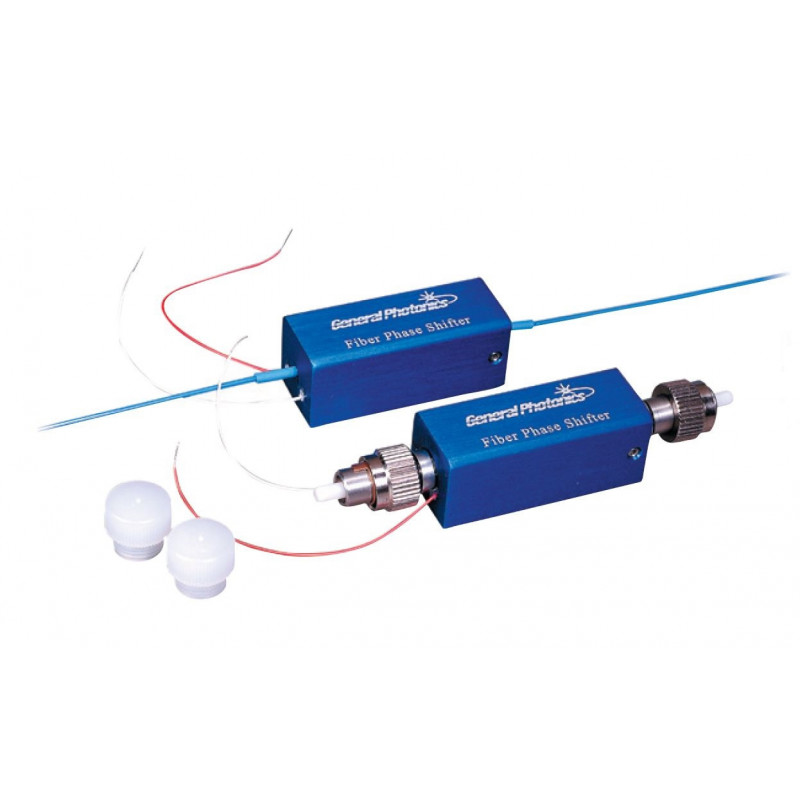

Fiber Phase Shifter - FPS-001 View larger

Fiber Phase Shifter - FPS-001

Reference: GPC-FPS-001






Alexandre Besson
Business Unit Director
+33 5 57 10 92 84
a.besson@laser2000.fr
Product request: Fiber Phase Shifter - FPS-001X



Dear Besson,

I am interested in the following product: Fiber Phase Shifter - FPS-001


I am interested in:

an offer
Information material
a call back and consulting
Please complete at least the mandatory fields marked with *.



* Title:

Academic Degree:

First Name:

* Last Name: * Last Name:

* Company Name: * Company Name:

Company Address:

* Street: * Street:

* Zip Code: * Zip Code:

* City: * City:


* E-Mail: * E-Mail:

* Phone: * Phone:

Text:




* What do you see in picture 2?* What do you see in Picture 2?

laserdiode laserschutzbrille laserschutzfenster leistungsmessgerät


Bitte auswählen:Please select:    Diode    Gauge    Safety Goggles    Safety Windows



Please check red marked fields.




Your request has been sent successfully. You will be contacted as soon as possible.





Product description
Fiber Phase Shifter

The all fiber phase shifter/modulator provides phase shifts up to 15? from DC to 20 kHz. The all fiber construction practically eliminates insertion loss and back reflection. This compact device is ideal for fiber laser systems, fiber resonators, and fiber interferometers for precision phase tuning or phase modulation.


Applications
  • Fiber interferometer systems
  • Fiber laser systems
  • Fiber sensor systems



Specifications

Insertion Loss:< 0,1 dB
Operating Wavelength:
970 - 1650 nm
Total Phase Shifter (dc-20kHz):8 PI bis 15 PI
Half-wave Voltage (dc-20kHz):
10 - 20 V
Return Loss:> 65dB
PDL:
< 0,05 dB
Residual Amplitude Modulation:+/- 0,01 dB
Max. Applied Voltage:
150V
Operating Temperature:0 - 50°C

Downloads - Fiber Phase Shifter - FPS-001

GPC-FPS-001-6-5-15a.pdf

Data sheet: Fiber Phase Shifter

Download (1.05M)
