Product description

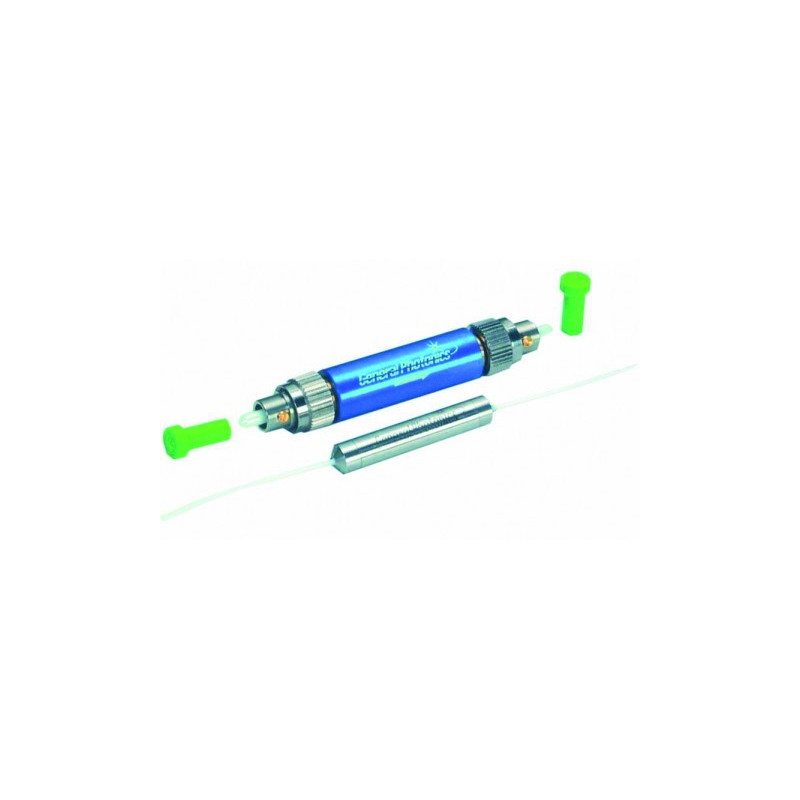

Multimode Isolator

The ISO Multimode Polarization Insensitive Isolator features low insertion loss, high isolation, high return loss and excellent stability and reliability in a compact package. It is ideal for suppressing back reflection and backscattering in fiber lasers and other high performance laser based fiber optic systems.


Applications
  • Fiber optic amplifier
  • WDM systems
  • Transmitters and fiber lasers
  • R&D laboratories



Specifications

Center Wavelength1310 or 1550 nm
Operating Bandwidth± 20 nm
Typical Peak Isolation50 dB
Min. Isolation at 23°C42 dB
Insertion Loss (Typical) at 23°C0.5 dB
Insertion Loss (Max.) (-5 to 70°C)0.6 dB
Min. Return Loss (Input/Output)40/40 dB
Max. TDL0.15 dB
Optical Power Handling300 mW
Max. Tensile Load5 N
Operating Temperature-5 ~ 70 °C
Storage Temperature-40 ~ 85 °C
Fiber TypeMultimode fiber 62.5/125/250 or 50/125/250 µm
DimensionsØ 5.5 x 62 mm
