Espectrómetro para colorimetría: alta gama

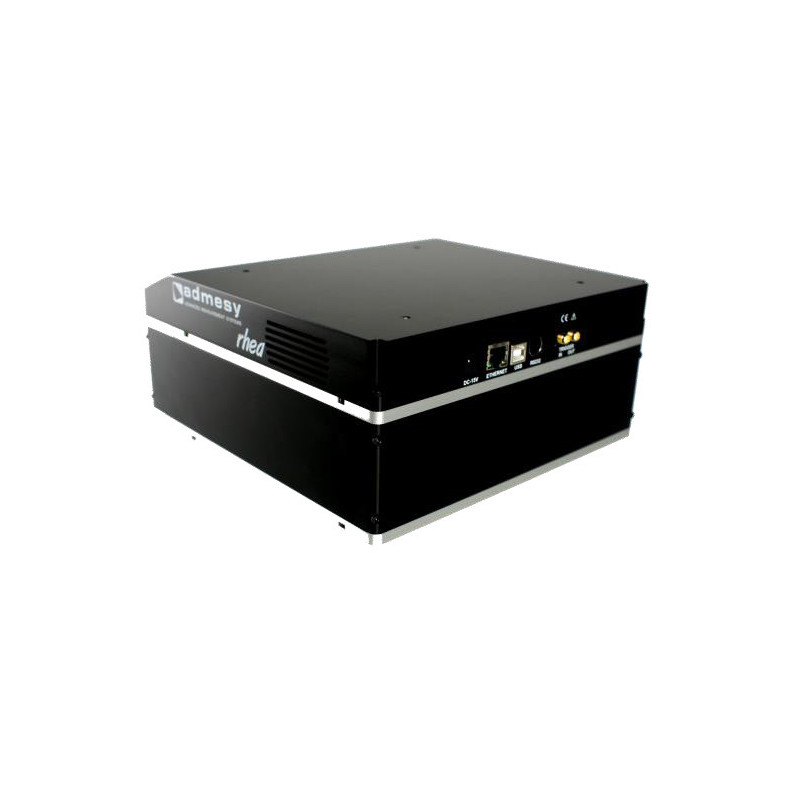

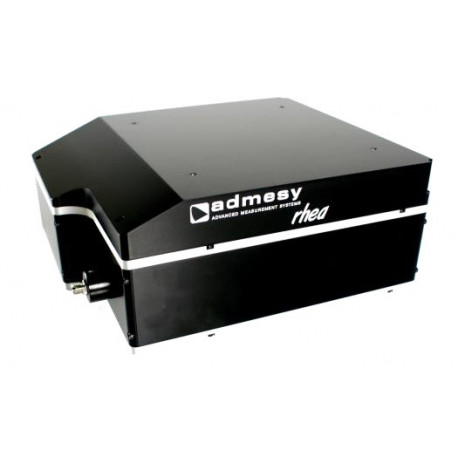

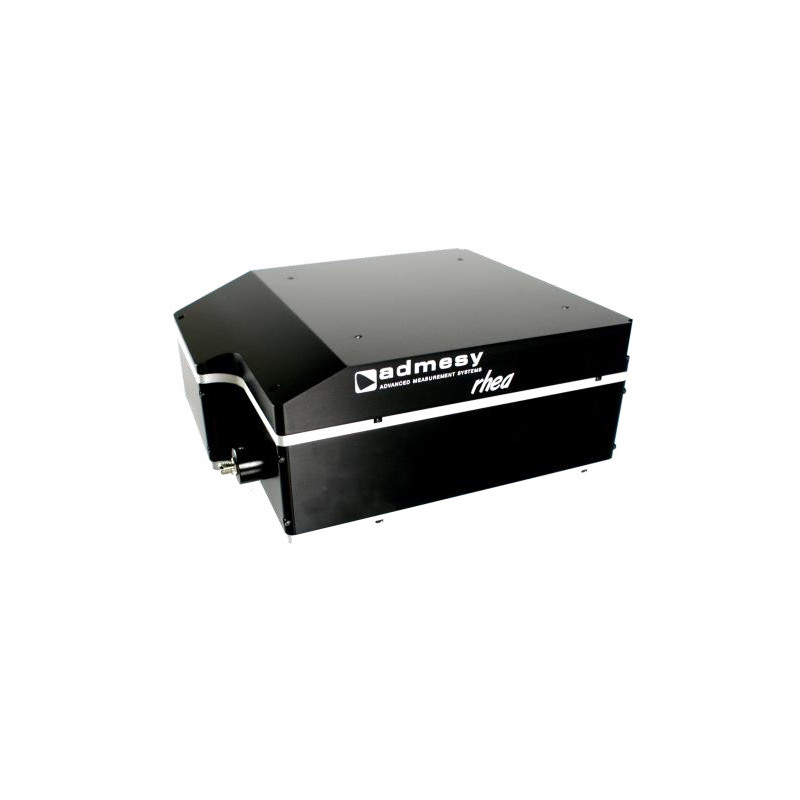

Rhea series: high end spectrometer

The Rhea series spectrometer offers a unique combination of ease of use and accurate measurement capabilities packed in a robust jacket. The Rhea utilizes a high-end cooled CCD detector for low noise and high dynamic range. The Neutral density filter wheel extends this dynamic range and also adds a shutter function. An ideal device for measurements where ease of use, stability, performance and price are of the essence.

Highlights

• Various standard spectral ranges including UV, VIS and NIR, custom spectral options range from 200 - 1100
• Cooled high-end CCD detector, cooled to -10 degrees Celsius
• High optical throughput design
• Neutral density filter wheel for huge dynamic range
• Shutter function
• Low noise
• Auto-range function
• Wavelength calibrated
• Very low stray light
• Excellent linearity, internally compensated within %
• Dark current compensated, virtually zero over entire integration range
• USBTMC compliant, SCPI command set, high speed device
• USB, RS232, Ethernet connections and trigger in & out for ideal system integration
• All calculations are carried out inside the device, saving processing power in production environments
• Robust housing, optimized for mounting and protection in harsh production environments

Specifications
