Colorímetro y espectrómetro en uno

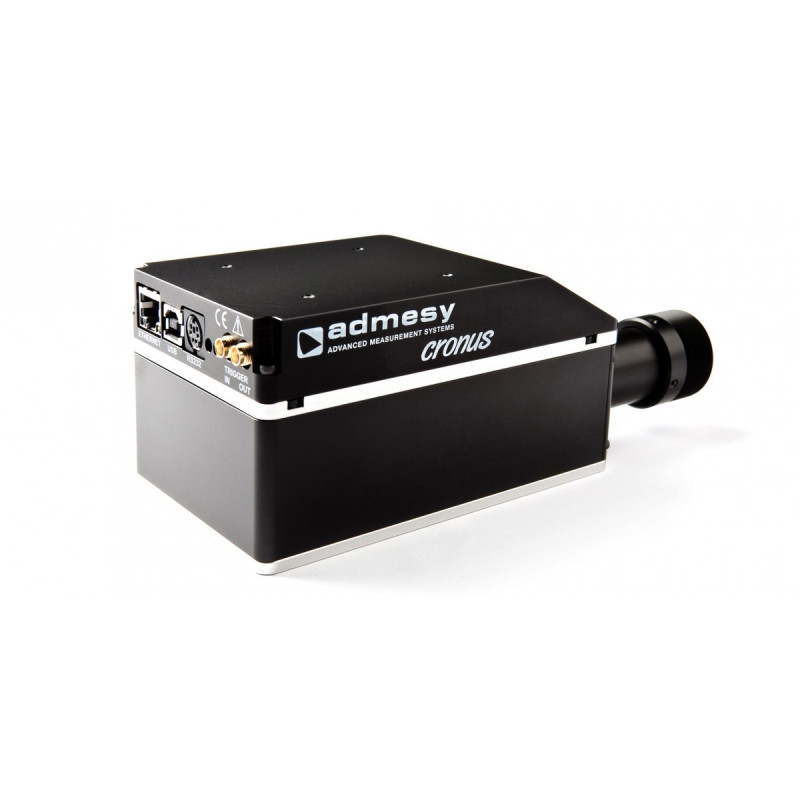

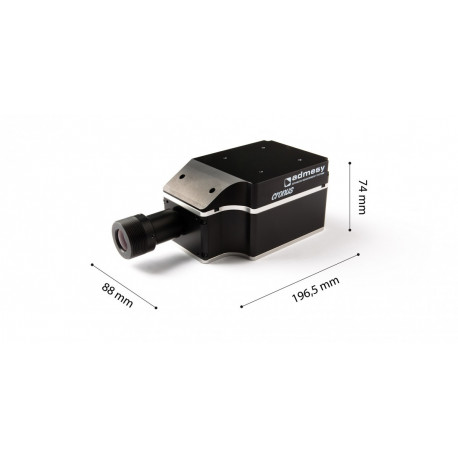

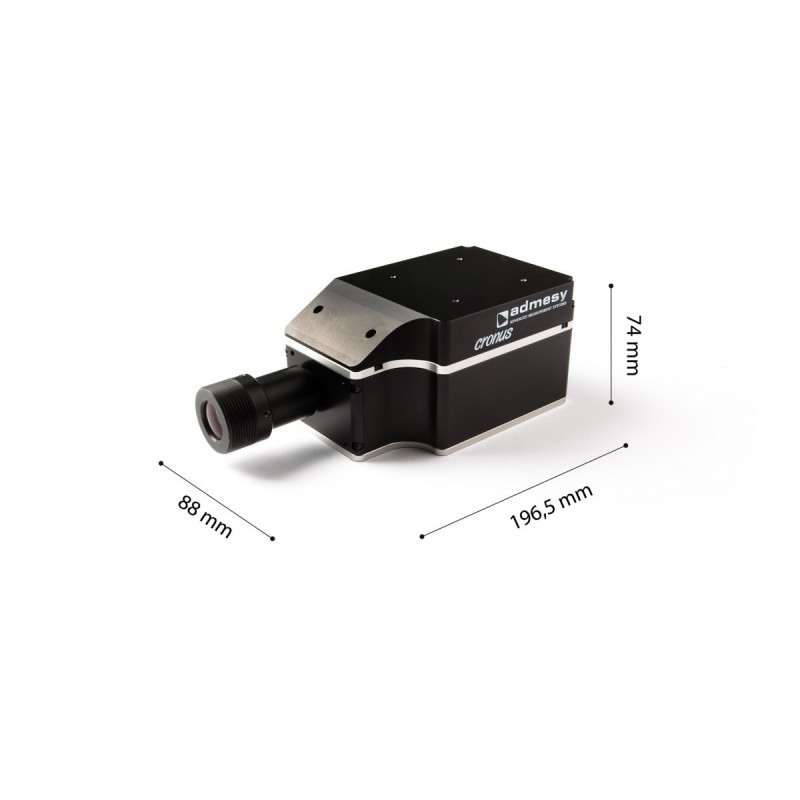

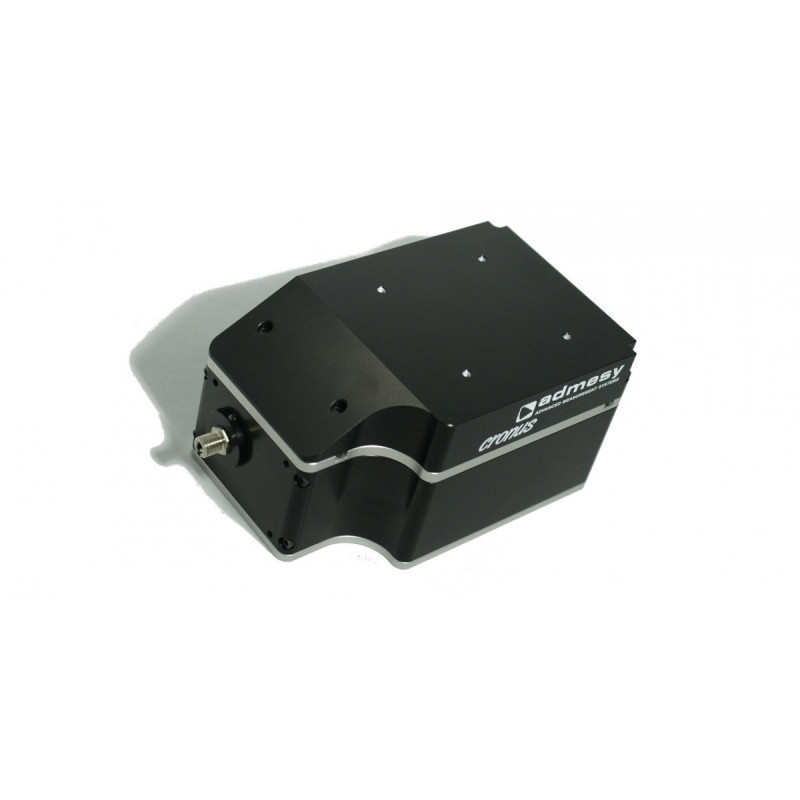

Spectro-Colorimeter Cronus from Admesy

The Cronus is world’s first spectro-colorimeter combining a VIS spectrometer with a tri-stimulus colorimeter. This unique combination allows the user to choose between detailed spectral information of the spectrometer and high speed colour, light and flicker measurements of the colorimeter. The spectro-colorimeter Cronus is well suited for lighting and display applications where both speed and accuracy is needed. The spectro-colorimeter Cronus is available in a fiber, lens and cosine corrector version. Just as other Admesy products it is developed with industrial use in mind combining measurement excellence with ease of use, minimal calibration needs in a compact and robust design. The spectro-colorimeter Cronus offers high end laboratory results with a workforce attitude.

Highlights of the spectro-colorimeter

• Combination of spectrometer and colorimeter
• LED, lighting and display measurement device
• Measures xy, CRI, CCT, luminance, spectrum, flicker
• Up to 50.000 luminance samples per second
• Spectral range 380 - 780 nm
• Fiber, lens or cosine corrector configuration
• Autorange function
• Mechanical shutter
• Excellent linearity
• Dark current compensated
• Numerous interfaces (USB, RS232, Ethernet), ideal for system integration
• USBTMC compliant, SCPI command set, high speed device
• All calculations are done inside

Specifications of the spectro-colorimeter

Spectral measurement system

Colorimeter measurement system

System configurations
