Spectro- and Highspeed-Colorimeter

Reference: ADM-Cronus

The Cronus from Admesy is world’s first spectro-colorimeter combining a VIS spectrometer with a tri-stimulus colorimeter. It combines peak wavelength measurements, color temperature and high-speed flicker during a single test.






Alexandre Besson
Business Unit Director
+33 5 57 10 92 84
a.besson@laser2000.fr
Product request: Spectro- and Highspeed-ColorimeterX



Dear Besson,

I am interested in the following product: Spectro- and Highspeed-Colorimeter


I am interested in:

an offer
Information material
a call back and consulting
Please complete at least the mandatory fields marked with *.



* Title:

Academic Degree:

First Name:

* Last Name: * Last Name:

* Company Name: * Company Name:

Company Address:

* Street: * Street:

* Zip Code: * Zip Code:

* City: * City:


* E-Mail: * E-Mail:

* Phone: * Phone:

Text:




* What do you see in picture 2?* What do you see in Picture 2?

laserdiode laserschutzbrille laserschutzfenster leistungsmessgerät


Bitte auswählen:Please select:    Diode    Gauge    Safety Goggles    Safety Windows



Please check red marked fields.




Your request has been sent successfully. You will be contacted as soon as possible.





Product description

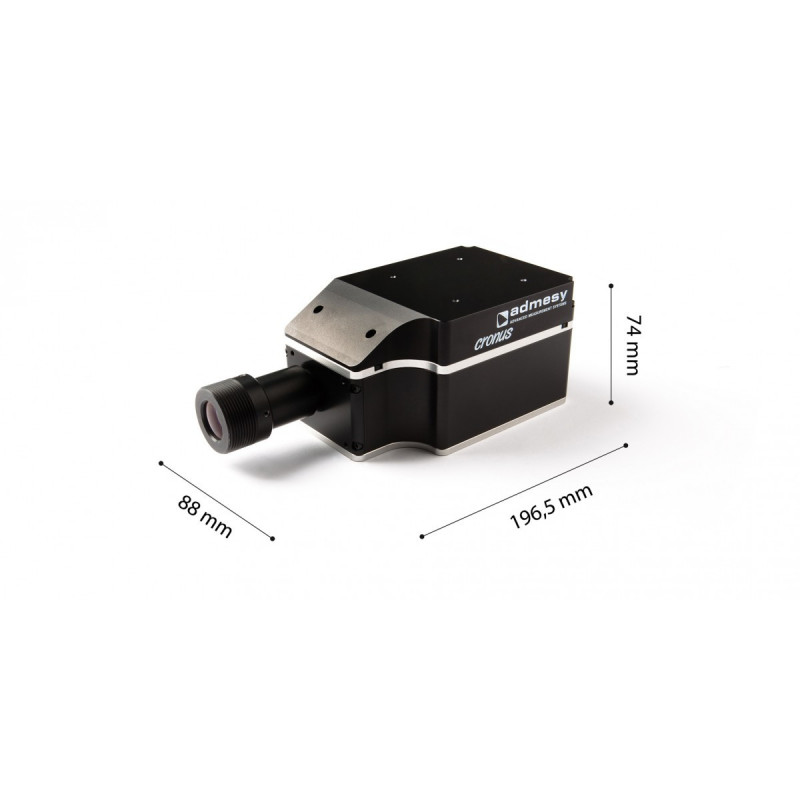

Spectro-Colorimeter Cronus from Admesy

The Cronus is world’s first spectro-colorimeter combining a VIS spectrometer with a tri-stimulus colorimeter. This unique combination allows the user to choose between detailed spectral information of the spectrometer and high speed colour, light and flicker measurements of the colorimeter. The spectro-colorimeter Cronus is well suited for lighting and display applications where both speed and accuracy is needed. The spectro-colorimeter Cronus is available in a fiber, lens and cosine corrector version. Just as other Admesy products it is developed with industrial use in mind combining measurement excellence with ease of use, minimal calibration needs in a compact and robust design. The spectro-colorimeter Cronus offers high end laboratory results with a workforce attitude.

Highlights of the spectro-colorimeter

  • Combination of spectrometer and colorimeter
  • LED, lighting and display measurement device
  • Measures xy, CRI, CCT, luminance, spectrum, flicker
  • Up to 50.000 luminance samples per second
  • Spectral range 380 - 780 nm
  • Fiber, lens or cosine corrector configuration
  • Autorange function
  • Mechanical shutter
  • Excellent linearity
  • Dark current compensated
  • Numerous interfaces (USB, RS232, Ethernet), ideal for system integration
  • USBTMC compliant, SCPI command set, high speed device
  • All calculations are done inside

Specifications of the spectro-colorimeter

Spectral measurement system

Spectral range

380 - 780 nm

Optical resolution (FWHM)

2.3 nm

Integration time

2.5 ms - 20 s

Stray light

<0.03 %

Non - Linearity

<1 %



Colorimeter measurement system

Photo detector

Silicon photo diode using XYZ interference filters

Spectral response

Approximates CIE 1931 colour matching functions

Integration time

1ms – 7s

Flicker measurement speed

Luminance at 22000samples / second


System configurations

Working distance versus

spot size 20mm

50 mm

100 mm

150 mm

22 mm

24,5 mm

27 mm

Acceptance angle

+/- 2.1 degrees

Interfaces

High speed USB, RS232, Ethernet, Trigger connections

Weight

1200 gram

Size (HxWxD)

137 x 88 x 74mm (without lens system)

Shutter lifetime

>1000000

Shutter speed

70 ms - 120 ms (close or open time, depending on temperature and lifetime)

Operating temperature

10 - 35 °C

Power consumption

1750 mW (USB powered)

Admesy company introduction from Steven Goetstouwers on Vimeo.

Downloads - Spectro- and Highspeed-Colorimeter

ADM-CronusDisplaySpecification

Data sheet: Cronus Display Specification

Download (2.22M)
ADM-CronusLEDSpecification

Data sheet: Cronus LED Specification

Download (2.66M)
