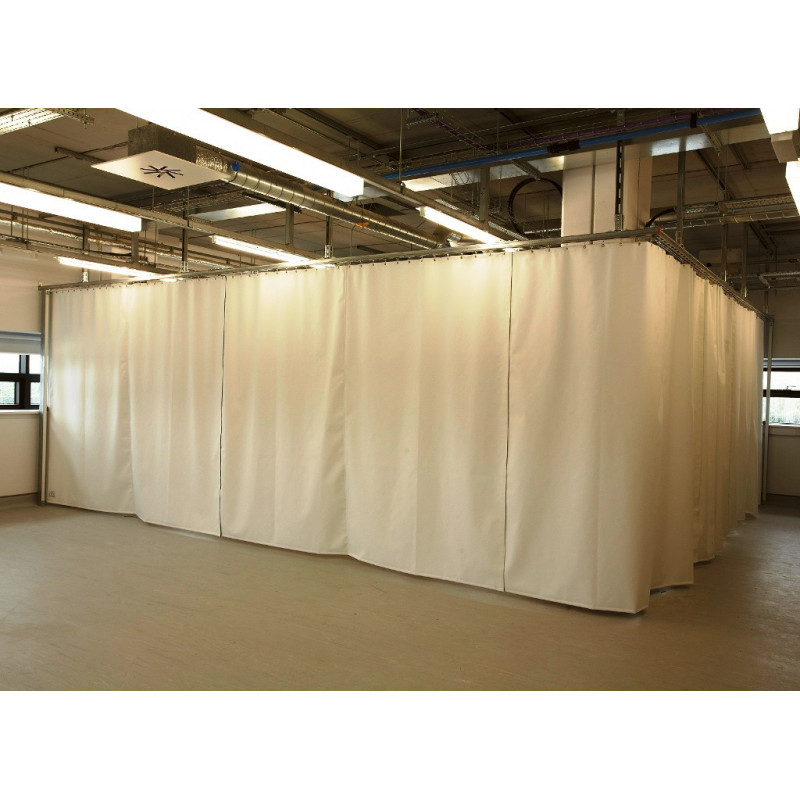

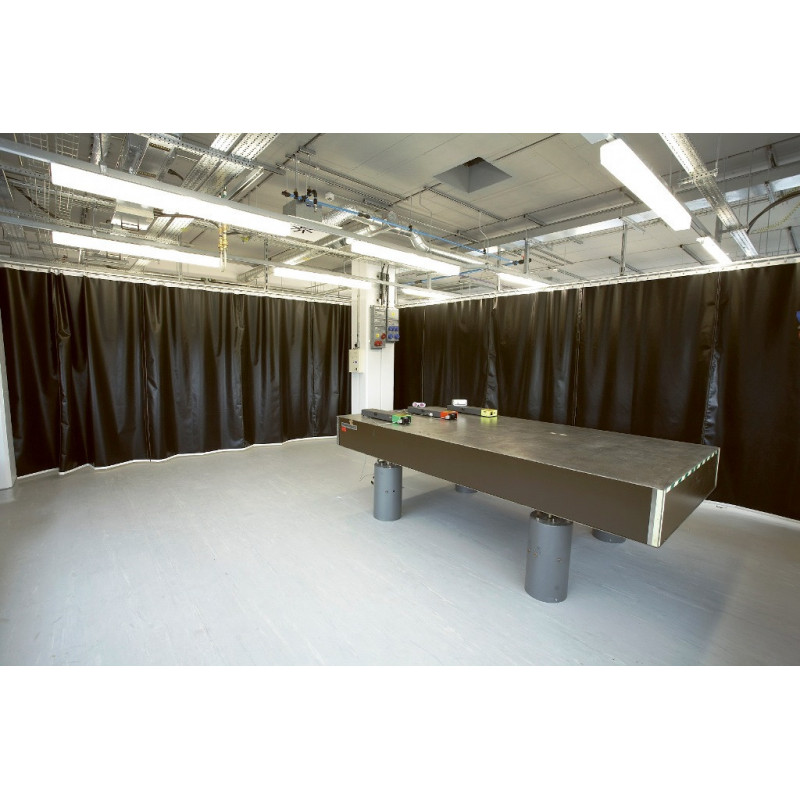

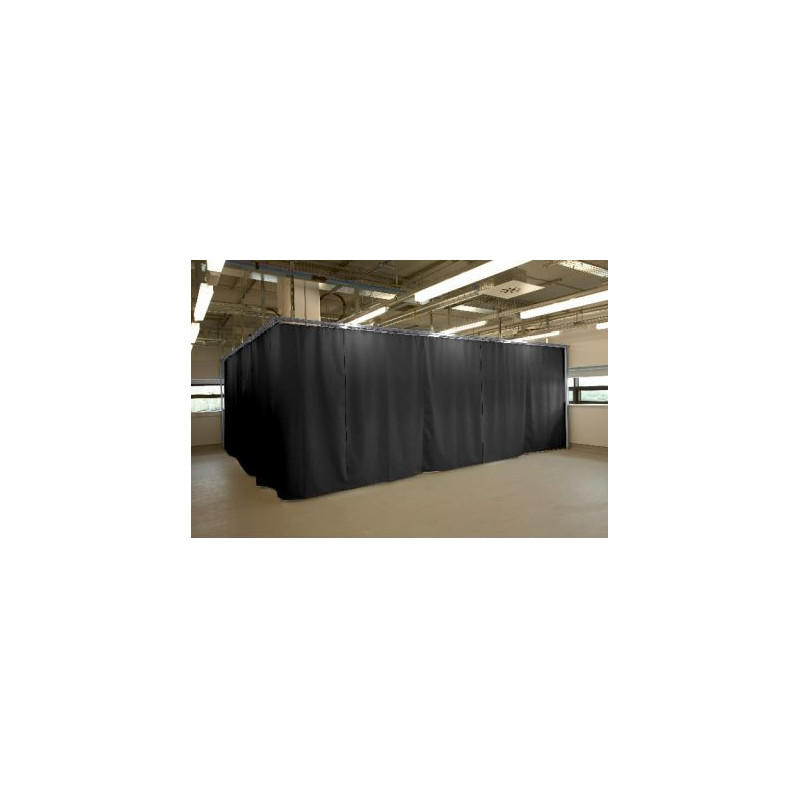

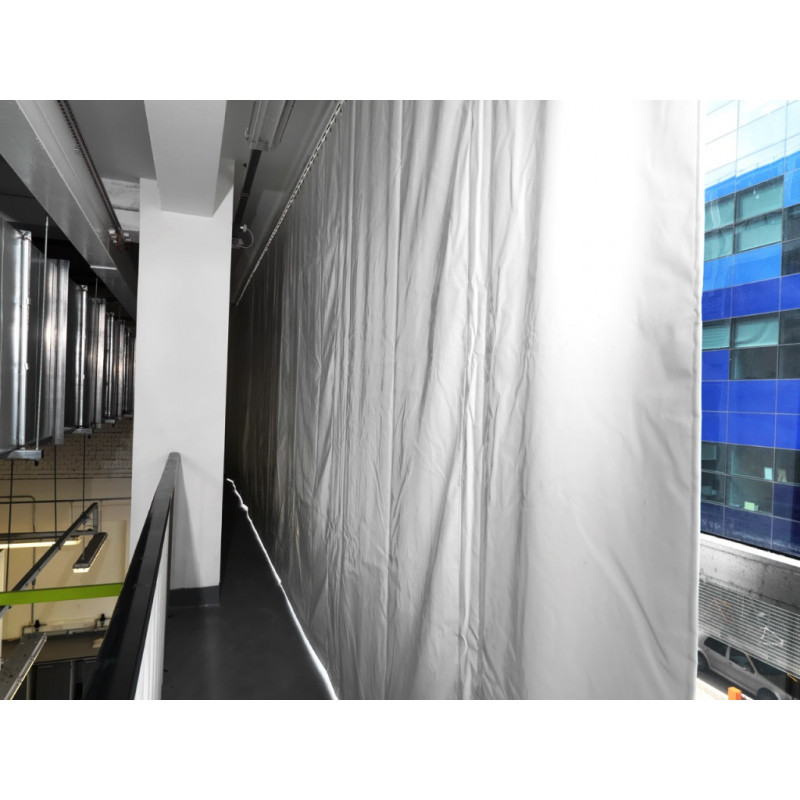

Laser-Blocking Curtains

Reference: LMT-LC-Orca

The Lasermet laser protective curtains are suitable for all laser and wavelength and thus provide the necessary level of protection in the field of variable laser safety curtains.

Print
Send to a friend
Send to a friend
Laser-Blocking Curtains
The Lasermet laser protective curtains are suitable for all laser and wavelength and thus provide the necessary level of protection in the field of variable laser safety curtains.
Recipient :
Name ^* :
E-mail ^* :
Kommentar
^* Required fields
or Cancel
Remove this product from my favorite's list.
Add this product to my list of favorites.

Alexandre Besson
Business Unit Director
+33 5 57 10 92 84
a.besson@laser2000.fr

Product request: Laser-Blocking CurtainsX

Dear Besson,

I am interested in the following product: Laser-Blocking Curtains

I am interested in:

an offer
Information material
a call back and consulting

Please complete at least the mandatory fields marked with *.

* Title:

Academic Degree:

First Name:

* Last Name: * Last Name:

* Company Name: * Company Name:

Company Address:

* Street: * Street:

* Zip Code: * Zip Code:

* City: * City:

* E-Mail: * E-Mail:

* Phone: * Phone:

Text:

* What do you see in picture 2?* What do you see in Picture 2?

laserdiode

Bitte auswählen:Please select: Diode Gauge Safety Goggles Safety Windows

Please check red marked fields.

Your request has been sent successfully. You will be contacted as soon as possible.

Product description

Laser-Blocking Curtains

From a width of 4.35 m two or more curtains are connected with strong velcro fastening with each other. With it there is no size which we cannot deliver. The material is fireproof. When irradiated with greater than 0.5 MW/m2 it will emit a non-hazardous smoke and may glow, thus indicating that a stray beam is present. Protection times given by the material at various power densities are shown in the specifications below. One side is in WHITE and the other one in BLACK.

Smaller cuttings please specify with order - the cutting are free of charge*

*On this occasion, it must be considered that with a specific cutting the next bigger width is calculated

Velcro fastening

Right and Left on the Curtains
White Side: soft Velcro fastening
Black Side: catch Velcro fastening
Customised fixing are possibly

Irradiated Area of the laser-blocking curtains

Irradiated Area	PEL (T3) 10 s	PEL (T2) 100 s
4 mm²	3,9 MW/m²	2,2 MW/m²
2.000 mm²	0,62 MW/m²	0,7 MW/m²

Available dimensions of the laser-blocking curtains

Model	Width (m)	Height (m)
LMT-LC	0.7	0.5
	1.45	1
	2.15	1.5
	2.9	2
	3.6	2.5
	4.35	3
	5.05	3.5
	5.8	4

Example: LMT-LC-4.35-0.5 Laser-Blocking Curtain with size 4,35 m x 0,5 m (Width x Height)

All curtains are certificated to CE after the norm EN 60825-4 (security for class 4 laser products: Laser protection products)
