Product description

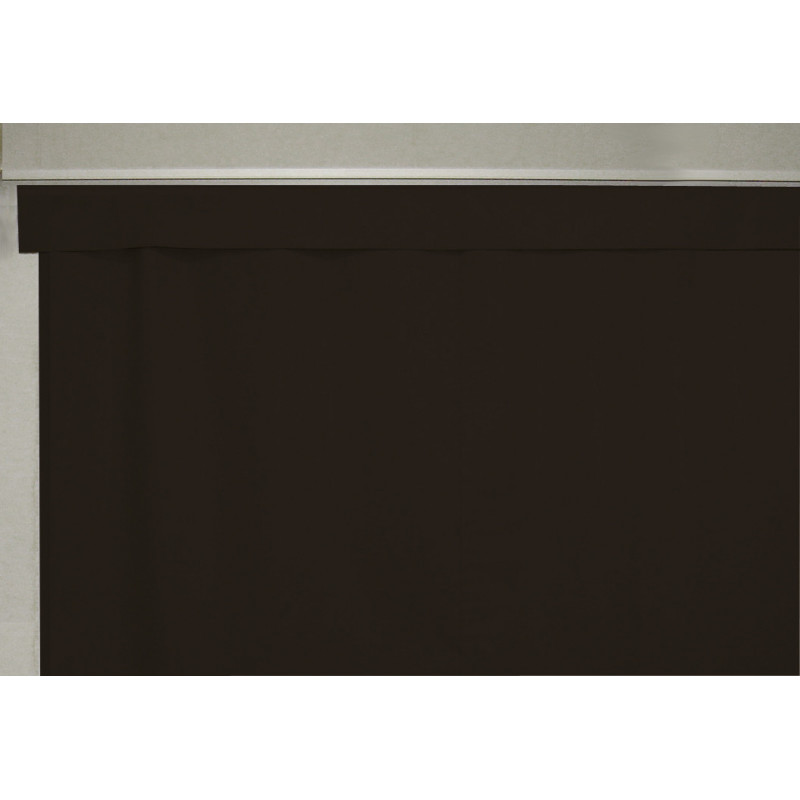

Lasermet´s Laser Safety Curtain Blackcat

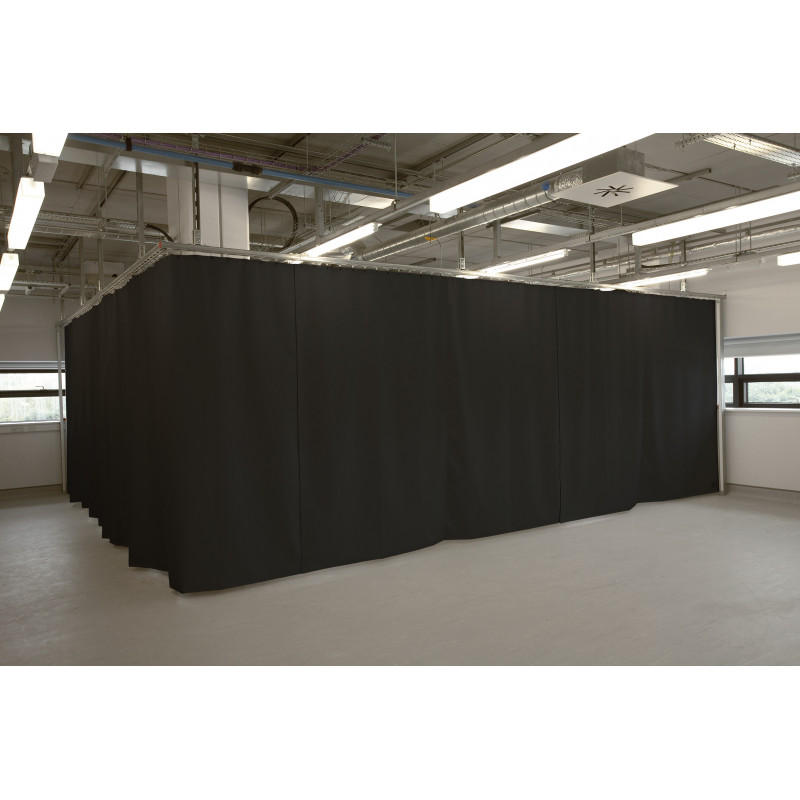

Lasermet's Blackcat Laser Safety Curtains are manufactured from a specially developed laser-blocking material and can be supplied ready-made as ceiling or wall-mounted curtains. The dark grey material will operate as a blackout curtain as well as a laser blocking curtain.


Ideal for use with Class 3B and expanded Class 4 lasers, the material is also fireproof. Protection times given by the material at various power densities are shown in the specifications below.


The top of the curtains have eyelets to support the curtain. They are also supplied with hooks to connect to a curtain track.


The weight of the material is 900 g/sqm. Heavy duty curtain tracks can be supplied for smooth operation and for applications where the curtain needs to be suspended below the fixing points, high-quality cubicle curtain track is available.

PEL - Permissible Exposure Limits

Irradiated Area

PEL (T3) 10s

 PEL (T2) 100s

4 mm2

248 kW/m2

140 kW/m2

2000 mm2

124 kW/m2

70 kW/m2

Specifications of the Laser safety curtain Blackcat

  • Curtain weight 900 g/m²
  • Eyelets and hooks at the top edge of metal
  • Both sides black
  • Low cost
  • Suitable for clean rooms
For information about other products from the category "Laser Safety" please click here.


Downloads - Laser safety curtain Blackcat


Data sheet Lasermet Blackcat Laser safety curtain

Download (1.32M)
