Product description

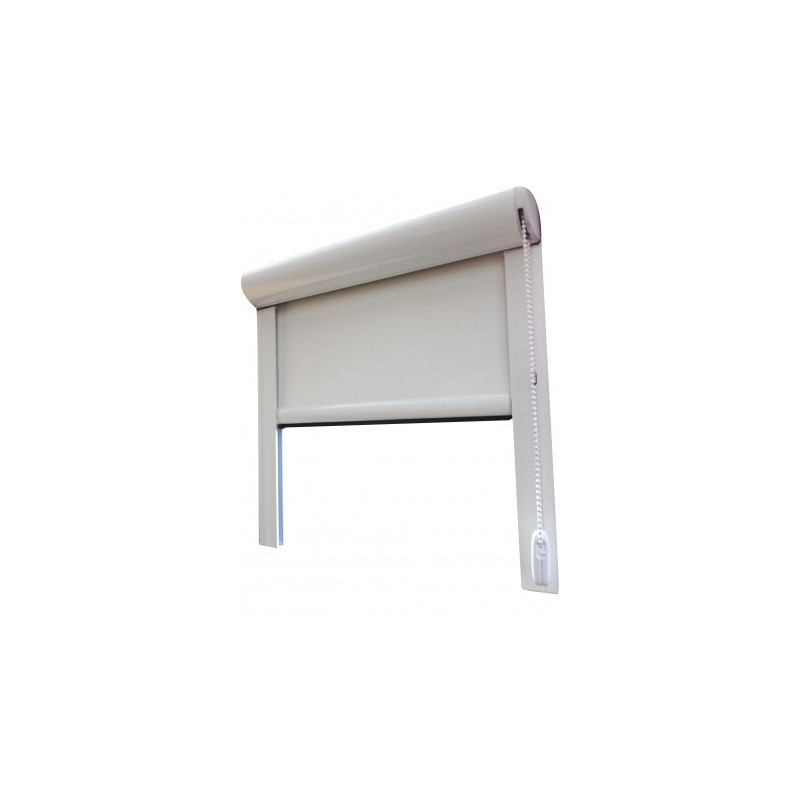

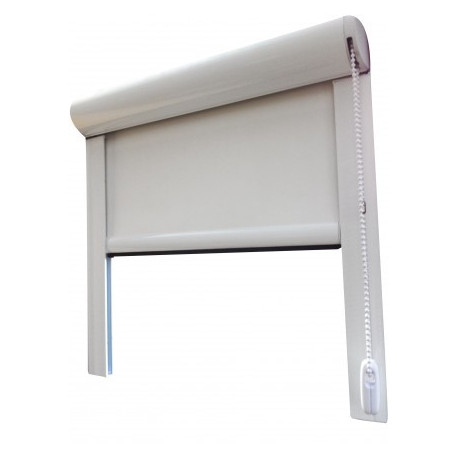

Laser-Roller-Blinds

Height of one Curtain: variable through max. 3,0 m
Width of one Curtain: variable through max. 3,0 m (motorized just 1,45m available)

A side in WHITE, the other one in BLACK

Smaller cuttings please specify with order - the cutting are free of charge. On this occasion, it must be considered that with a specific cutting the next bigger width is calculated.

Models

non-encapsulated with manual handling (LMT-RB-...)
encapsulated with manual handling (LMT-ERB-...)
encapsulated with motorized handling (LMT-MRB-...)

The material is fireproof. When irradiated with greater than 0.5 MW/m² it will emit a non-hazardous smoke and may glow, thus indicating that a stray beam is present. Protection times given by the material at various power densities are shown in the specifications for exposure time 100 seconds below.

Curtain side	Irradiated Area mm²	PEL (T2) 100s MW/m²
White side	1	3
	500	0,7
Black side	1	1
	500	0,5

Product Matrix

width (m)	height (m)
0,7	0,5
1,45	1
max. 2,5	1,5
	2
	2,5
	3 (just for LMT-RB)

Motorized roller blind video

Example: LMT-RB-1.45-0.5 Laser-Roller-Blind with size 1,45m x 0,5m (Width x Height)
All blinds are certificated to CE after the norm EN 60825-4 (security for class 4 laser products: Laser protection products)
