Product description

Laser goggles (630-1150 nm)

Lasers have found their way into many areas of industry, medicine and research. Accordingly, laser protection is essential for the safe handling of these intensive beam sources of different wavelength, power and radiation mode. The CE certification guarantees compliance with the valid standards according to international and European optical and laser standards (DIN EN 207 / EN208).

UNV-P1022-xxx (xxx=frame), Laser Safety Goggle according to DIN EN 207

Filter material: Polycarbonate
Filter color: Green*
Daylight transmission: 10-13 %
(*the picture shows one filter color as an example only)

Optical density:

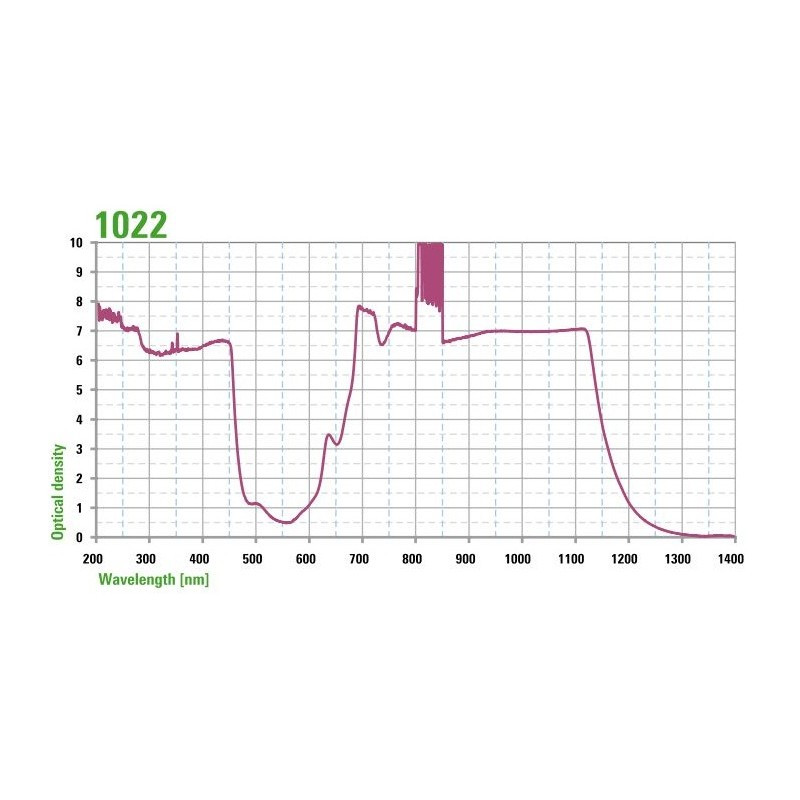

See filter curve in the picture gallery

Protection values:
Frame -5X7:
630-1150 DIR LB3 + M LB3Y
670-1135 DIR LB4 + M LB4Y
680-1125 DIR LB5 + M LB5Y
685-725 DIR LB6 + M LB6Y
750-1115 DIR LB6 + M LB6Y
765-1100 D LB6 + IR LB7 + M LB7Y
9000-11000 DI LB3
1 W 2x10^-4 J 630-665 RB3

Frame -562:
630-1150 DIR LB3
670-1135 DIR LB4
680-1125 DIR LB5
685-725 DIR LB6
750-1115 DIR LB6
765-1100 D LB6 + IR LB7 + M LB7Y

Frame -546:
630-1150 DIR LB3
670-1135 DIR LB4
680-1125 DIR LB5
685-725 DIR LB6
750-1115 DIR LB6
765-1100 D LB6 + IRM LB7

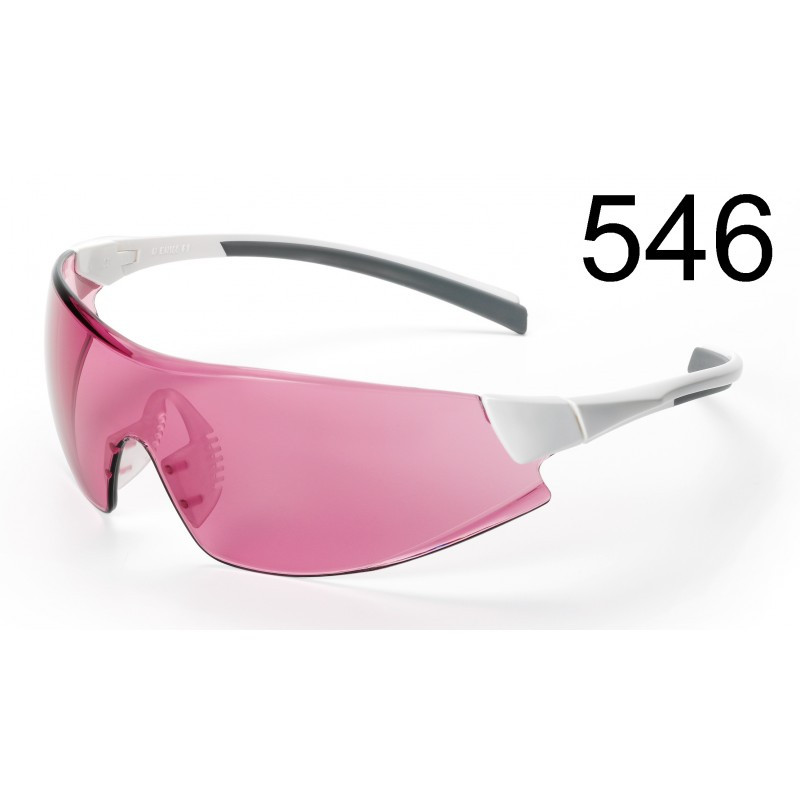

Frame -546:
  • Wraparound shape for outstanding protection
  • Extremely lightweight
  • Anti-slip soft rubber nose pad
  • Perfect-fit temple tips reduce the lateral pressure

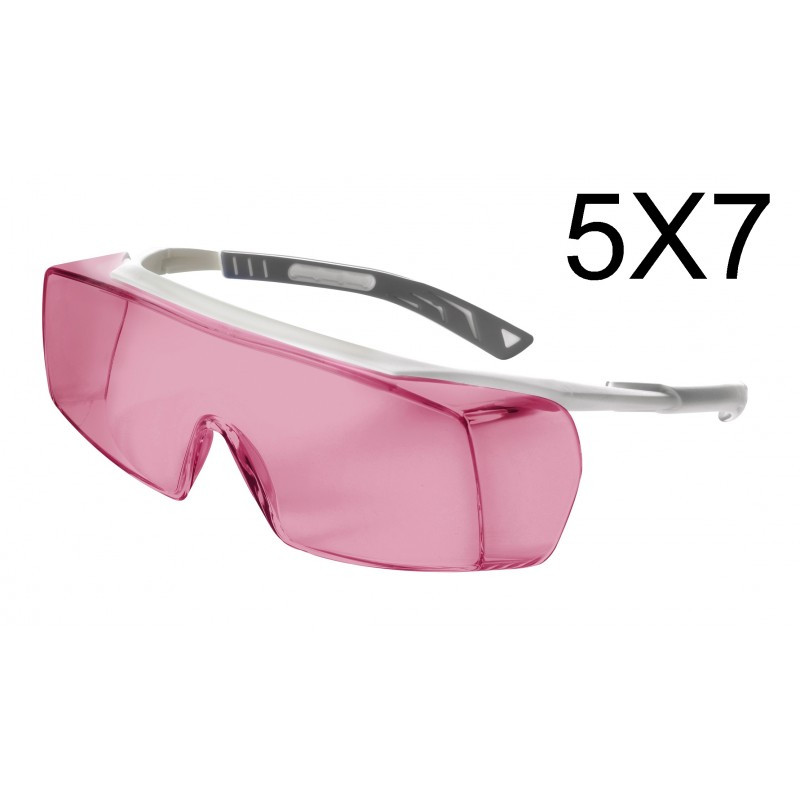

Frame -5X7:
  • Developed to be worn over every prescription glasses without losing in comfort
  • Ultra-light frame (42 g)
  • Wide vision single-lens absorbing filters made of polycarbonate
  • Equipped with patented Softpad technology
  • Adjustable temples

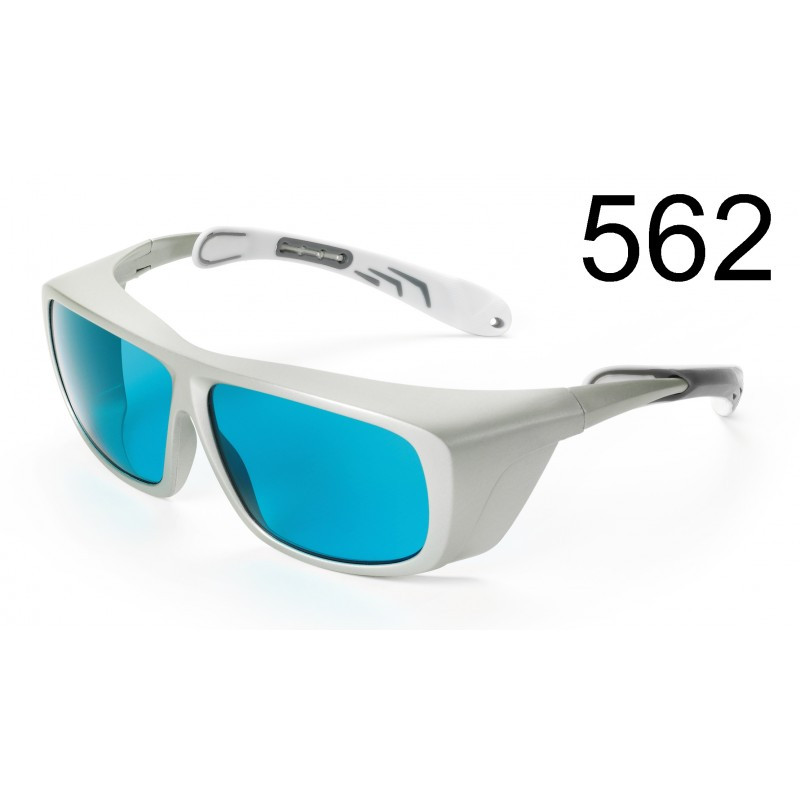

Frame -562:
  • Adjustable temples
  • Ergonomic wraparound temples fit perfectly on user face
  • Universal overspec on every prescription glasses
