Product description

Laser goggles (180-532/1064 nm)

Lasers have found their way into many areas of industry, medicine and research. Accordingly, laser protection is essential for the safe handling of these intensive beam sources of different wavelength, power and radiation mode. The CE certification guarantees compliance with the valid standards according to international and European optical and laser standards (DIN EN 207 / EN208).

UNV-G3004-xxx (xxx=frame), Laser Safety Goggle according to DIN EN 207

Application example: Nd:YAG Lasers, 266, 355, 532, 1064 nm

Filter material: Glass with interference filter
Filter color: Orange*
Daylight transmission: 18 %
(*the picture shows one filter color as an example only)

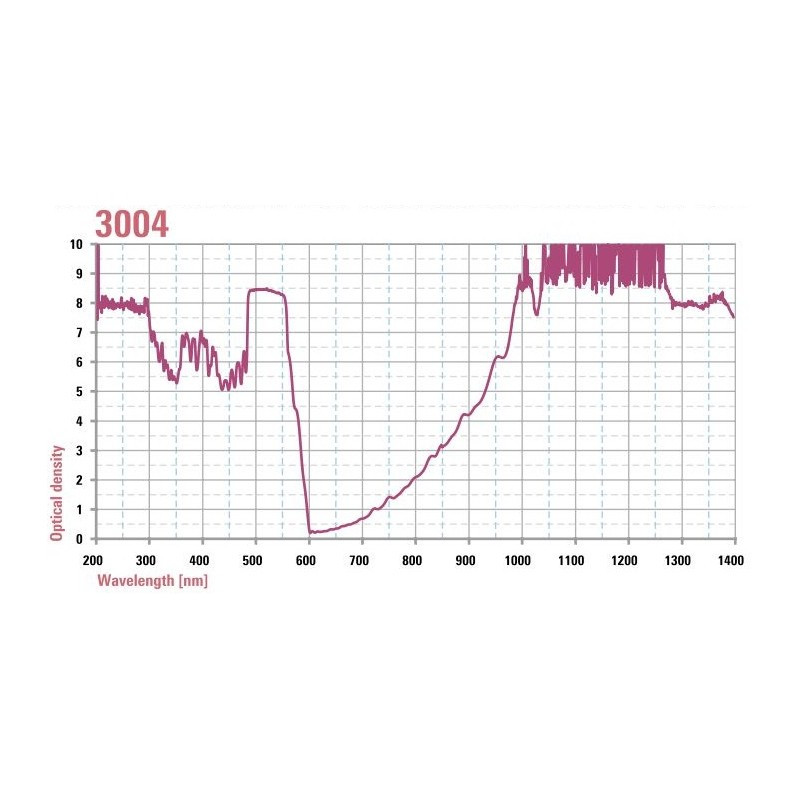

Optical density:
See filter curve in the picture gallery

Protection values:
180-315 D LB9 + IR LB5
>315-<515 D LB6 + IR LB7 + M LB7Y
515-532 D LB8 + IR LB9 + M LB9Y
1025-1100 D LB8 + IR LB9 + M LB9Y
2940 DI LB4

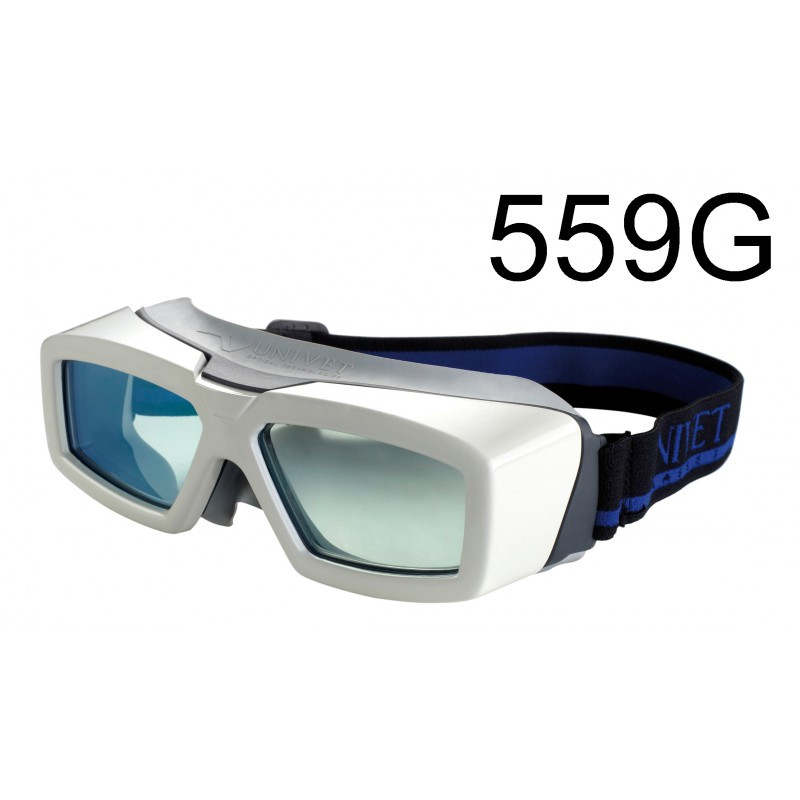

Frame -559G:

  • High power laser protection
  • High protection 2 mm aluminum shield
  • Adjustable elastic band improves the stability
  • Internal soft rubber eliminates local pressure
  • Can be worn over prescription glasses
