Laser Safety Goggle, 315-532/800-1105nm

Reference: UNV-P1016-XXX

Laser safety goggles according to DIN EN 207 with polycarbonate filter and a daylight transmission of 25 %.






Alexandre Besson
Business Unit Director
+33 5 57 10 92 84
a.besson@laser2000.fr
Product request: Laser Safety Goggle, 315-532/800-1105nmX



Dear Besson,

I am interested in the following product: Laser Safety Goggle, 315-532/800-1105nm

I am interested in:

an offer
Information material
a call back and consulting
Please complete at least the mandatory fields marked with *.



* Title:

Academic Degree:

First Name:

* Last Name: * Last Name:

* Company Name: * Company Name:

Company Address:

* Street: * Street:

* Zip Code: * Zip Code:

* City: * City:


* E-Mail: * E-Mail:

* Phone: * Phone:

Text:



* What do you see in picture 2?* What do you see in Picture 2?

laserdiode laserschutzbrille laserschutzfenster leistungsmessgerät


Bitte auswählen:Please select:    Diode    Gauge    Safety Goggles    Safety Windows



Please check red marked fields.




Your request has been sent successfully. You will be contacted as soon as possible.




Product description

Laser goggles (315-532/800-1105 nm)

Lasers have found their way into many areas of industry, medicine and research. Accordingly, laser protection is essential for the safe handling of these intensive beam sources of different wavelength, power and radiation mode. The CE certification guarantees compliance with the valid standards according to international and European optical and laser standards (DIN EN 207 / EN208).

UNV-P1016-xxx (xxx=frame), Laser Safety Goggle according to DIN EN 207

Filter material: Polycarbonate
Filter color: Orange*
Daylight transmission: 25 %
(*the picture shows one filter color as an example only)

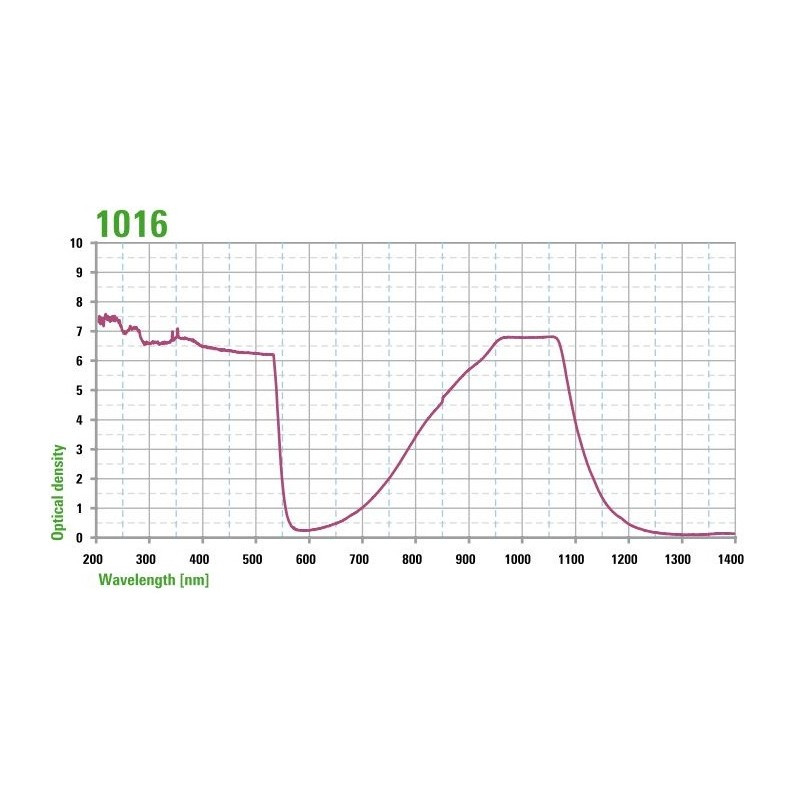

Optical density:
See filter curve in the picture gallery

Protection values:

Frame -5X7:
180-315 D LB7 + IR LB4
>315-535 D LB6 + IR LB7 +M LB7Y
950-1070 D LB6 IR LB8 + M LB7Y

Frame -562:
190-315 D LB6 + IR LB3
>315-532 D LB6 + IR LB8 + M LB7Y
800-1105 DIR LB3
850-1090 DIR LB4
905-1080 DIR LB5
945-1070 DIR LB6
970-1068 D LB6 + IR LB7 + M LB7Y
10600 DI LB4


Frames -561, -559G:
190-315 D LB6 + IR LB3
>315-532 D LB6 + IR LB8 + M LB7Y
800-1105 DIR LB3
850-1090 DIR LB4
905-1080 DIR LB5
945-1070 DIR LB6
970-1068 D LB6 + IR LB7 + M LB7Y
1000-1065 D LB6 + IR LB8 + M LB7Y
10600 DI LB4

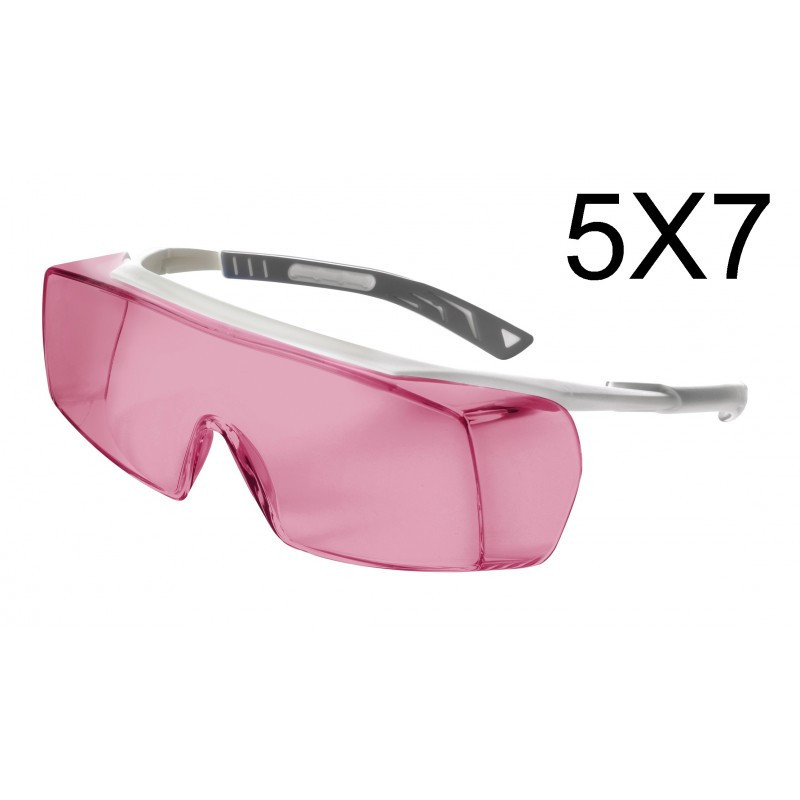

Frame -5X7:

  • Developed to be worn over every prescription glasses without losing in comfort
  • Ultra-light frame (42 g)
  • Wide vision single-lens absorbing filters made of polycarbonate
  • Equipped with patented Softpad technology
  • Adjustable temples

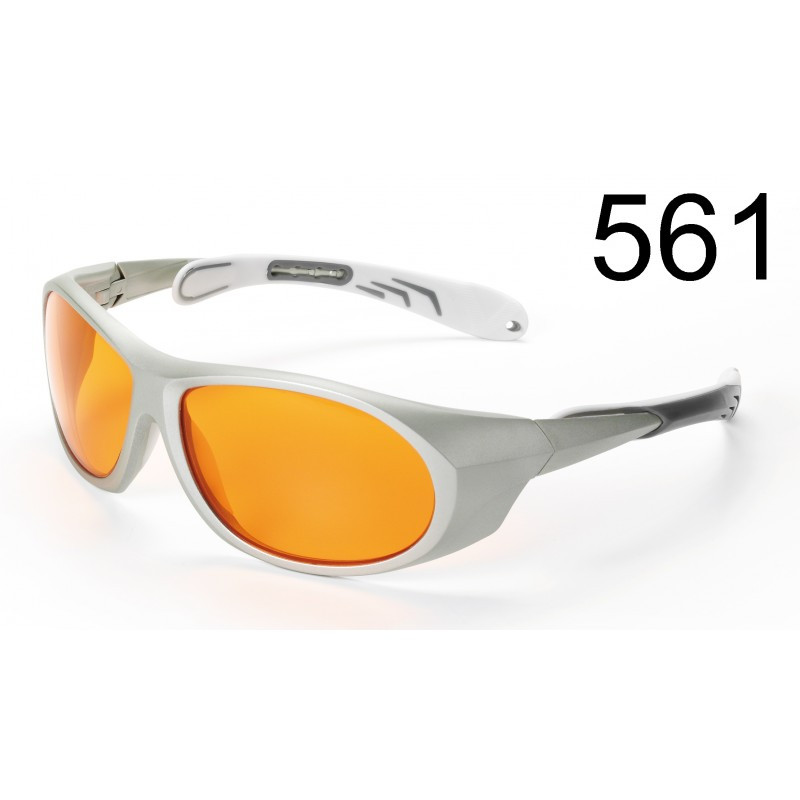

Frame -561:
  • Smart design
  • Soft hypoallergenic nose pad
  • Adjustable temples
  • Ergonomic wraparound temples fit perfectly on user face

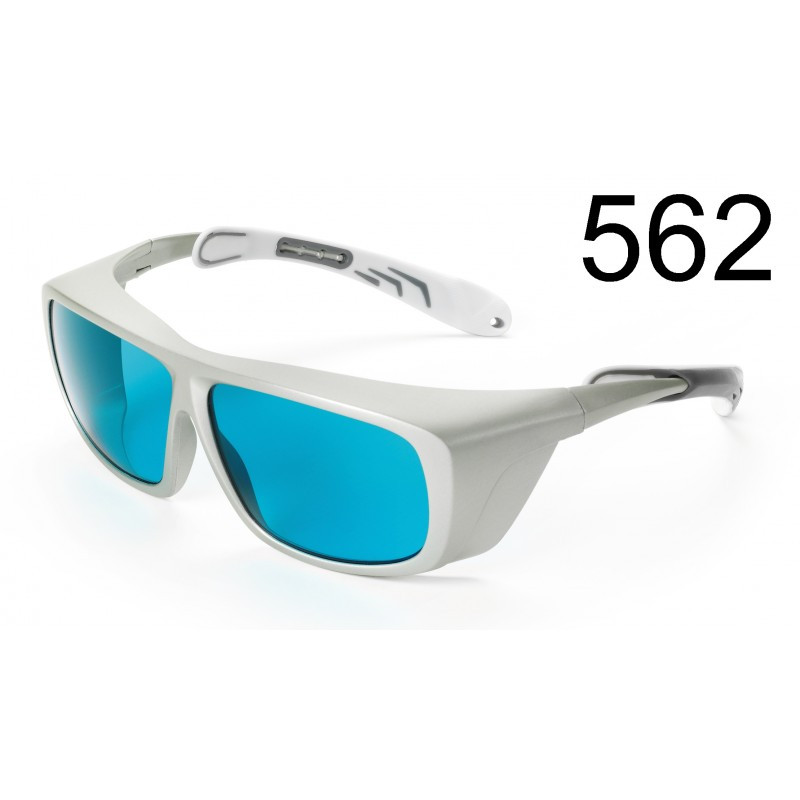

Frame -562:
  • Adjustable temples
  • Ergonomic wraparound temples fit perfectly on user face
  • Universal overspec on every prescription glasses

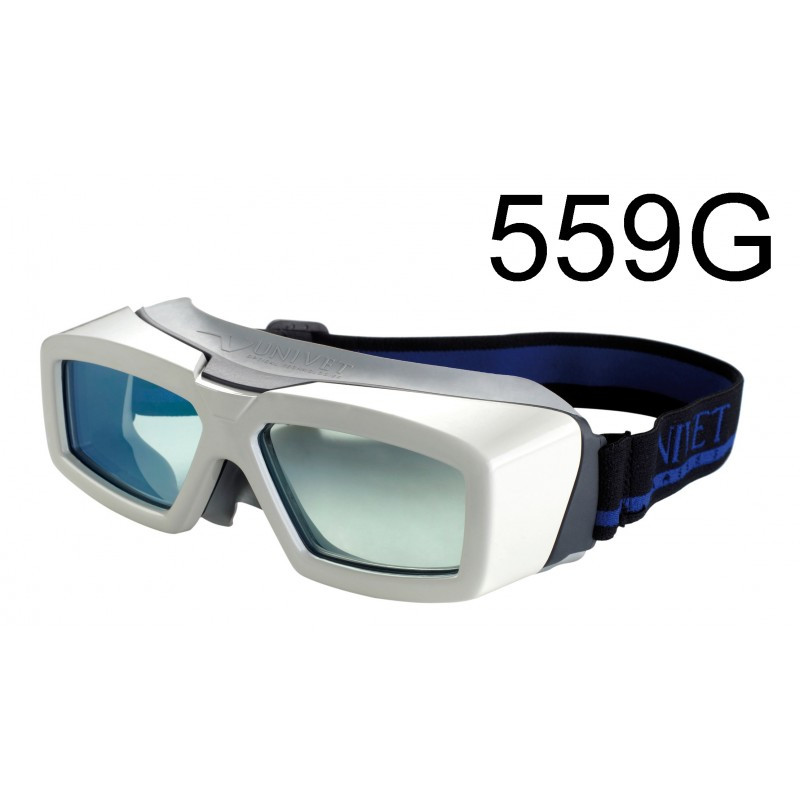

Frame -559G:
  • High power laser protection
  • High protection 2 mm aluminum shield
  • Adjustable elastic band improves the stability
  • Internal soft rubber eliminates local pressure
  • Can be worn over prescription glasses
