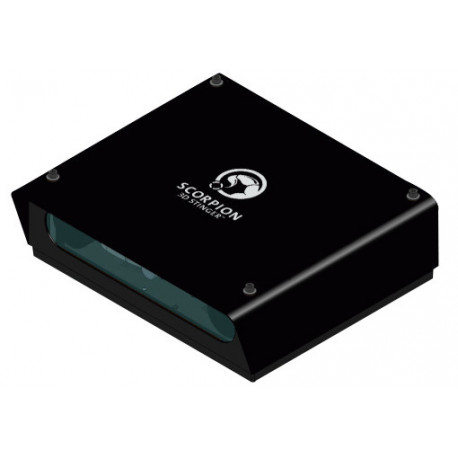

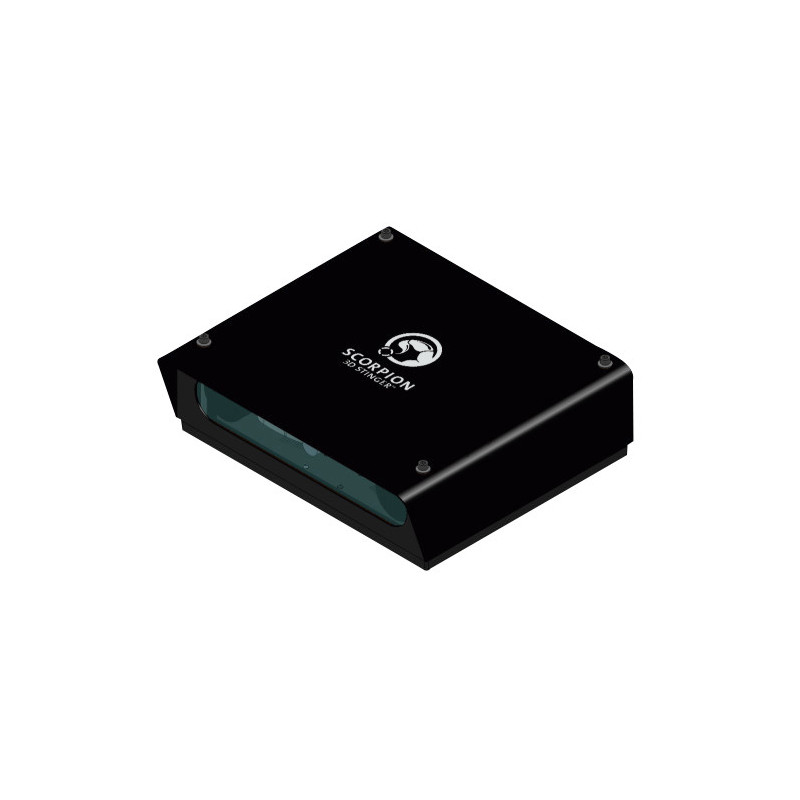

3D Stinger Camera View larger

3D Stinger Camera

Reference: TOR-3D Stinger

Designed for advanced 3D image processing applications, with or without structured light.






Alexandre Besson
Business Unit Director
+33 5 57 10 92 84
a.besson@laser2000.fr
Product request: 3D Stinger CameraX



Dear Besson,

I am interested in the following product: 3D Stinger Camera


I am interested in:

an offer
Information material
a call back and consulting
Please complete at least the mandatory fields marked with *.



* Title:

Academic Degree:

First Name:

* Last Name: * Last Name:

* Company Name: * Company Name:

Company Address:

* Street: * Street:

* Zip Code: * Zip Code:

* City: * City:


* E-Mail: * E-Mail:

* Phone: * Phone:

Text:




* What do you see in picture 2?* What do you see in Picture 2?

laserdiode laserschutzbrille laserschutzfenster leistungsmessgerät


Bitte auswählen:Please select:    Diode    Gauge    Safety Goggles    Safety Windows



Please check red marked fields.




Your request has been sent successfully. You will be contacted as soon as possible.





Product description
The new Scorpion 3D Stinger RPP Laser Camera is  based on the principle “projected texture stereo vision” to create a high quality dense point cloud.  The 3D camera works on moving objects with or without texture.

The Scorpion 3D Stinger™ RPP Laser Camera consists of:

  • IP-64 aluminium enclosure – typical 3.5 kg
  • to be mounted above the object or mounted on the robot
  • Black Anodized Aluminium
  • Size: L=292 mm x D=266 mm x H=100  mm
  • Two XCG GigE Cameras from Sony with lenses with resolution from VGA to 5MP
  • Baseline of 200 mm – allows camera tilting to handle multiple operation distances
  • High power white or Infrared strobed LED
  • IR – 830 nm and Red – 660 nm Random Pattern Projection laser from Osela.
  • Termination panel & cables
  • Scorpion Stinger Control Card to driver LED and Laser and to control the image capture an strobing sequence
  • 24v input, 5v and 12v output – Power consumption from 15 to 35 W
  • Working Distances from 400 – 5000 mm
  • GigE switch
