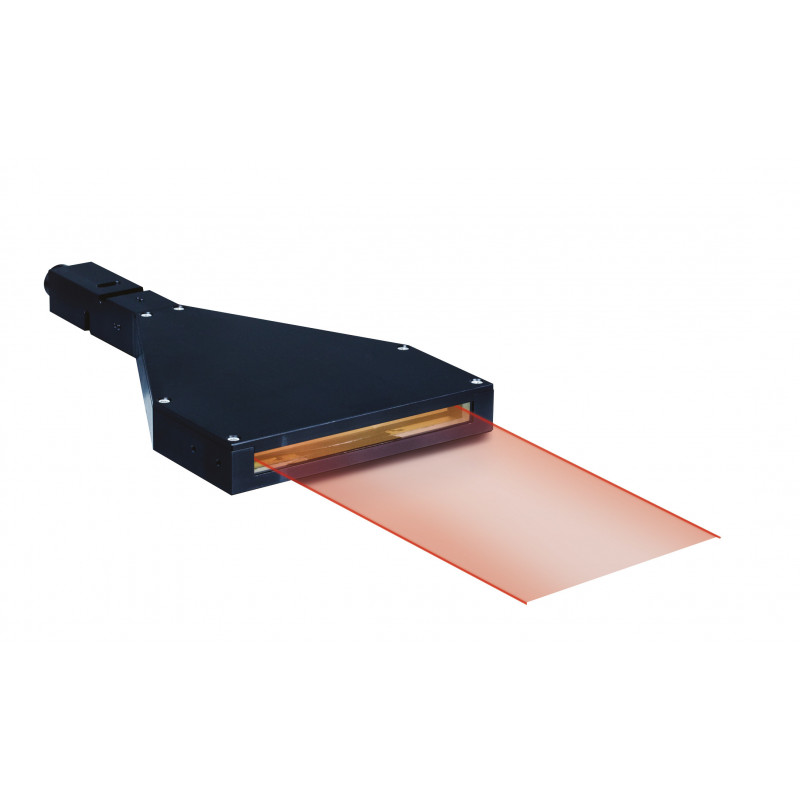

Telecentric Laser Projector

Reference: L2S-SL-TPL-Laser

Telecentric Laser Projector for high precision 3D structured lighting inspection applications.

Download
Print
Send to a friend
Send to a friend
Telecentric Laser Projector
Telecentric Laser Projector for high precision 3D structured lighting inspection applications.
Recipient :
Name ^* :
E-mail ^* :
Kommentar
^* Required fields
or Cancel
Remove this product from my favorite's list.
Add this product to my list of favorites.

Alexandre Besson
Business Unit Director
+33 5 57 10 92 84
a.besson@laser2000.fr

Product request: Telecentric Laser ProjectorX

Dear Besson,

I am interested in the following product: Telecentric Laser Projector

I am interested in:

an offer
Information material
a call back and consulting

Please complete at least the mandatory fields marked with *.

* Title:

Academic Degree:

First Name:

* Last Name: * Last Name:

* Company Name: * Company Name:

Company Address:

* Street: * Street:

* Zip Code: * Zip Code:

* City: * City:

* E-Mail: * E-Mail:

* Phone: * Phone:

Text:

* What do you see in picture 2?* What do you see in Picture 2?

laserdiode

Bitte auswählen:Please select: Diode Gauge Safety Goggles Safety Windows

Please check red marked fields.

Your request has been sent successfully. You will be contacted as soon as possible.

Product description

Telecentric Laser Projector from Osela

Telecentric Laser Projector (TLP) provides parallel non angular laser line illumination as opposed to conventional lasers lines that projects a diverging fan. The TLP has the advantage of reducing object occlusions on your image plane critical for 3D high precision structured lighting applications. In these applications the TLP evenly illuminates the complete part under inspection in order to achieve the measurement accuracy required.

Advantages of the Telecentric Laser Projector

Another advantage of the Telecentric Laser Projector is that its thickness is constant over its entire length. In applications such as semiconductor inspection, it is very important to have micron thin line over the entire length. With conventional fan out laser lines it is not possible to have both a thin line over a wide field due to depth of focus limitations. With the TLP, its parallel non angular illumination design allows for constant micron thin lines over large field of views.

Features of the Telecentric Laser Projector

Constant thickness over entire line length
Collimated line length
Reduced image occlusion
Line thickness down to 5 ?m
Line length up to 100 mm
Uniform line intensity profile

Secifications of the Telecentric Laser Projector

Bore sight (mrad)	< 3 mrad
Wavelength Drift	? 0.25 nm/ degC
Pointing Stability	< 6 ?rad/°C
Modulation Rise/Fall time	< 5? sec, 100% modulation depth (10 Kohm input impedance)
Protections (Built in)	ESD, Over voltage (up to 30 VDC), Over-temp Shutoff (> 50 deg C)
Long term Power stability (8 hours)	< 3 %, 2 minute warm up time
Operating Voltage	5 ± 0.5 VDC, 4.5 to 30 V Optional (9 - 30 V for < 635 nm)
Working Temp Range	-10 to to +50 °C (housing)
Weight	< 1500 g
Power Supply Cable	18 inches 3 conductors Belden 9533, with flying leads
ESD Protection	Level 4
Shock Tolerance	30 g, 6 ms, functional
