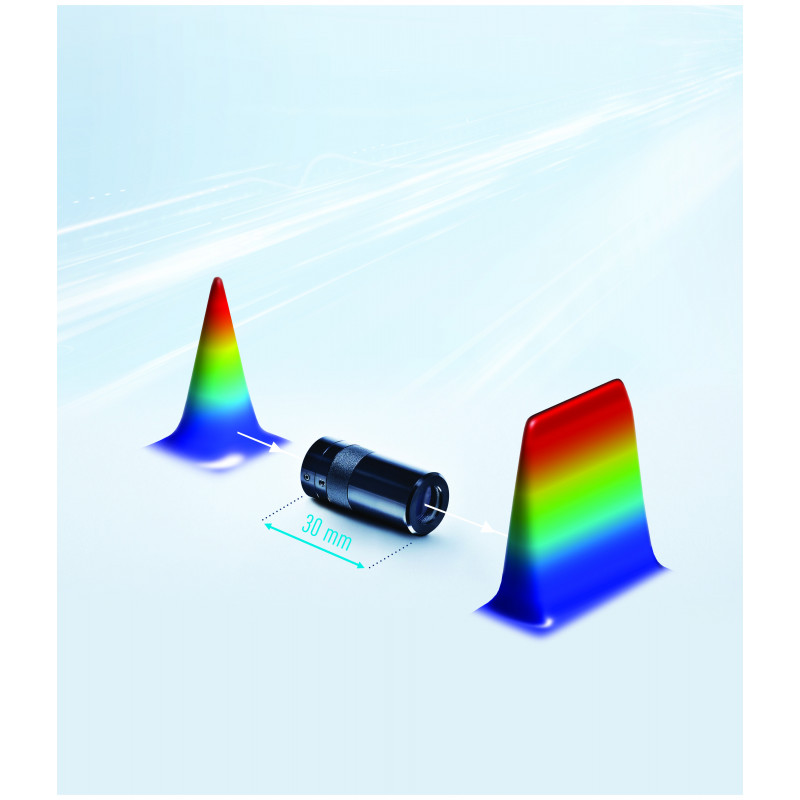

> >Optics for Line Laser Systems
Optics for Line Laser Systems View larger

Optics for Line Laser Systems

Reference: L2S-Optics

Special optics for Osela Line Laser Systems. All of the following optics can be combined with almost all of the standard laser systems.






Alexandre Besson
Business Unit Director
+33 5 57 10 92 84
a.besson@laser2000.fr
Product request: Optics for Line Laser SystemsX



Dear Besson,

I am interested in the following product: Optics for Line Laser Systems

I am interested in:

an offer
Information material
a call back and consulting
Please complete at least the mandatory fields marked with *.



* Title:

Academic Degree:

First Name:

* Last Name: * Last Name:

* Company Name: * Company Name:

Company Address:

* Street: * Street:

* Zip Code: * Zip Code:

* City: * City:


* E-Mail: * E-Mail:

* Phone: * Phone:

Text:



* What do you see in picture 2?* What do you see in Picture 2?

laserdiode laserschutzbrille laserschutzfenster leistungsmessgerät


Bitte auswählen:Please select:    Diode    Gauge    Safety Goggles    Safety Windows



Please check red marked fields.




Your request has been sent successfully. You will be contacted as soon as possible.




Product description

Special optics for Osela Line Laser Systems

All of the following optics can be combined with almost all of the standard laser systems. Should you need a special interbeam angle or pattern, we are able to offer you custom specific optics.



A core competence of our production lays in the hand crafted optics. Each optic is perfectly grinded by hand!

Description: Optics for lines and 3D patterns

L2S-1 Line* Type AOptics to project one line. Please specify the *fan angle for the length of the line. 1°, 5°, 10°, 15°, 20°, 25°, 30°, 35°, 40°, 45°, 50°, 60°, 75° or 90°
L2S-1 Line* Type BWith this optics you increase the depth of field up to 12x, the line width increases by 3.5. Please specify the *fan angle.
L2S-Optics CWith this optics you decrease the line diameter by 50%. Please specify the *fan angle.
L2S-WinkelCustom fan angle between 0.5° and 120° are available
L2S-3 Lines* (Dots)Optics for 3 lines or dots. Available interbeam angle between the parallel lines: 1.5° ,5° or 11.7°.*
L2S-5 Lines* (Dots)Optics for 5 lines or dots. Available interbeam angle between the parallel lines: 0.23° or 1.55°.*
L2S-9 Lines * (Dots)Optics for 9 lines or dots. Available interbeam angle between the parallel lines: 0.11° or 0.07°.*
L2S-11 Lines * (Dots)Optics for 11 lines or dots. Available interbeam angle between the parallel lines: 1.5°.*
L2S-15 Lines * (Dots)Optics for 15 lines or dots. Available interbeam angle between the parallel lines: 2.3°.*
L2S-19 Lines * (Dots)Optics for 19 lines or dots. Available interbeam angle between the parallel lines: 0.77°, 1.15°.*
L2S-33 Lines * (Dots)Optics for 33 lines or dots. Available interbeam angle between the parallel lines: 0.09° or 0.41°.*
L2S-59 Lines * (Dots)Optics for 65 lines or dots. Available interbeam angle between the parallel lines: 0.59°, 0.65°.*
L2S-65 Lines * (Dots)Optics for 65 lines or dots. Available interbeam angle between the parallel lines: 0.34°, 0.41°.*
L2S-99 Lines * (Dots)Optics for 99 lines or dots. Available interbeam angle between the parallel lines: 0,149°.*
L2S-1 telecentric Line 65Parallel Line with 65 mm length, available only for SL-Version
L2S-90° elbow90° adapter mirror for perpendicular beam deviation

* Please specify fan angle for line length 1°, 5°, 10°, 15°, 20°, 25°, 30°, 35°, 45°, 50°, 60°, 75° or 90°

Information for the optics

Single Lines

All line generating elements are made by handcrafted optical elements with superior performance. The optics offer you perfect focusing and a large depth of field. You may optimize on focus or depth of filed by choosing option B.



Important!

All diffractive optics are dependent on the wavelength they are used for. All above given interbeam angles are calculated at 660 nm. If the angle is 0.77° at 660 it may change to 0.95° if used at 830 nm. Please contact us to get a detailed calculation.



Telecentric Line Generators

All of these optics are used for telecentric illumination which offer a parallel line for a large depth of field.



90° Mirror

The laser beam will be deviated by 90°. The adapter is mounted to the laser system.
