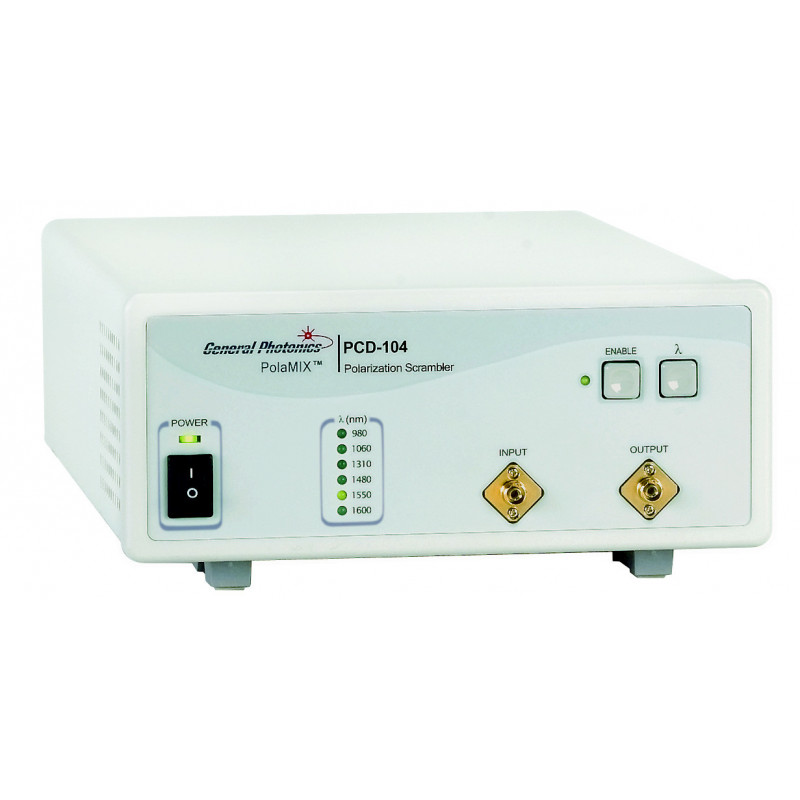

Polarization Scrambler PCD-104 PolaMix™

Ce brouilleur de polarisation utilise une conception technologique tout fibre (all-fiber) afin de de randomiser (scrambler) efficacement les états de polarisation. La dépolarisation par brouillage de polarisation a de nombreuses applications. Le brouillage de polarisation du signal d’entrée peut éviter les incertitudes de mesure provoquées par la sensibilité dépendante de la polarisation du matériel d'essai. La dégradation des performances due à le gain dépendant de polarisation (PDG) induite dans les amplificateurs optiques peut être supprimée par le brouillage de l'état de polarisation (SOP). En complément, le brouillage de polarisation peut également être utilisé dans des systèmes pour faciliter et simplifier la surveillance de la PMD. Basé sur une technologie brevetée du tout-fibre, le PCD-104 offre des performances supérieures avec une faible perte d'insertion (insertion loss) et de perte par réflexion (return loss), et une très faible phase résiduelle et la modulation d'amplitude.

Applications :

  • PDG mitigation
  • Elimination of polarization sensitivity
  • Faciliting PMD emulation
  • Faciliting PMD compensation
  • Faciliting PDL mesurement

Points clé :

  • No insertion Loss and No Back Refecflection
  • Low residual Phase and Amplitude Modulation
  • Built-in RS-232, GPIB and Ethernet ports
  • Remote Operation Wavelenght Control

Spécifications :

 Insertion Loss

<0.05dB (without connectors)

<0.6 dB (with connectors)

 Center Operating Wavelength¹

Remote or manual selection of 980 nm, 1060 nm, 1310 nm, 1480 nm, 1550 nm, 1600 nm

 Operating Wavelength Range2

>100 nm

 Output Degree of Polarization(DOP)3, 4

<5 %

 Average PMD

<0.05 ps

 Intrinsic PDL

<0.05 dB

 Return Loss

>65 dB (without connectors)

 Optical Power Handling

>1000 mW

 Residual Amplitude Modulation

< ± 0.01 dB

 Residual Phase Modulation

< 0.1 ?

 Power Supply5

100 ~ 120 VAC, 50-60 Hz or 200 ~ 240 VAC, 50 - 60 Hz

 Power Consumption

 12 W typical

 Scrambling Frequencies4

Factory set 4 fixed frequencies, distributed between DC and > 700 kHz3

 Communication Interfaces

RS-232, Ethernet, GPIB

 Operating Temperature

 10 ~ 45 °C

 Storage Temperature

 -10 ~ 50 °C

 Dimensions

 2U, 19" half rack width, 3.5" × 8.5" × 14." (H × W × L)
