Product description

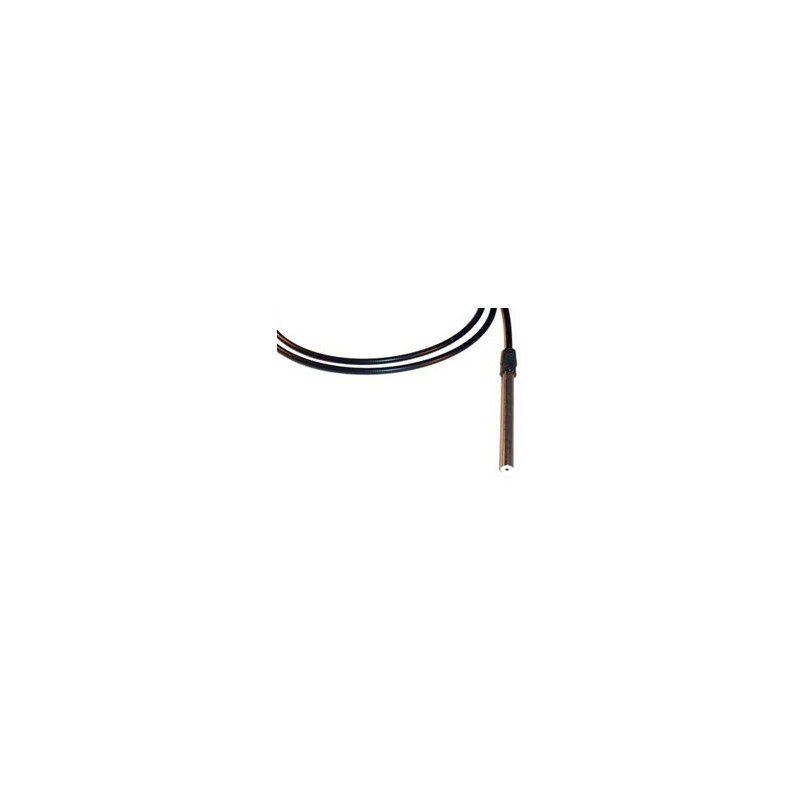

Simple to use Design- easy to attach light source and spectrometer via integrated 400um fiber optic cable.

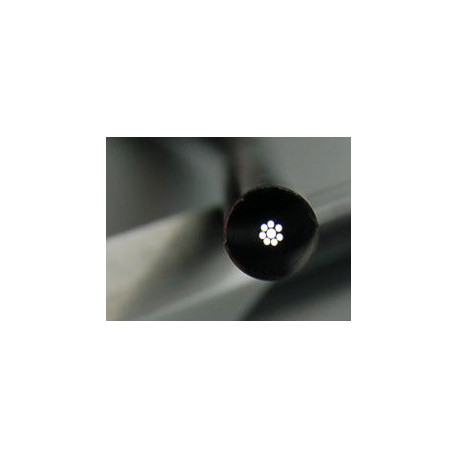

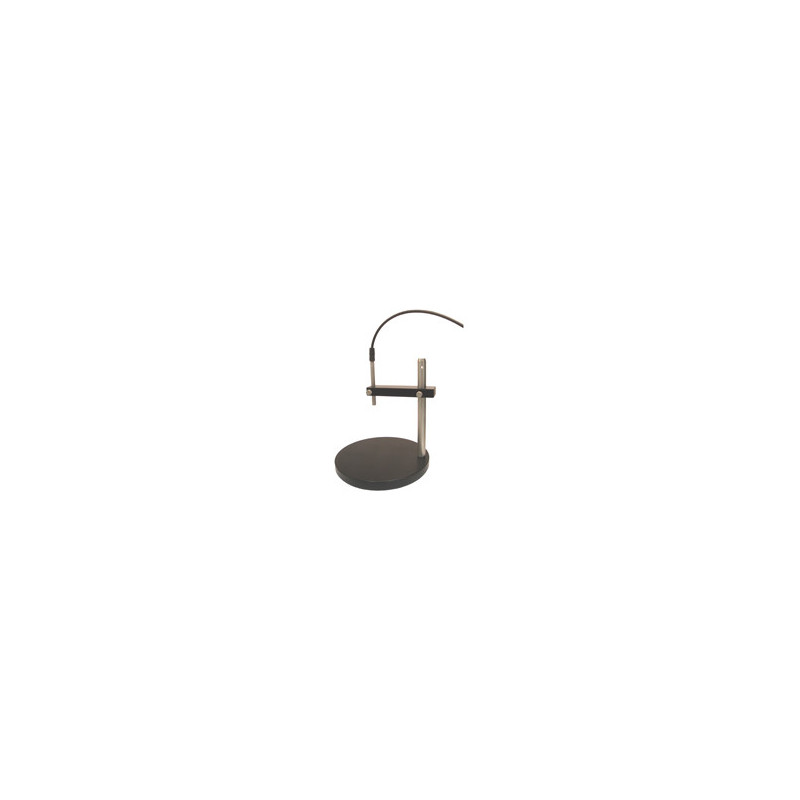

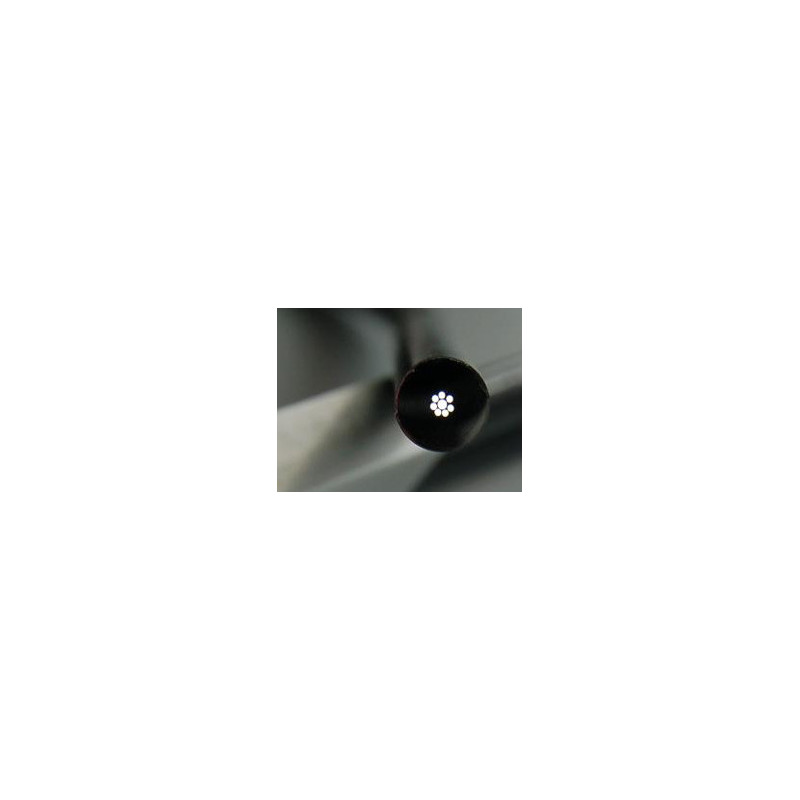

Consistent Measurements- using the RPH1 reflectance probe holder, users can get reproducible results time after time. The Reflectance Probe has 6 illuminating fibers and 1 read fiber bundled together.

Specifications
  • Probe for reflection measuring
  • 6 or 7 Light fibers
  • 1 moving leading fiber
  • 6,3 mm Metal setting
  • 2 x SMA Fiber plug


Model
  • STE-R400-7-UVVIS
  • STE-R400-7-VISNIR
  • STE-R600-8-UVVIS-SR
  • STE-R600-8-VISNIR

Downloads - Optical fiber bundle for reflectance

StellarNet_ReflectanceProbes

Data sheet StellarNet ReflectanceProbes

Download (203.01k)
StellarNet_RFX_Reflectance

Data sheet StellarNet RFX ReflectanceFixtures

Download (231.27k)
