Multifunction Polarization Controller

Reference: GPC-MPC-202

The PolaMight (MPC-202) is an advanced Multifunction Polarization Controller specially designed to meet the requirements of coherent receiver performance tests.

Print
Send to a friend
Send to a friend
Multifunction Polarization Controller
The PolaMight (MPC-202) is an advanced Multifunction Polarization Controller specially designed to meet the requirements of coherent receiver performance tests.
Recipient :
Name ^* :
E-mail ^* :
Kommentar
^* Required fields
or Cancel
Remove this product from my favorite's list.
Add this product to my list of favorites.

Alexandre Besson
Business Unit Director
+33 5 57 10 92 84
a.besson@laser2000.fr

Product request: Multifunction Polarization ControllerX

Dear Besson,

I am interested in the following product: Multifunction Polarization Controller

I am interested in:

an offer
Information material
a call back and consulting

Please complete at least the mandatory fields marked with *.

* Title:

Academic Degree:

First Name:

* Last Name: * Last Name:

* Company Name: * Company Name:

Company Address:

* Street: * Street:

* Zip Code: * Zip Code:

* City: * City:

* E-Mail: * E-Mail:

* Phone: * Phone:

Text:

* What do you see in picture 2?* What do you see in Picture 2?

laserdiode

Bitte auswählen:Please select: Diode Gauge Safety Goggles Safety Windows

Please check red marked fields.

Your request has been sent successfully. You will be contacted as soon as possible.

Product description

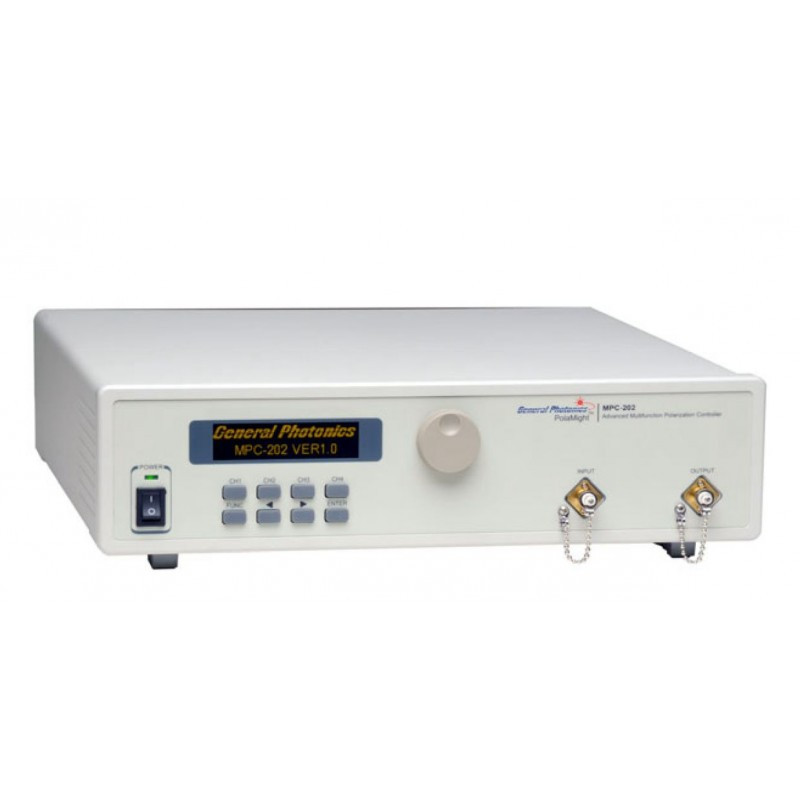

Advanced Multifunction Polarization Controller - PolaMight™

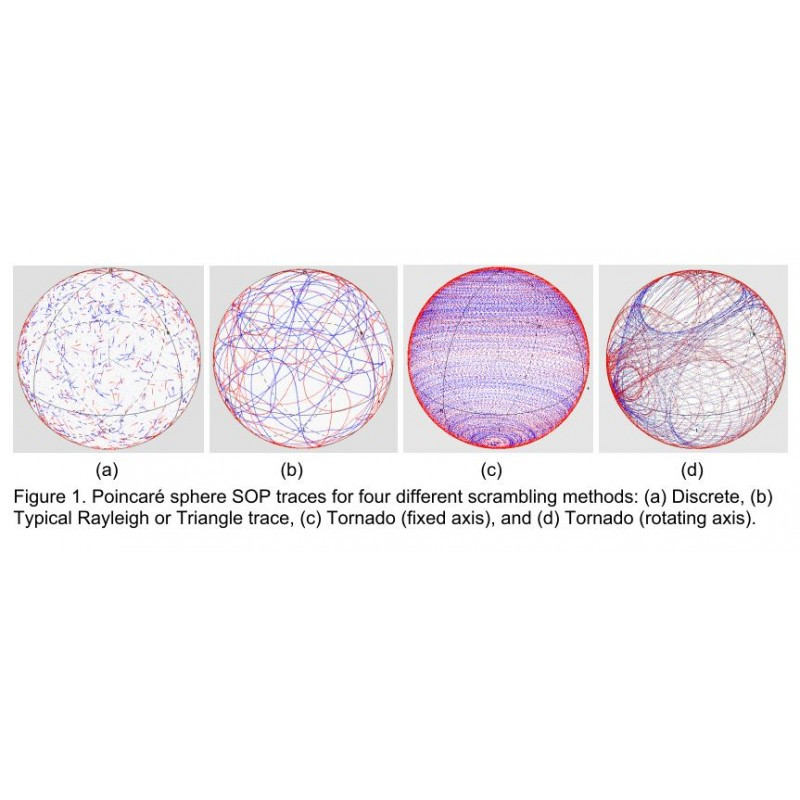

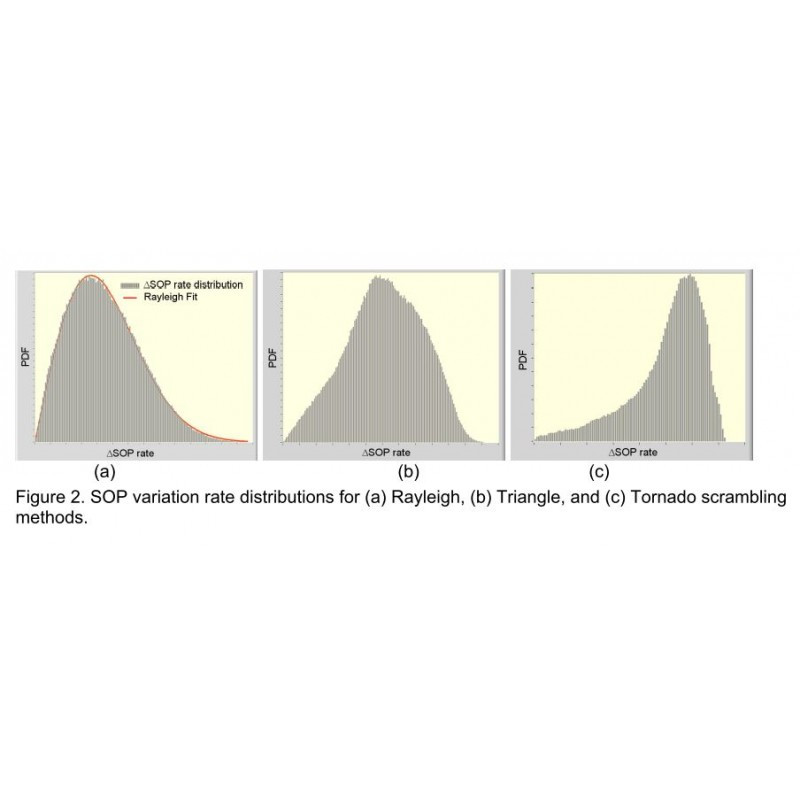

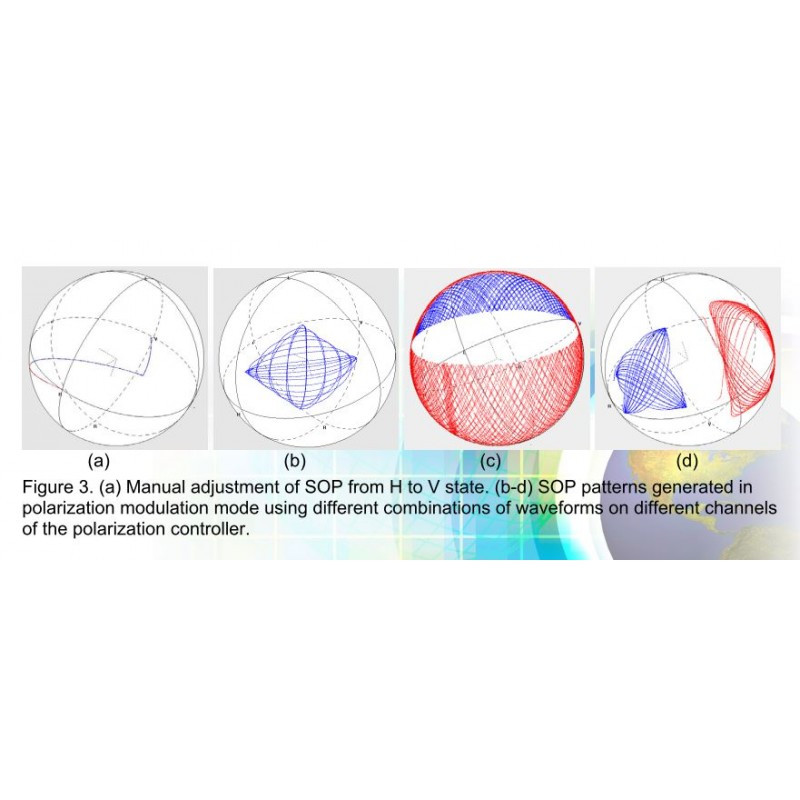

PolaMight combines GPC's PolaRite™ III polarization controller with proprietary polarization control algorithms to achieve a wide range of polarization control functionalities. including high speed quasi-uniform rate polarization scrambling, random- rate polarization scrambling with Rayleigh rate distribution, discrete-state polarization scrambling, sine, square, and triangle wave SOP modulation, and manual polarization control functions.In particular, the “Tornado” quasi-uniform rate polarization scrambling function can achieve a high SOP scrambling rate of up to 60,000 revolutions/s (more than 360 krad/s) with a narrow rate distribution clustered around the highest rate. In short, the MPC-202 is an ideal tool for production or laboratory testing of polarization related functions and parameters, including passive/active component characterization, performance tests of fiber optic interferometers, sensor systems, RF photonics systems, etc. The quasi-uniform rate high speed scrambling function is particularly useful for SOP tracking speed testing of coherent receivers. The square wave SOP modulation function is ideal for SOP recovery time tests.
