> >Single Photon Detector SPAD
Single Photon Detector SPAD View larger

Single Photon Detector SPAD

Reference: MPD-PDM_PDF

Módulos detectores (contadores) de fotones individuales. Detección óptica rápida






Alexandre Besson
Business Unit Director
+33 5 57 10 92 84
a.besson@laser2000.fr
Product request: Single Photon Detector SPADX



Dear Besson,

I am interested in the following product: Single Photon Detector SPAD

I am interested in:

an offer
Information material
a call back and consulting
Please complete at least the mandatory fields marked with *.



* Title:

Academic Degree:

First Name:

* Last Name: * Last Name:

* Company Name: * Company Name:

Company Address:

* Street: * Street:

* Zip Code: * Zip Code:

* City: * City:


* E-Mail: * E-Mail:

* Phone: * Phone:

Text:



* What do you see in picture 2?* What do you see in Picture 2?

laserdiode laserschutzbrille laserschutzfenster leistungsmessgerät


Bitte auswählen:Please select:    Diode    Gauge    Safety Goggles    Safety Windows



Please check red marked fields.




Your request has been sent successfully. You will be contacted as soon as possible.




Product description

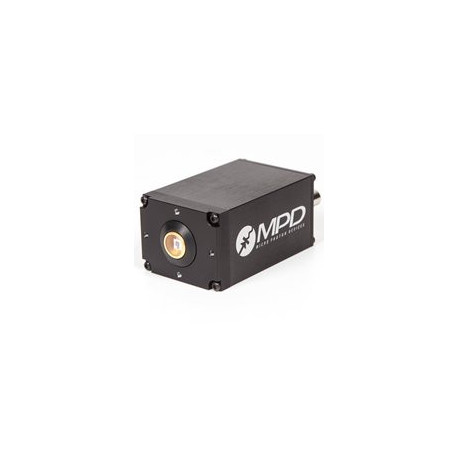

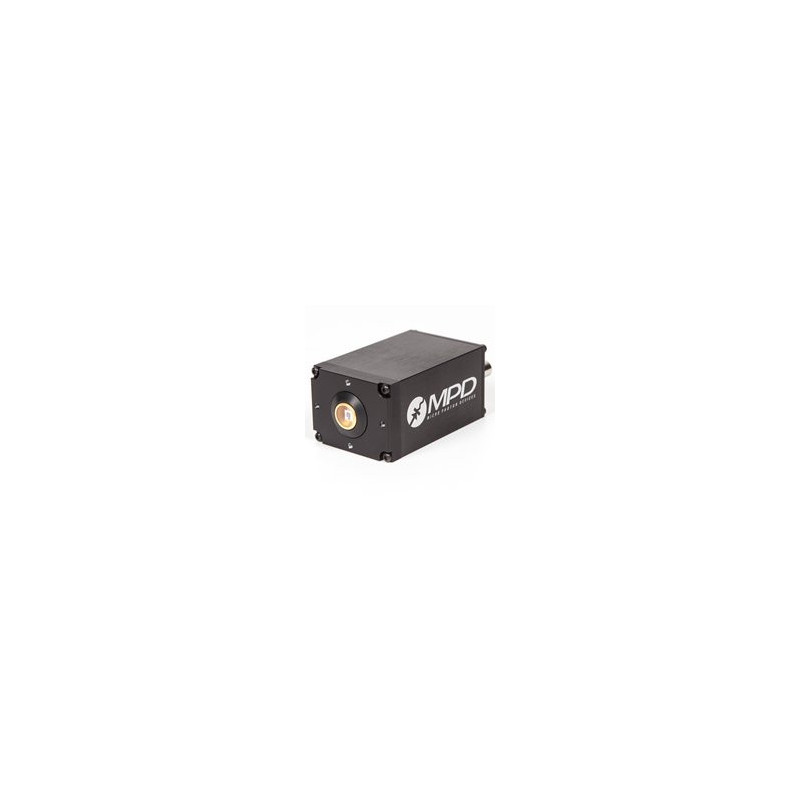

The PDM and PDF series photon counting detector modules are all solid-state instruments. They have a photon detection efficiency of 49% at 550nm and generate a TTL output pulse per detected photon. With fast-timing option (additional circuit board installed) they provide better than 50ps FWHM photon timing resolution.



The excellent photon detection efficiency and superior timing resolution is obtained through the use of epitaxial silicon Single Photon Avalanche Diodes (SPAD) and patented integrated Active Quenching Circuits (iAQC), specifically designed and optimized for photon counting applications. Low-noise SPADs and low-power iAQCs make these modules ideal for portable equipment and all applications requiring low power consumption.

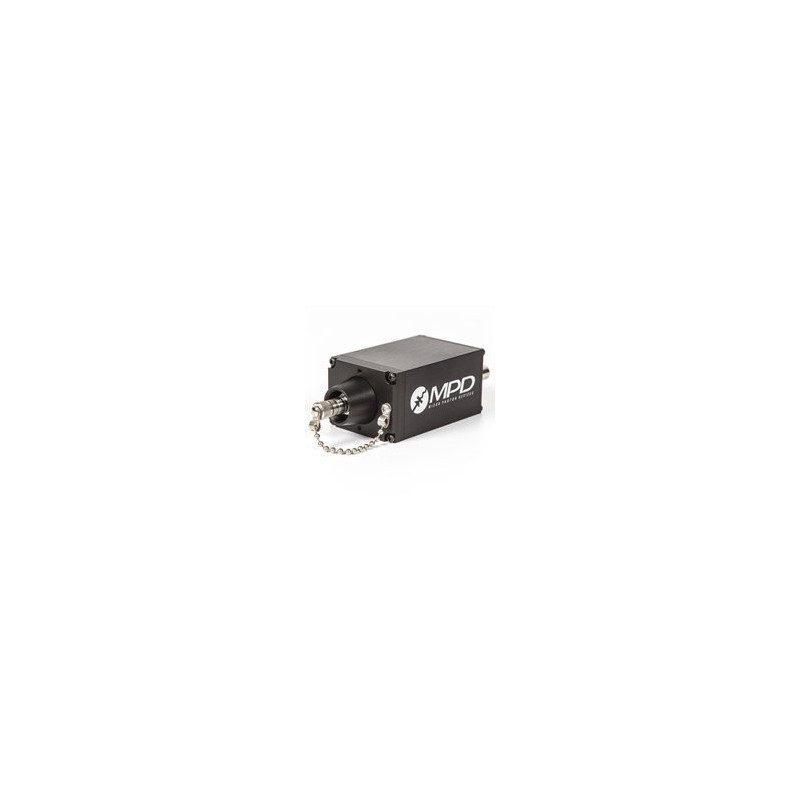

Versions with optical Fiber Receptacle (PDF) to couple to all SingleMode and MultiMode fibers, up to 105um are available.



Main module features :



  • 20µm, 50µm and 100µm active sensing area diameter
  • Free Space an Fiber Receptacle versions available
  • Available in different Grade depending on Dark Counts specifications
  • Timing resolution lower than 50ps FWHM (optional)
  • Detection efficiency up to 50% @ 550nm
  • Uniform performances all-over the active area
  • Peltier-cooled
  • Fiber coupling efficiency greater than 80%
  • Low power consumption
  • Robust and low cost
  • Easy to use

Downloads - Single Photon Detector SPAD

MPD_SPAD_PDM_series

Datasheet Single Photon Detectors

Download (769.02k)
