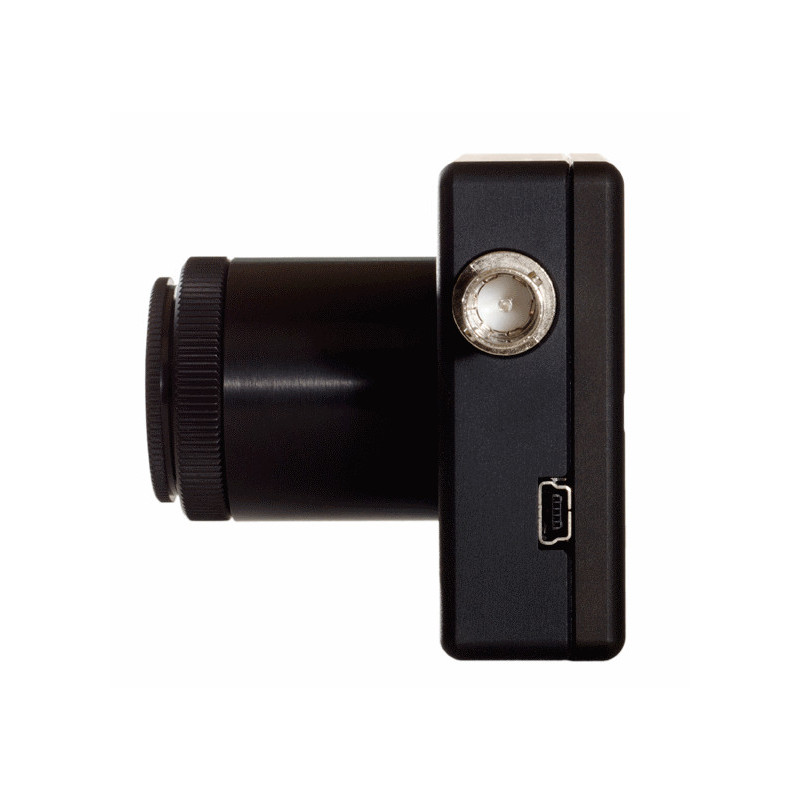

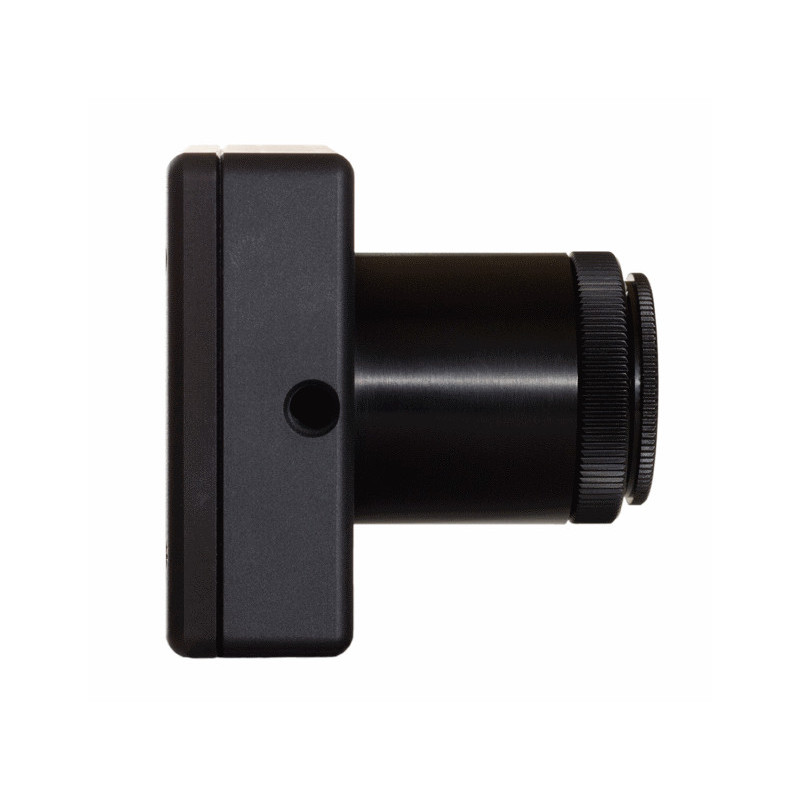

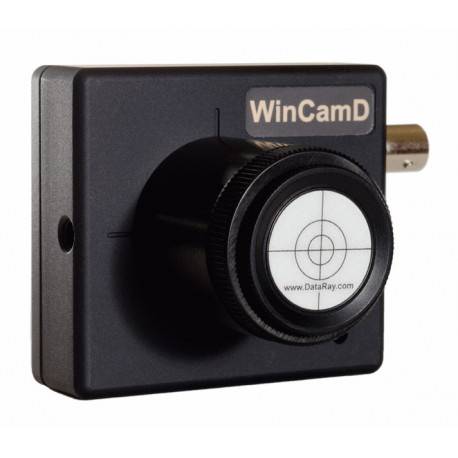

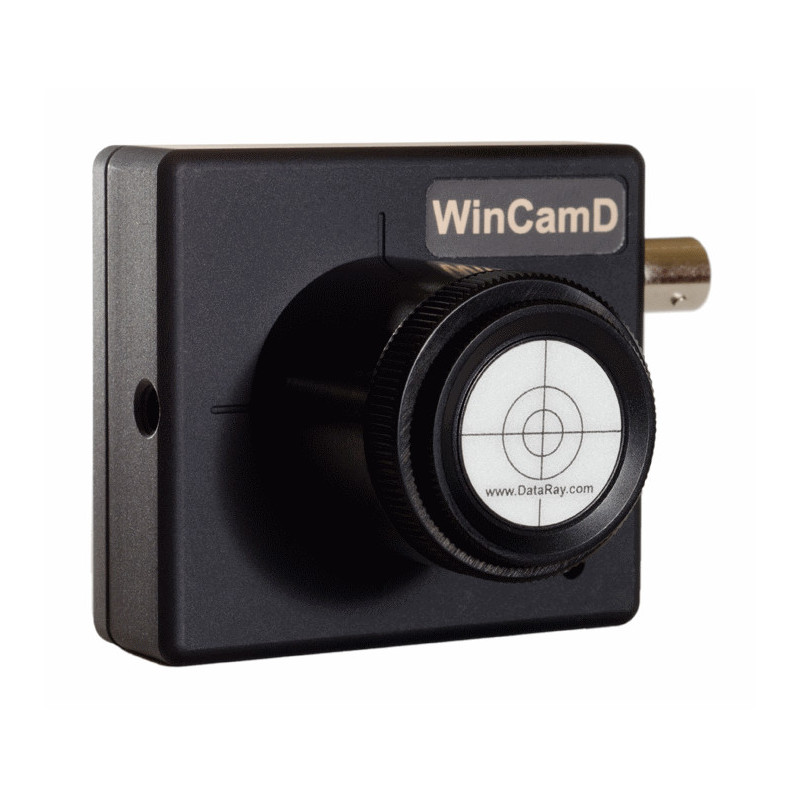

Laser Beam Profiler, 20 mm x 15 mm

Reference: DAT-TaperCamD-UCD23-20-15

The TaperCamD-UCD23-20 25 System is a high resolution beam analysis with a CCD camera to 300 mm2.






Alexandre Besson
Business Unit Director
+33 5 57 10 92 84
a.besson@laser2000.fr
Product request: Laser Beam Profiler, 20 mm x 15 mmX



Dear Besson,

I am interested in the following product: Laser Beam Profiler, 20 mm x 15 mm

I am interested in:

an offer
Information material
a call back and consulting
Please complete at least the mandatory fields marked with *.



* Title:

Academic Degree:

First Name:

* Last Name: * Last Name:

* Company Name: * Company Name:

Company Address:

* Street: * Street:

* Zip Code: * Zip Code:

* City: * City:


* E-Mail: * E-Mail:

* Phone: * Phone:

Text:



* What do you see in picture 2?* What do you see in Picture 2?

laserdiode laserschutzbrille laserschutzfenster leistungsmessgerät


Bitte auswählen:Please select:    Diode    Gauge    Safety Goggles    Safety Windows



Please check red marked fields.




Your request has been sent successfully. You will be contacted as soon as possible.




Product description
14bit camera system TaperCamD (2/3" CCD/USB2.0) with fiber optica taper 20 x 15 mm

The TaperCamD system was designed for the analysis of extended laser beams with a compact, high resolution 14-Bit digital CCD camera. The camera features a 1.4 MPixel CCD-chip with 6.45 x 6.45 µm pixel size and 9,0 x 6,7 mm (2/3") full active area. Together with the fiber optic taper an active area of 20 x 15 mm with an effective pixel size of 16 x 16 µm can be used.

A complete system consists of the camera head, a USB2.0 interface, connecting cable (3 m) and software. The camera is powered via the USB port, so there is no need for an additional power supply.

The CCD version of the TaperCamD product family is used mainly to measure extended optical structures and spots of cw and pulsed lasers or other optical sources. Due to the high SNR is is also the best choise to measure the spatial distribution of very weak optical signals.

Highlights
  • 9.0 x 6.7 mm active chip area with 6.45 x 6.45 µm pixel, 1.4 MPixel, fiber optic taper (not detachable)
  • Wavelength range from 350 nm to 1150 nm.
  • Pulsed laser auto-trigger and synchronisation; TTL (In/Out)
  • Exposure time manual or automatic between 40 µs and 1024 ms
  • Variable active area on chip from 16x16 pixels
  • Field-replacable CCD chip
  • No external power supply needed

Options

The camera is compatible with all C-mount optics/lenses. As standard, the camera comes without the faceplate in front of the chip. To protect the sensor chip and to eliminate ambient light, the cameras are delivered with a ND filter in a C-mount ring. This low distortion face plate is carefully selected for laser applications and mounted at a certain angle in the mounting ring. To measure lasers of less than 400 nm wavelength, the filter has to be changed to a fused silica based attenuator.

Parameter:Specification
Sensor:2/3" CCD, 1.4 MPix
Pixel:1392 x 1040 pixel, 6.45 x 6.45 µm each
Active area:9.0 x 6.7 mm
Measurable sources:cw, 1 Hz - 25 kHz single pulse capture rate
Trigger:auto-(optical), synchronous & variable delay, TTL-In/Out
Wavelength range:
Standard:355 - 1150 nm
-IR:1480 - 1680 nm (direct Phosphoros coating)
Dynamic range:
cw:43.5 dB; Signal/RMS-Noise 20.000:1
Pulsed:7.5 dB
Smallest Beam diameter:ø 200 µm
Attenuator:1x OD Filter (OD0.5/1/2/4/5) with C-Mount thread incl.
Updaterate:1-2 Hz dependend on PC and selected area size
PC-requirements:1 GHz Pentium, Windows 2000/XPP, 512 MB RAM, 10 MB Drive Space, Monitor 1024 x 768 Pix. USB2.0 interface


We are happy to offer a free product demonstration within Germany/Austria/Switzerland. In case of interest please contact Laser 2000 by phone or mail to arrange a presentation.
