ThinFilm measurement system

Reference: STE-ThinFilm

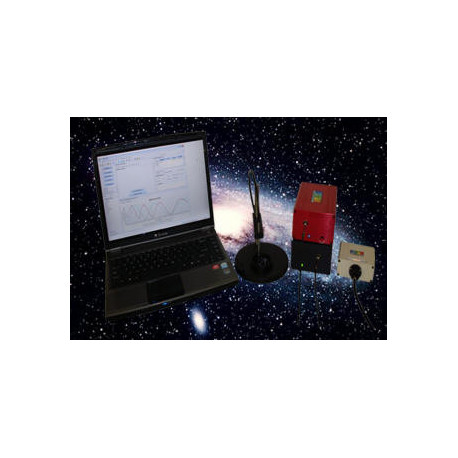

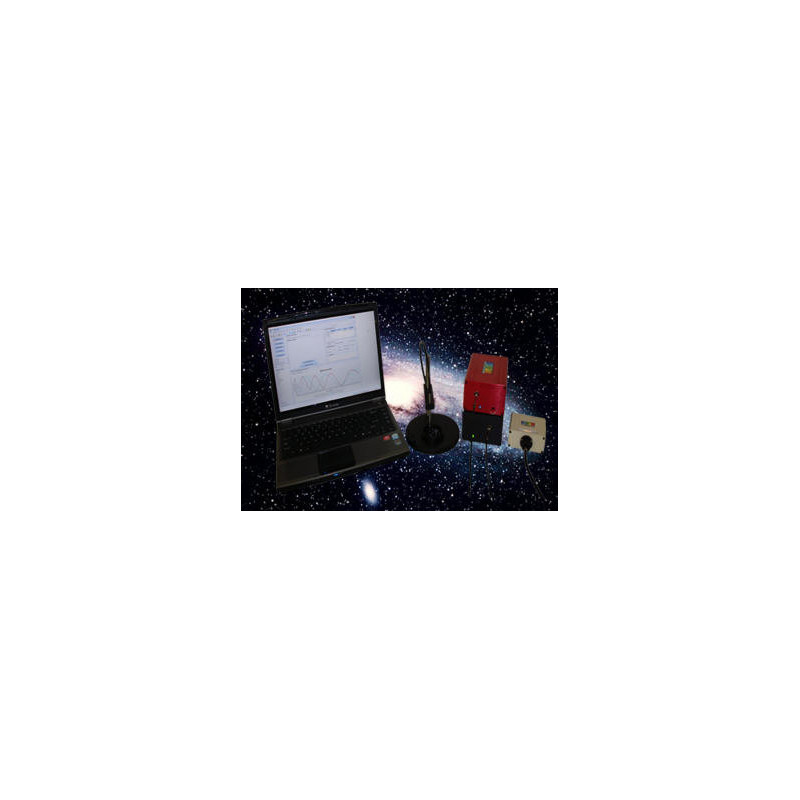

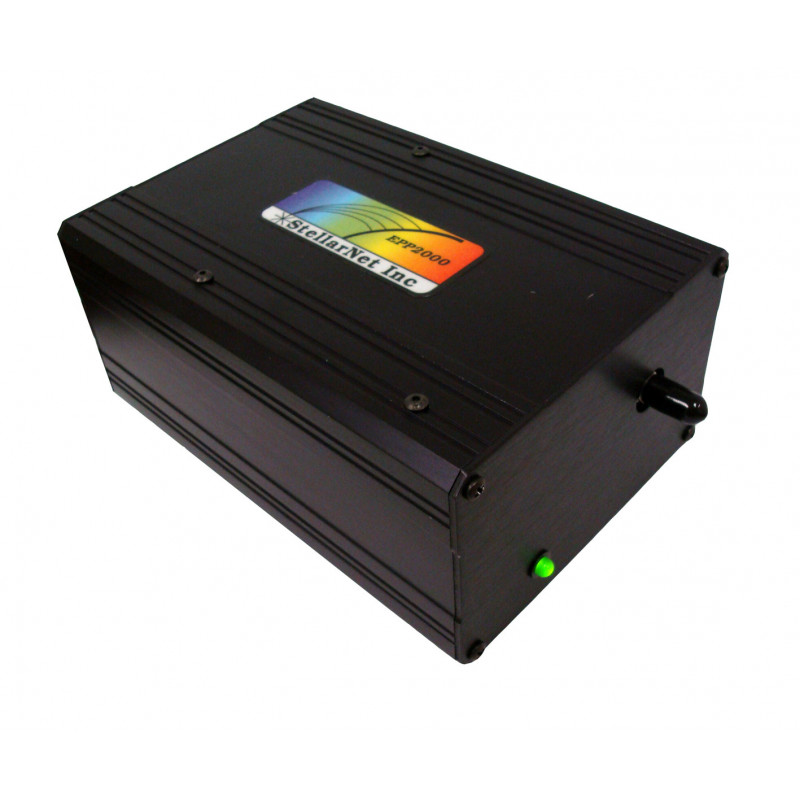

Sistemas preconfigurados basados en espectrómetros compactos con entrada en fibra óptica para aplicaciones de medida y análisis de capas finas (thin films)






Alexandre Besson
Business Unit Director
+33 5 57 10 92 84
a.besson@laser2000.fr
Product request: ThinFilm measurement systemX



Dear Besson,

I am interested in the following product: ThinFilm measurement system


I am interested in:

an offer
Information material
a call back and consulting
Please complete at least the mandatory fields marked with *.



* Title:

Academic Degree:

First Name:

* Last Name: * Last Name:

* Company Name: * Company Name:

Company Address:

* Street: * Street:

* Zip Code: * Zip Code:

* City: * City:


* E-Mail: * E-Mail:

* Phone: * Phone:

Text:




* What do you see in picture 2?* What do you see in Picture 2?

laserdiode laserschutzbrille laserschutzfenster leistungsmessgerät


Bitte auswählen:Please select:    Diode    Gauge    Safety Goggles    Safety Windows



Please check red marked fields.




Your request has been sent successfully. You will be contacted as soon as possible.





Product description
ThinFilmCompanion Software Measures Multilayer Film Structures

ThinFilmCompanion Features:
  • Real-time Spectral Capture and Instrument control
  • for Reflectance and/or Transmittance
  • Includes Large Library of Materials Data
  • Supports multilayer, freestanding, rough, and both
  • thick and thin layer structures
  • New materials can be easily added by measuring
  • corresponding sample or importing data from file
  • Supports Parameterized materials : Cauchy, Sellmeir, EMA
  • (effective-medium approximation), Harmonic
  • oscillator, Tauc-Lorentz oscillator, Drude-Lorentz


The Thickness and optical constants (n and k) can be measured quickly and easily using reflectance and/or transmittance spectroscopy. The measurement and analysis of the data provides results in seconds. USB connectivity and powerful user-friendly software make daily complex measurements quick and simple.

TFC software includes large library of materials data that enables measurement of the wide range of layer structures: multilayer, freestanding, rough, thick and thin layer structures are supported. New materials can be added easily by measuring corresponding sample or importing data from the text file.

The measurement process consists of two steps: data acquisition and data analysis. TFCompanion defines all the process in a measurement recipe and makes it transparent to the user. At the same time the user has the ability to store measured data and analyze it later.

TFCompanion supports Parameterized materials e.g. Cauchy, Sellmeir, EMA (effective-medium approximation), Harmonic oscillator, Tauc-Lorentz oscillator, Drude-Lorentz and many more approximations. These approximations represent optical dispersion of materials in desired spectral range using few coefficients that can be adjusted. For example, oxides are frequently represented using Cauchy and glasses using Sellmeir approximation, amorphous materials (e.g. SiNx, aSi) can be represented using Tauc-Lorentz and phasemixed materials (e.g. poly-Si) using EMA approximation.

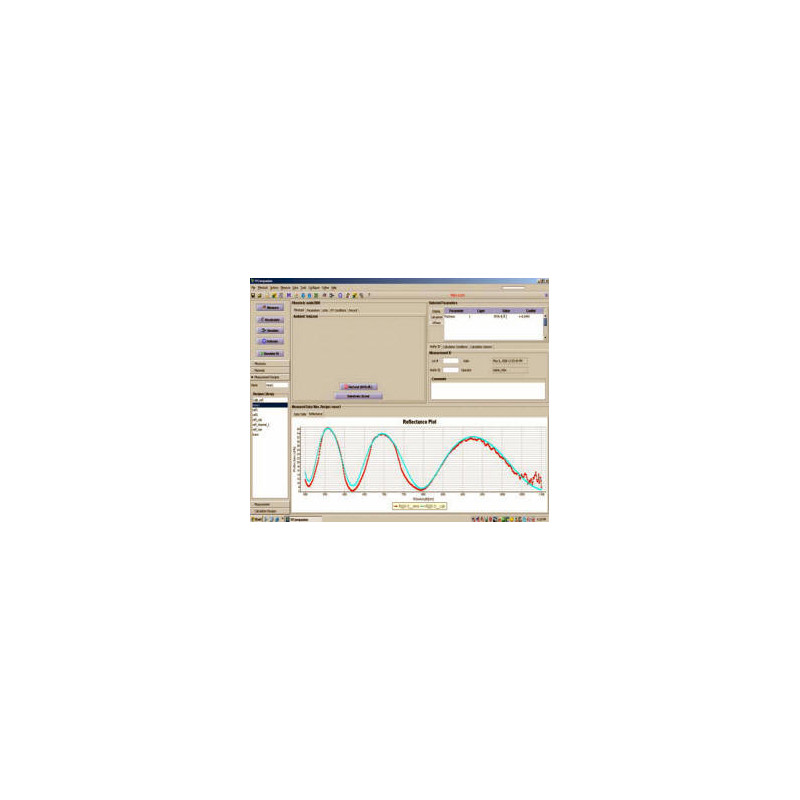

Measurements are made using: reflectance/transmittance spectroscopy which measures the optical response of the layer structure. The user creates an optical model of the layer structure and uses data analysis to determine physical properties: the results are inferred from the best fit of measured and modeled data. TFCompanion provides many options to easily analyze simple and most complex filmstacks: graded layers, periodic structures, very thick films, films on thin substrates, multi-sample measurements, etc. Simulation and error-estimator tools allow user better understand data and the expected precision.

During in-situ, in-line or other long running measurements conditions like surface roughness, ambient light, etc. maybe changing. TFCompanion supports roughness and scaling correction that allows factoring in these effects.
