Colorimeter for display measurement

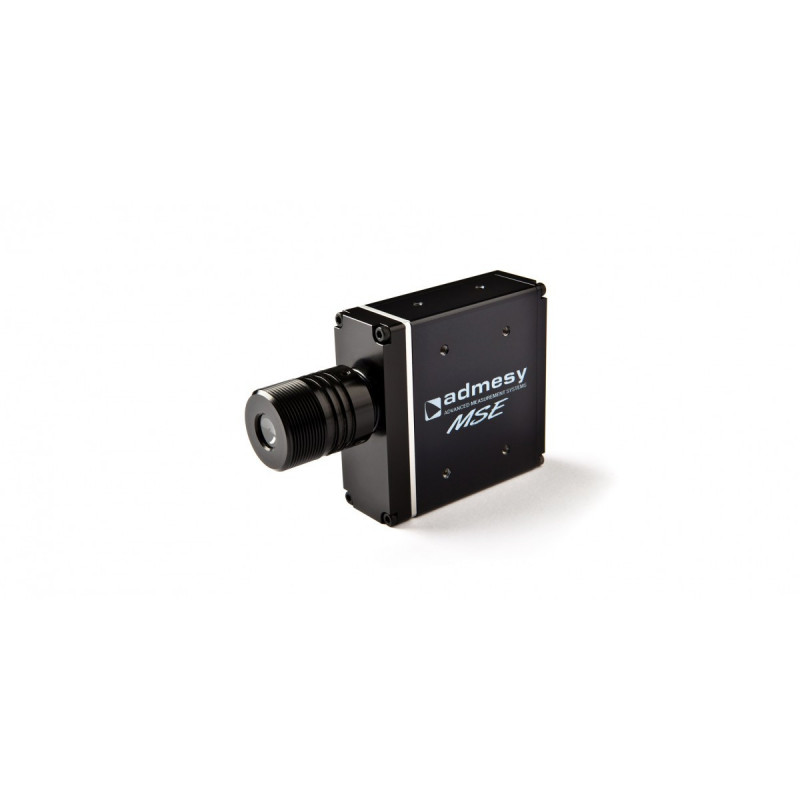

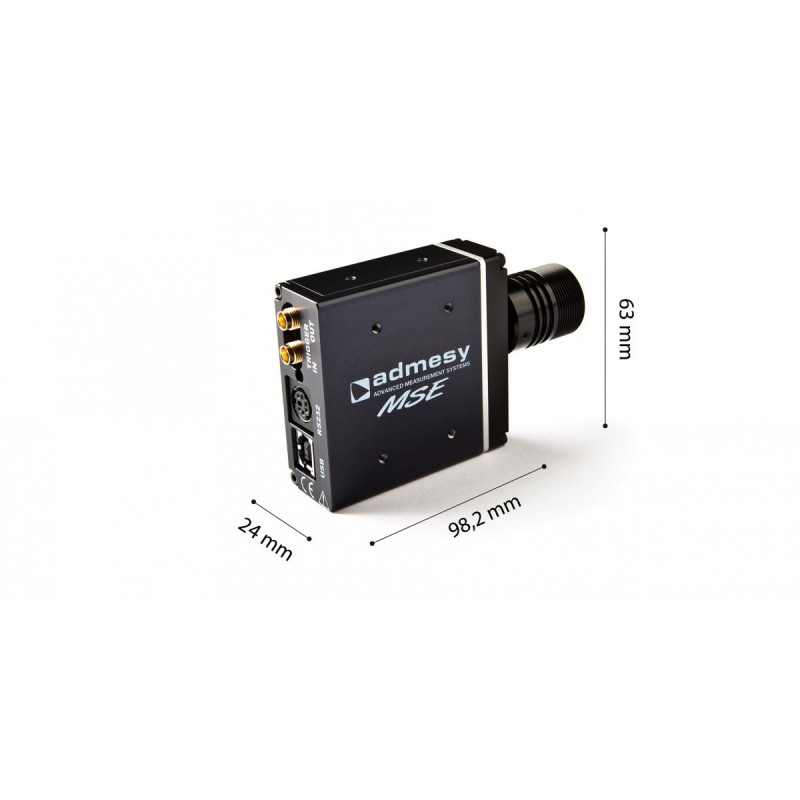

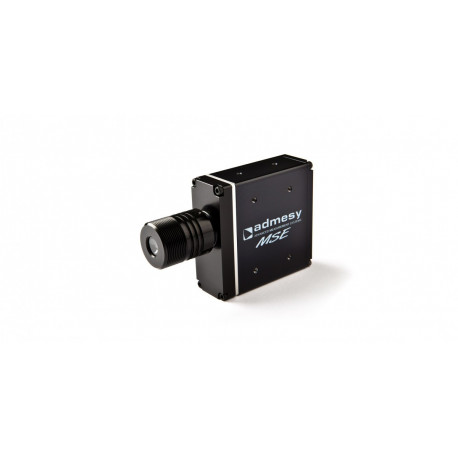

High speed colorimeter from Admesy

The MSE Series of high speed colorimeters offers a unique combination of high speed and accurate colour measurement capabilities packed in a robust jacket. The MSE colorimeter is available in 10 mm spot size and MSE+ with Wide Dynamic Range in 10 mm and 20 mm spot size. Thanks to its supreme quality, robustness of both hardware and software and its compact size, the MSE is the ultimate choice for in-line colour measurement applications. Thanks to its build-in mechanical shutter, dark measurements are carried out easily and accurately. The MSE Series are predominantly found inline in display production facilities, their customers or the adjacent R&D departments to handle white point adjustment, uniformity, flicker, reaction time and general colour quality control.

Highlights of the high speed colorimeter

• Colour measurement even at low luminance level
• Colour measurement in XYZ, Yxy, Yu’v’
• Other colour spaces available via a supplied colour library
• Fast colour measurement: 140 measurements/second at luminance level 200 cd/m2
• High speed luminance (Y) function: 22.000 luminance samples/second
• Trigger in and output for inline applications
• Mechanical shutter for accurate dark level measurement
• USB and RS232 communication interface

Specifications of the high speed colorimeter

Interfaces

Power ratings
