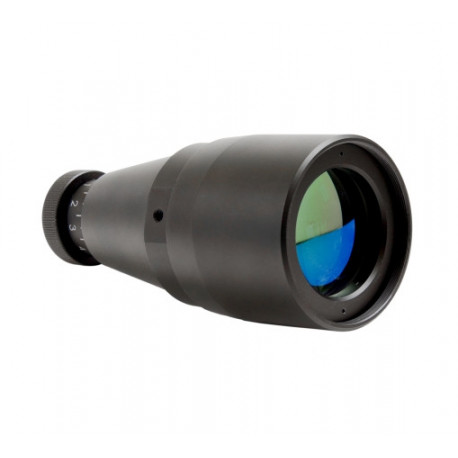

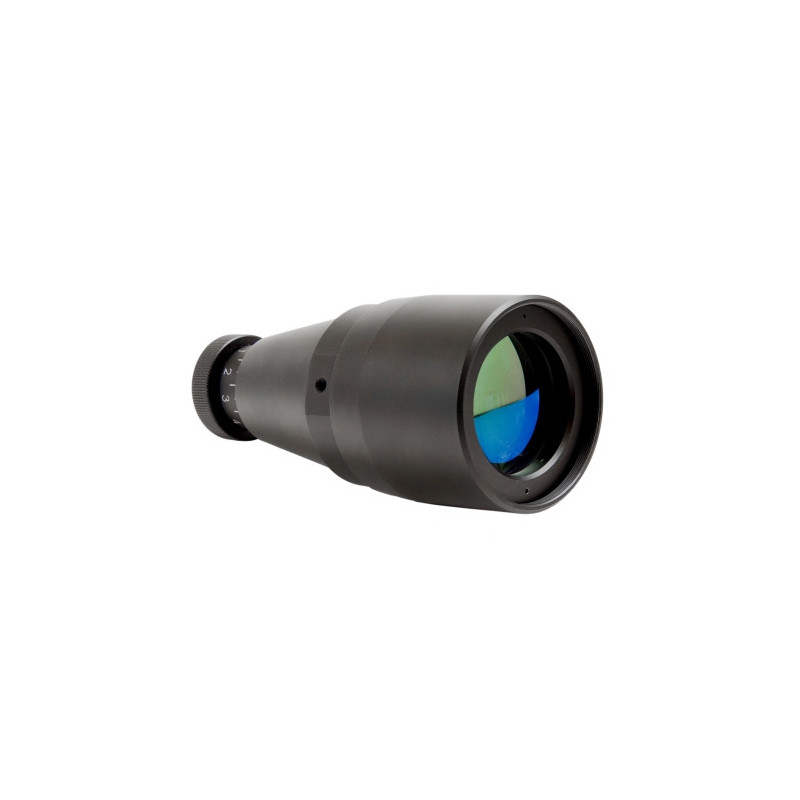

beam reducer - Afocal View larger

beam reducer - Afocal

Reference: DAT-BE

This optical beam reducer to be connected to the C-mount a camera WinCamD-ray analysis is used when the beam diameter of the laser is much greater than the sensor chip or of the taper.

Alexandre Besson
Business Unit Director
+33 5 57 10 92 84
Product request: beam reducer - AfocalX

Dear Besson,

I am interested in the following product: beam reducer - Afocal

I am interested in:

an offer
Information material
a call back and consulting
Please complete at least the mandatory fields marked with *.

* Title:

Academic Degree:

First Name:

* Last Name: * Last Name:

* Company Name: * Company Name:

Company Address:

* Street: * Street:

* Zip Code: * Zip Code:

* City: * City:

* E-Mail: * E-Mail:

* Phone: * Phone:


* What do you see in picture 2?* What do you see in Picture 2?

laserdiode laserschutzbrille laserschutzfenster leistungsmessgerät

Bitte auswählen:Please select:    Diode    Gauge    Safety Goggles    Safety Windows

Please check red marked fields.

Your request has been sent successfully. You will be contacted as soon as possible.


Product description
What diameter can be collected?
The most frequently sold systems UCD12and UCD23 has a shorter side of the chip (5 or 7 mm).
It follows from this - always assuming a Gaussian distribution of the beam profile - a maximum measurable beam diameter of 2 to 3 mm.
The TaperCam has 20 mm x 15 mm aperture, the possibility beam diameter up to max. To measure 8 mm.
Using a Afokals the beam diameter is reduced, so that a maximum beam diameter of up to 45 mm can be measured.
The following types of stand available:
<td "="">Productcode<td "="">DAT-BE-2x-X<td "="">DAT-BE-5x-X<td "="">DAT-BE-10x-X<td "="">DAT-BE-15x-X
Reduction ratiomax. Apertur
2x13 mm
5x20 mm
10x30 mm
15x45 mm

Please select the appropriate coating of the wavelength range:

<td "="">Productcode<td "="">DAT-BE-xy-A<td "="">DAT-BE-xy-B<td "="">DAT-BE-xy-C
Wavelength range (nm)
350 ... 650
650 ... 1050
1050 ... 1620
The current software can be downloaded for free from the manufacturer's website.
The complete documentation for beam profile analysis of DataRay click here.
