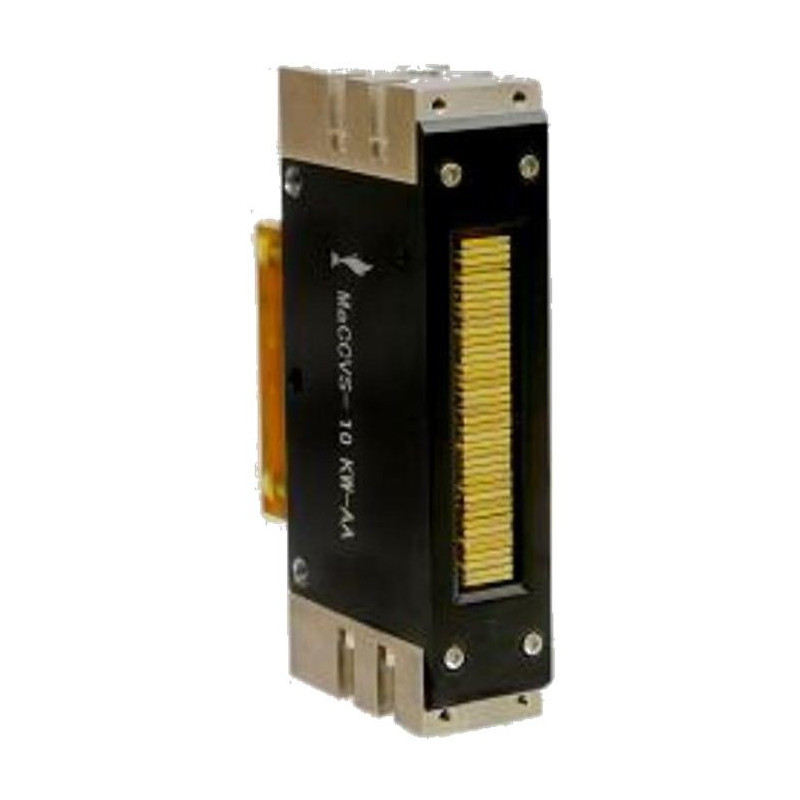

Vertical Stack Laser Diode Active Cooled

Reference: FOL-VS-xxx

Focuslight CW and QCW high-power active cooled Vertical Stacks with 2 to 40 bars at 100 to 250 W optical power output per bar (@ 808 - 980 nm)






Alexandre Besson
Business Unit Director
+33 5 57 10 92 84
a.besson@laser2000.fr
Product request: Vertical Stack Laser Diode Active CooledX



Dear Besson,

I am interested in the following product: Vertical Stack Laser Diode Active Cooled

I am interested in:

an offer
Information material
a call back and consulting
Please complete at least the mandatory fields marked with *.



* Title:

Academic Degree:

First Name:

* Last Name: * Last Name:

* Company Name: * Company Name:

Company Address:

* Street: * Street:

* Zip Code: * Zip Code:

* City: * City:


* E-Mail: * E-Mail:

* Phone: * Phone:

Text:



* What do you see in picture 2?* What do you see in Picture 2?

laserdiode laserschutzbrille laserschutzfenster leistungsmessgerät


Bitte auswählen:Please select:    Diode    Gauge    Safety Goggles    Safety Windows



Please check red marked fields.




Your request has been sent successfully. You will be contacted as soon as possible.




Product description
The Focuslight CW and QCW high-power active cooled Vertical Stacks offer high quality and reliability.

  • CW and QCW
  • Semiconductor Chips made in Germany
  • Po: 100 - 250 W / Bar
  • Wavelengths: 808 - 980 nm
  • Number of Bars: 2 - 40
Applications: pumping, industry, scientific research

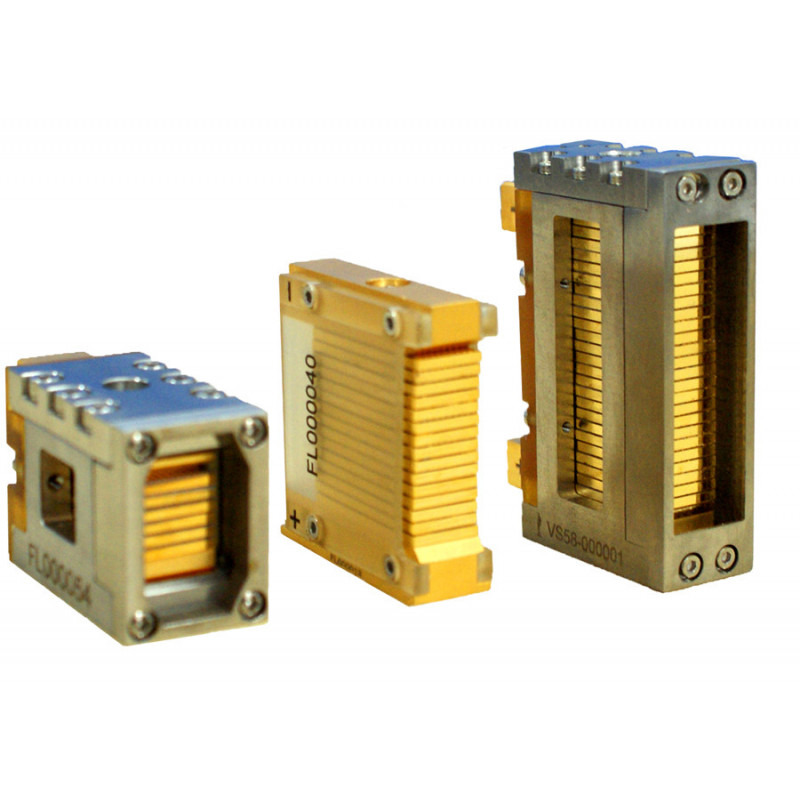

Vertical Stack VS series (CW)
Micro Channel Water Cooled
Power per Bar: 60, 80, 100, 120 W
Wavelengths: 808, 915, 940, 976, 980 nm
Number of Bars: 2 - 25
Bar-to-Bar Spacing: 1.8 mm

Vertical Stack VS series (QCW)
Micro Channel Water Cooled
Power per Bar: 150, 200, 250 W
Wavelengths: 808, 940 nm
Number of Bars: 2 - 40
Bar-to-Bar Spacing: 1.8 mm

Hard Solder Vertical Stack HVSMaCC series (QCW)
Macro Channel Water Cooled
Power per Bar: 150, 200, 250 W
Wavelengths: 808, 940 nm
Number of Bars: 2 - 40
Bar-to-Bar Spacing: 1.7 mm


Features:
  • AuSn bonding
  • Long storage time
  • High power
  • Uniform beam profile
  • Harsh environment applications
For any other special requirements please feel free to contact us.
