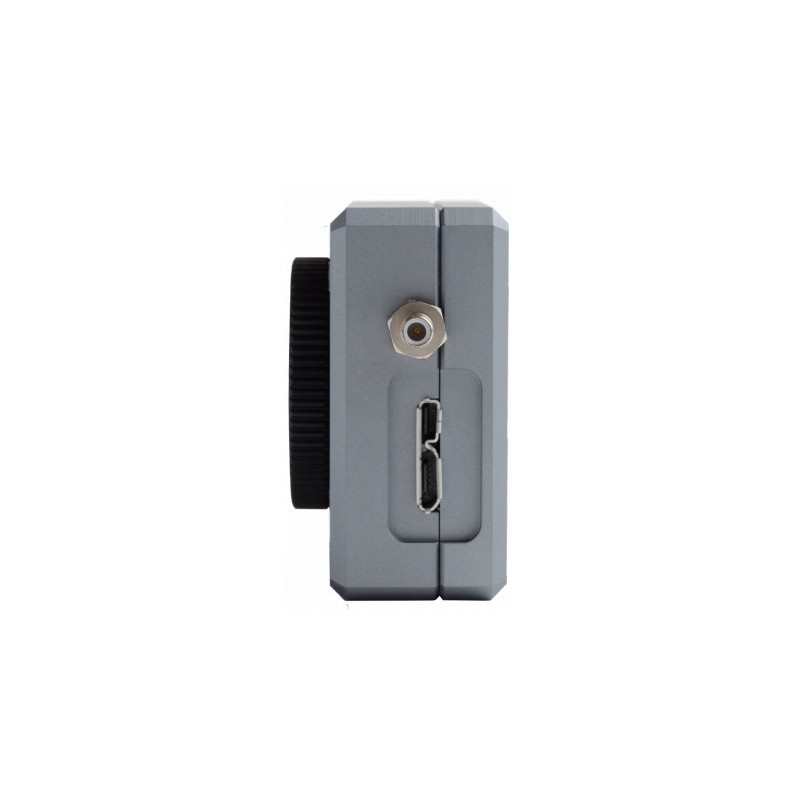

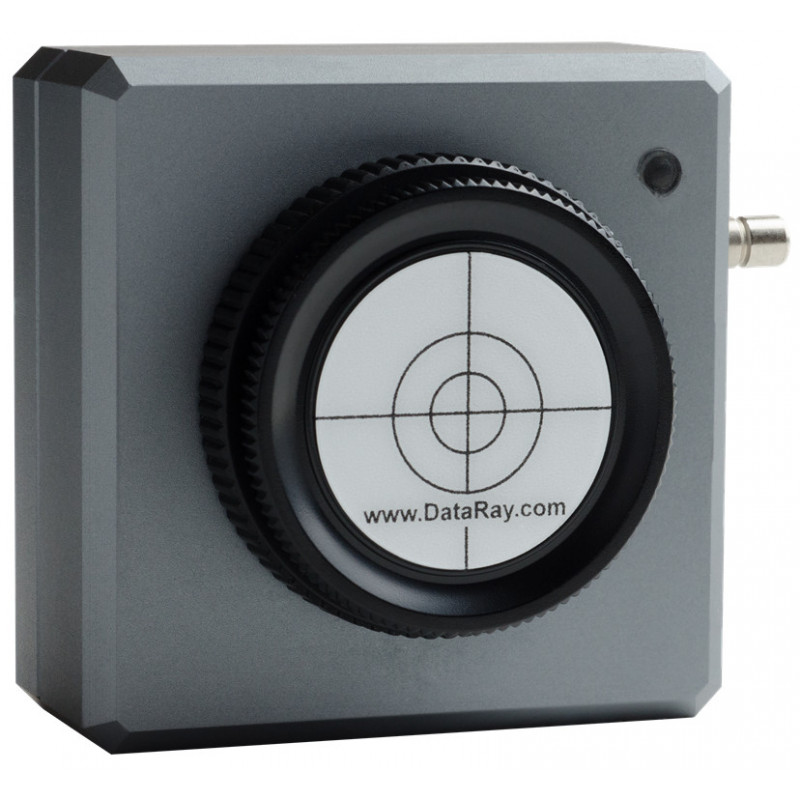

Laser Beam Profiler, 6,5 mm x 4,8 mm

Reference: DAT-WinCamD-LCM

DataRay's WinCamD LCM beam profile camera provides now USB 3.0 frame rates of 30Hz at very high resolution.

Alexandre Besson
Business Unit Director
+33 5 57 10 92 84
Product request: Laser Beam Profiler, 6,5 mm x 4,8 mmX

Dear Besson,

I am interested in the following product: Laser Beam Profiler, 6,5 mm x 4,8 mm

I am interested in:

an offer
Information material
a call back and consulting
Please complete at least the mandatory fields marked with *.

* Title:

Academic Degree:

First Name:

* Last Name: * Last Name:

* Company Name: * Company Name:

Company Address:

* Street: * Street:

* Zip Code: * Zip Code:

* City: * City:

* E-Mail: * E-Mail:

* Phone: * Phone:


* What do you see in picture 2?* What do you see in Picture 2?

laserdiode laserschutzbrille laserschutzfenster leistungsmessgerät

Bitte auswählen:Please select:    Diode    Gauge    Safety Goggles    Safety Windows

Please check red marked fields.

Your request has been sent successfully. You will be contacted as soon as possible.


Product description
14bit camera system WinCamD (CMOS/USB2.0)

The WinCamD-system is the standard CMOS system for laser beam analysis. It has an compact, high resolution 14-Bit digital camera. The camera features a 1.4 MPixel CMOS-chip with 4.65 x 4.65 µm pixel size and 6.5 x 4.8 mm (1/2") full active area.

A complete system consists of the camera head, a USB2.0 interface, connecting cable (3 m) and software. The camera is powered via the USB port, so there is no need for an additional power supply.

The CMOS version of the WinCamD product family is used mainly to measure small optical structures and spots of cw and pulsed lasers or other optical sources. Due to the high SNR is is also the best choise to measure the spatial distribution of very weak optical signals.

  • 6.5 x 4.8 mm active chip area with 4.65 x 4.65 µm pixel, 1.4 MPixel
  • Wavelength range from 355 nm to 1150 nm.
  • Pulsed laser auto-trigger and synchronisation; TTL (In/Out)
  • Exposure time manual or automatic between 40 µs and 1000 ms
  • Variable active area on chip from 16x16 pixels
  • Field-replacable CMOS chip
  • No external power supply needed


The camera is compatible with all C-mount optics/lenses. As standard, the camera comes without the faceplate in front of the chip. To protect the sensor chip and to eliminate ambient light, the cameras are delivered with a ND filter in a C-mount ring. This low distortion face plate is carefully selected for laser applications and mounted at a certain angle in the mounting ring. To measure lasers of less than 400 nm wavelength, the filter has to be changed to a fused silica based attenuator.

Special UV- converter optics (1 - 355nm) or an IR-version of the camera (up to -1360 nm or additional 1475 - 1600 nm) extend the application range of the system. As an option there is also an IR-converter optic for the telecom wavelength range around 1550nm available.

In order to measure larger beams we offer a TaperCam-version of the WinCamD. The TaperCam features a unique ordered fiberoptic bundle, mounted directly on the chip. This leads to a deformation free reduction of the incoming intensity distribution. The taper is not detachable.

Sensor:1/2"CMOS, 1.4 MPix
Pixel:1360 x 1040 pixel, 4.65 x 4.65 µm each
Active area:6.5 x 4.8 mm
Measurable sources:cw, 1 Hz - 20 kHz single pulse capture rate
Trigger:auto-(optical), synchronous & variable delay, TTL-In/Out
Wavelength range:
-UV :1 - 355 nm (additional converter optic)
Standard:355 - 1150 nm
-1310:1290 - 1330 nm (residual responsivity, tested)
-IR:1480 - 1680 nm (direct Phosphoros coating)
-IR-Adapter:1480 - 1680 nm
Dynamic range:
cw:43.5 dB; Signal/RMS-Noise 20.000:1
Pulsed:7.5 dB
Smallest Beam diameter:ø 50 µm
Attenuator:1x OD Filter (OD0.5/1/2/4/5) with C-Mount thread incl.
Updaterate:1-2 Hz dependend on PC and selected area size
PC-requirements:1 GHz Pentium, Windows 2000/XP Pro/Vista/7, 512 MB RAM, 10 MB Drive Space, Monitor 1024 x 768 Pix.USB2.0 interface
