BeamR, rot. Single Plane Scan

Reference: DAT-BeamR2

The scanning system BeamR with rotating slots for the measurement of lasers with diameters of 0.5 microns to about 3 mm

Alexandre Besson
Business Unit Director
+33 5 57 10 92 84
Product request: BeamR, rot. Single Plane ScanX

Dear Besson,

I am interested in the following product: BeamR, rot. Single Plane Scan

I am interested in:

an offer
Information material
a call back and consulting
Please complete at least the mandatory fields marked with *.

* Title:

Academic Degree:

First Name:

* Last Name: * Last Name:

* Company Name: * Company Name:

Company Address:

* Street: * Street:

* Zip Code: * Zip Code:

* City: * City:

* E-Mail: * E-Mail:

* Phone: * Phone:


* What do you see in picture 2?* What do you see in Picture 2?

laserdiode laserschutzbrille laserschutzfenster leistungsmessgerät

Bitte auswählen:Please select:    Diode    Gauge    Safety Goggles    Safety Windows

Please check red marked fields.

Your request has been sent successfully. You will be contacted as soon as possible.


Product description

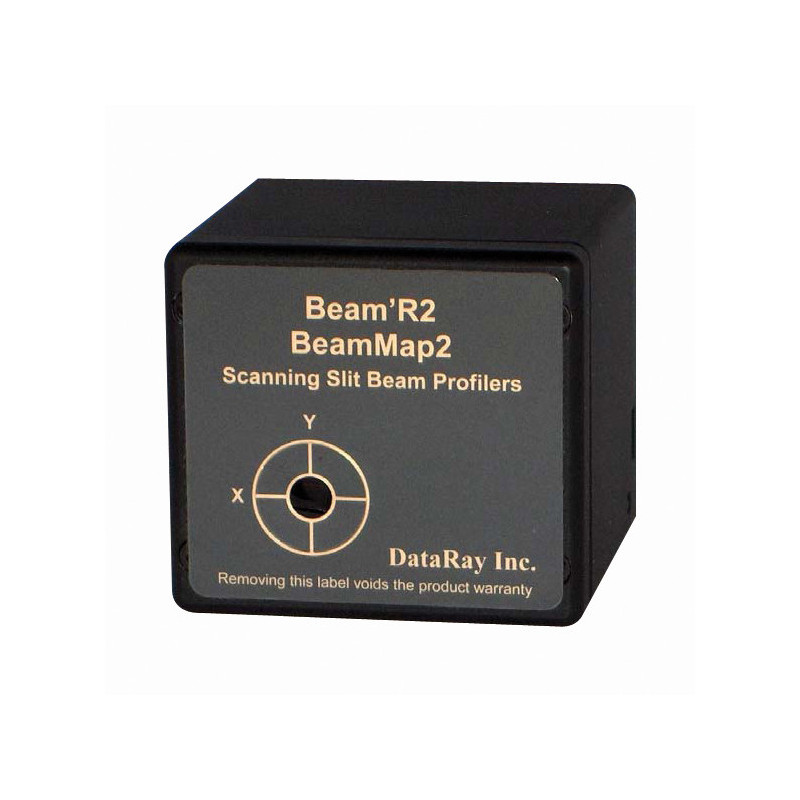

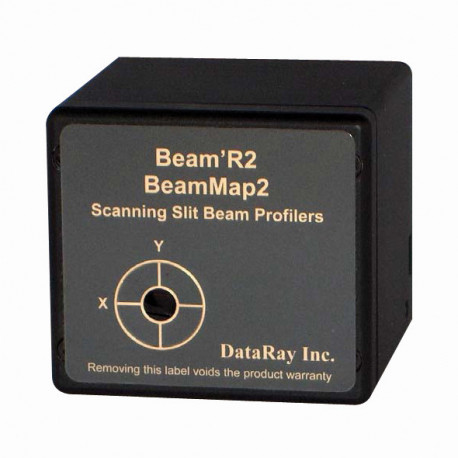

Single Plane Rot. Slit Scanning System BeamR


The BeamR shows the basic design of our scanning systems with rotating slits. It can be used for cw or qcw lasers. The puck (rotating disk) inside the scan head carries four different slits (2 XY slit pairs) in one plane rotating perpendicular through the beam. Due to the slit pairs with different slit width, we are able to measure spot dimensions between 0.5 µm and 3 mm without the need to change slits, by changing the calculation method from scanning slit to knife edge. There is no possibility for the user to change the slits or the puck respectively.

The scan head can be rotated around the optical axis. An integrated encoder shows the effective angle in the software. This allows a very easy location of the main axis of an elliptical beam by rotating the head around the axis. The measurement speed is > 3 Hz. Profiles are scanned with 12-bit intensity resolution. Spatial resolution is < 0.1 µm.

Slits are of true 2D design and are made applying a lithographic process, suitable for highest power densities. The advantage of this design is to avoid any reflection or tunnel effect with multiple reflections within the propagation direction of the light, when measuring highly divergent sources.

The BeamR is our most inexpensive Single-Plane Scanning Slit solution and is used mainly to measure beamprofiles of small intensity distributions. A measurement of pulsed sources with pulse repetition rates of >100 Hz and high duty cycle is possible as well. The maximum optical power to be measured is 1 W total or 1 mW/µm2 resp.

The complete system consists of the scan head, a PCI-card (1/2 length), the connecting cable and the Software with manual.


  • Wavelength range from 190 nm - 4 µm with four different detectors
  • 12 Bit Digitalisation
  • XY profiles in real time (> 3 Hz)
  • Resolution < 0.1 µm
  • Smallest beam diameter 0.5 µm
  • Optical dynamic range 45 dB

Laser systems:cw, pulsed rep.rate > 100kHz high duty cycle
Wavelength range:
Si-Detector: (nm)190 - 1150
InGaAs-Detector: (nm)800 - 1700
extended-InGaAs (nm):1000 - 2200
InAs-Detector: (µm)1.5 - 4 (on request only)
max. optical power1 W or 1 mW/µm? for details please see chart
Dynamic range: (dB)45
Measurement range:0.5 µm to 3 mm (ø 2 mm @ InAs)
Resolution:0.1 µm or 0.5% of beam diameter

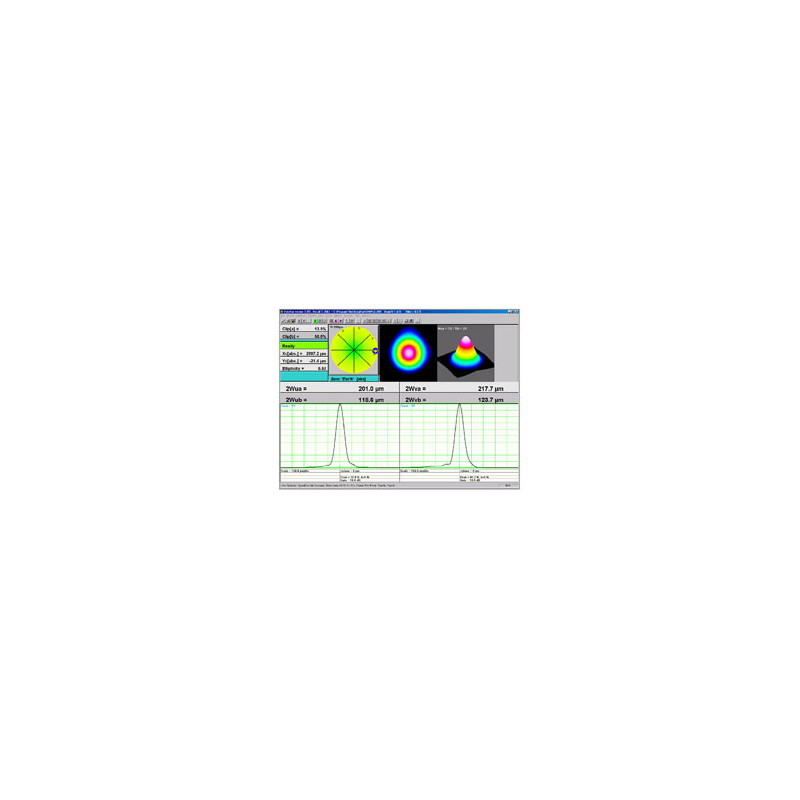

Profiles:X ; Y or X&Y, lin. or log. display / 2D; 3D
Profil parameters:beamdiameter / gaussian fit / Ø acc. to 2.moments / Knife Edge / centroid / ellipticity / beam pointing etc. please look at Software
Update Rate: (Hz)3.6
Analysis:Pass/Fail, Avaraging, standard deviation
Dimension:see drawing in data sheet
