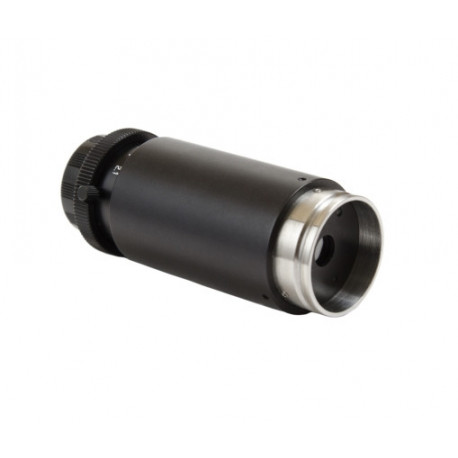

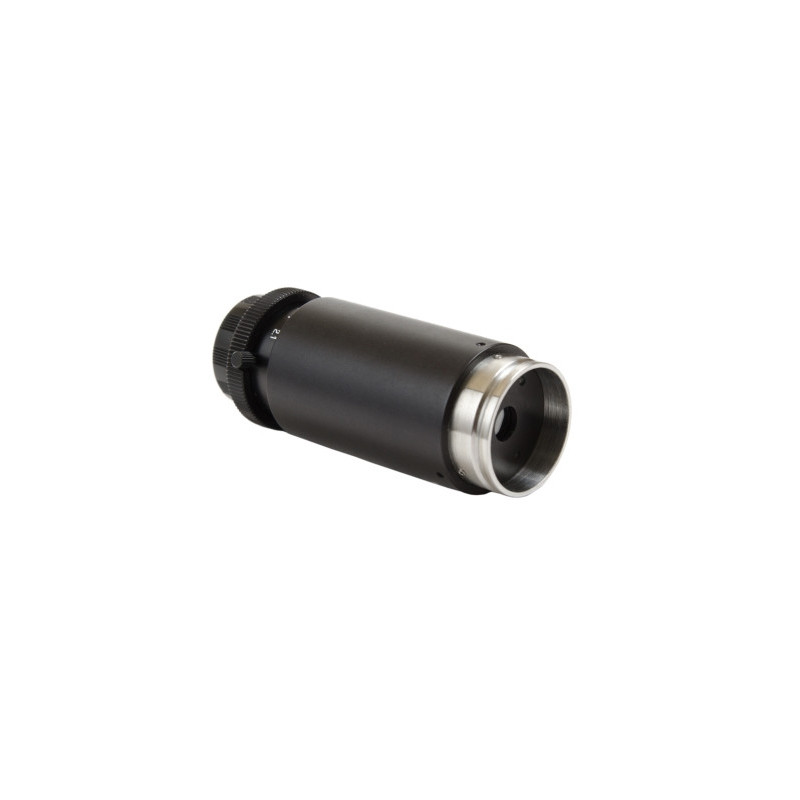

converter optic, UV

Reference: DAT-Converter-UV

By means of the described UV converter optics the measurement of the intensity distribution of UV laser radiation with standard Si-based CCD or CMOS cameras is possible.

Download
Print
Send to a friend
Send to a friend
converter optic, UV
By means of the described UV converter optics the measurement of the intensity distribution of UV laser radiation with standard Si-based CCD or CMOS cameras is possible.
Recipient :
Name ^* :
E-mail ^* :
Kommentar
^* Required fields
or Cancel
Remove this product from my favorite's list.
Add this product to my list of favorites.

Alexandre Besson
Business Unit Director
+33 5 57 10 92 84
a.besson@laser2000.fr

Product request: converter optic, UVX

Dear Besson,

I am interested in the following product: converter optic, UV

I am interested in:

an offer
Information material
a call back and consulting

Please complete at least the mandatory fields marked with *.

* Title:

Academic Degree:

First Name:

* Last Name: * Last Name:

* Company Name: * Company Name:

Company Address:

* Street: * Street:

* Zip Code: * Zip Code:

* City: * City:

* E-Mail: * E-Mail:

* Phone: * Phone:

Text:

* What do you see in picture 2?* What do you see in Picture 2?

laserdiode

Bitte auswählen:Please select: Diode Gauge Safety Goggles Safety Windows

Please check red marked fields.

Your request has been sent successfully. You will be contacted as soon as possible.

Product description

Description

In the UV converter optics special fluorescence plates transform incoming UV radiation into the VIS range. The transformed intensity distribution is imaged with an integrated high quality optic on the camera sensor chip.

All systems can be connected to the camera system with a C-mount thread and an additional 10 mm distance ring.

Highlights

4 different converter crystals
Different standard apertures, max. 47 mm
typ. resolution 5 µm
achromatic, diffraction limited optic
integrated iris aperture
maintenance free, no aging effects

Parameter:	Specification
max. avarage power:	4 W typ. (model dependend)
max. energy density:	0.5 J/cm2
dynamic range:	typ. 1:10.000
lin. range:	4 - 5 orders of magnitude (model dependend)
resolution:	5 - 10 µm (model dependend,laser parameter dependend)
