Product description
Description

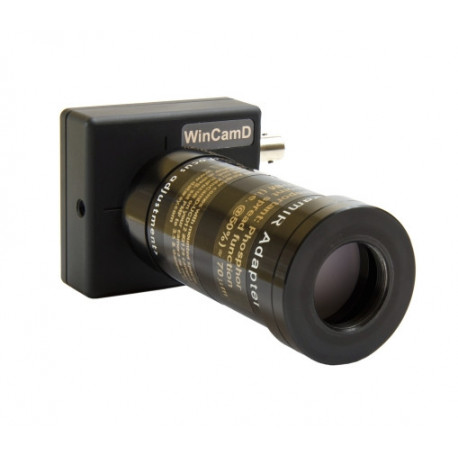

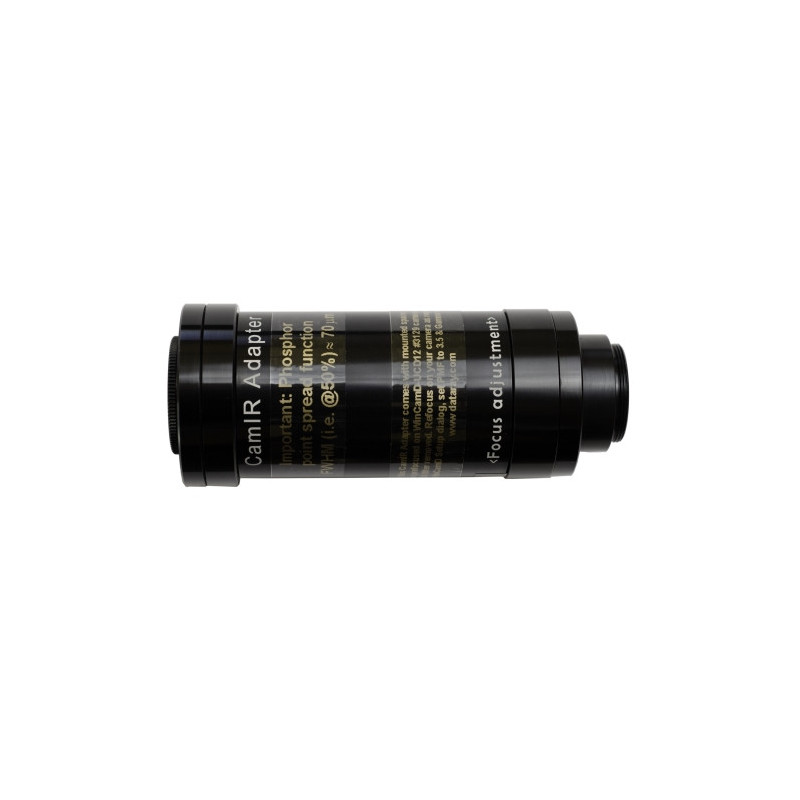

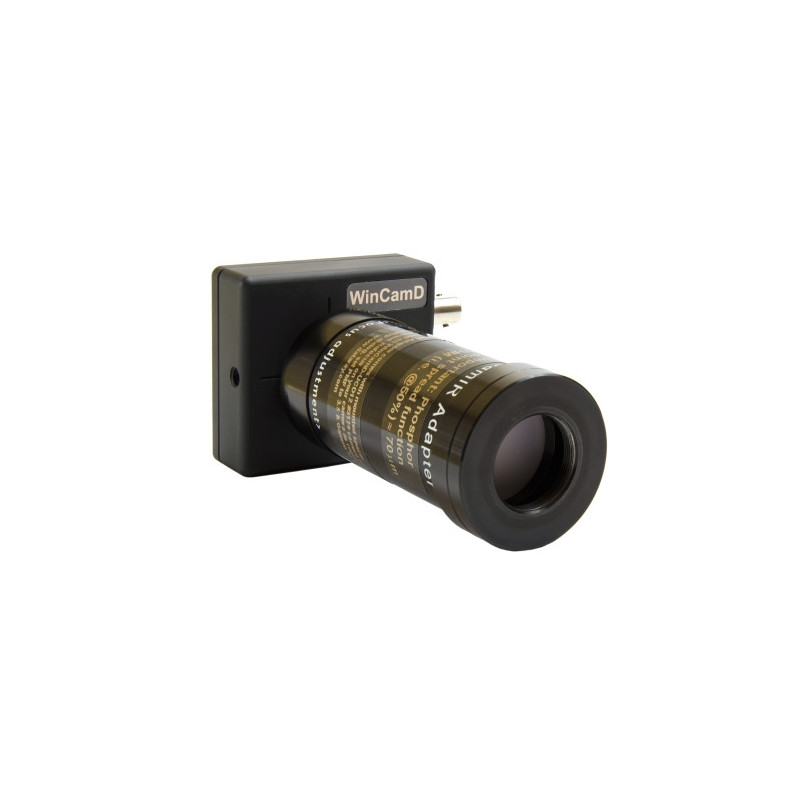

The IR-converter enables standard CCD cameras to image in the NIR range 1495-1595 nm. The converting module is inserted between a large format lens and a digital camera to give an instant imaging system which extends sensitivity into the telecoms wavelength bands.

Highlights
  • Extends the range of Si-based cameras to 1495 - 1595 nm
  • High resolution, low distortion and good uniformity
  • No image fading or lag
  • Large AR coated input window and optics
  • Cost effective

Parameter:Specification
Active Area:ø 27.5 mm
Spectral sensitivity:1495 to 1595 nm
Peak conversion:1510 and 1540 nm (no flat curve, multi-peak response)
Converted output:950 to 1075 nm
Distortion:-1.0% barell distortion (inverted image)
Linearity:non-linear
Spectral transmission:360 - 2000 nm @ F30.8
Max. illumination:1 W/cm2 (damage threshold)
Dynamic range:48 dB with digital cameras
Lens mount:C-Mount (adapters for others available on request)
Camera format:1/2" format or greater
Dimensions:ø 46 mm x 97 mm, 210 g
Operating temp. range:-10° to +40°C


Further information can be found on the datasheet as additional information for download.

Downloads - converter optic, IR

Dataray_NIR_Option

Dataray Accessory beam profiling NIR 1475_1600nm

Download (311.92k)
