Laser Beam Profiler, 14 mm x 11 mm

Reference: DAT-TaperCamD-UCD12

The TaperCamD-UCD12 system is specialized on the analysis of extended laser beams with a compact, high-resolution 14-bit CCD digital camera






Alexandre Besson
Business Unit Director
+33 5 57 10 92 84
a.besson@laser2000.fr
Product request: Laser Beam Profiler, 14 mm x 11 mmX



Dear Besson,

I am interested in the following product: Laser Beam Profiler, 14 mm x 11 mm

I am interested in:

an offer
Information material
a call back and consulting
Please complete at least the mandatory fields marked with *.



* Title:

Academic Degree:

First Name:

* Last Name: * Last Name:

* Company Name: * Company Name:

Company Address:

* Street: * Street:

* Zip Code: * Zip Code:

* City: * City:


* E-Mail: * E-Mail:

* Phone: * Phone:

Text:



* What do you see in picture 2?* What do you see in Picture 2?

laserdiode laserschutzbrille laserschutzfenster leistungsmessgerät


Bitte auswählen:Please select:    Diode    Gauge    Safety Goggles    Safety Windows



Please check red marked fields.




Your request has been sent successfully. You will be contacted as soon as possible.




Product description

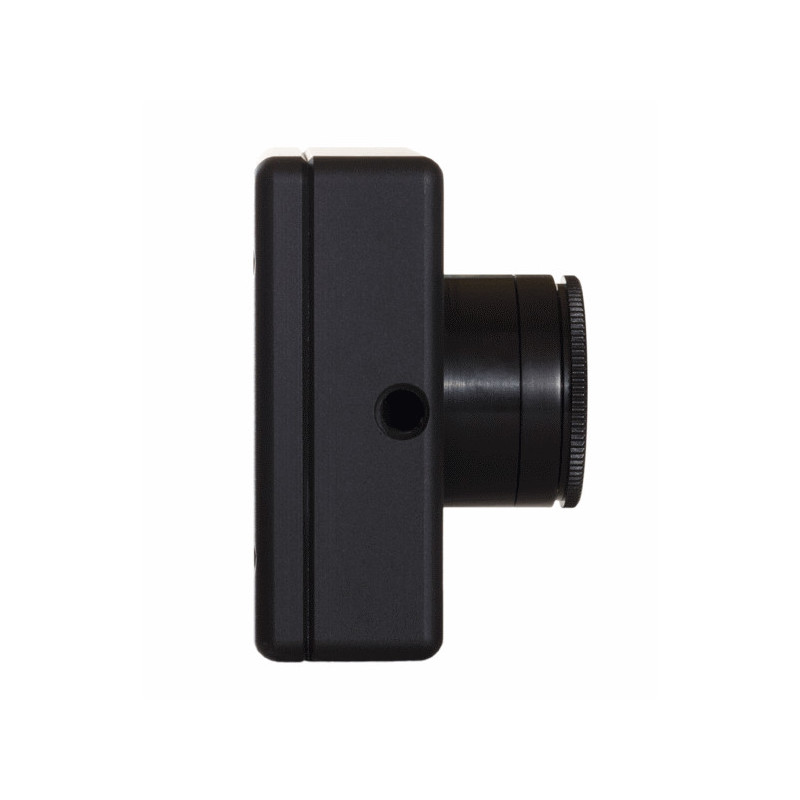

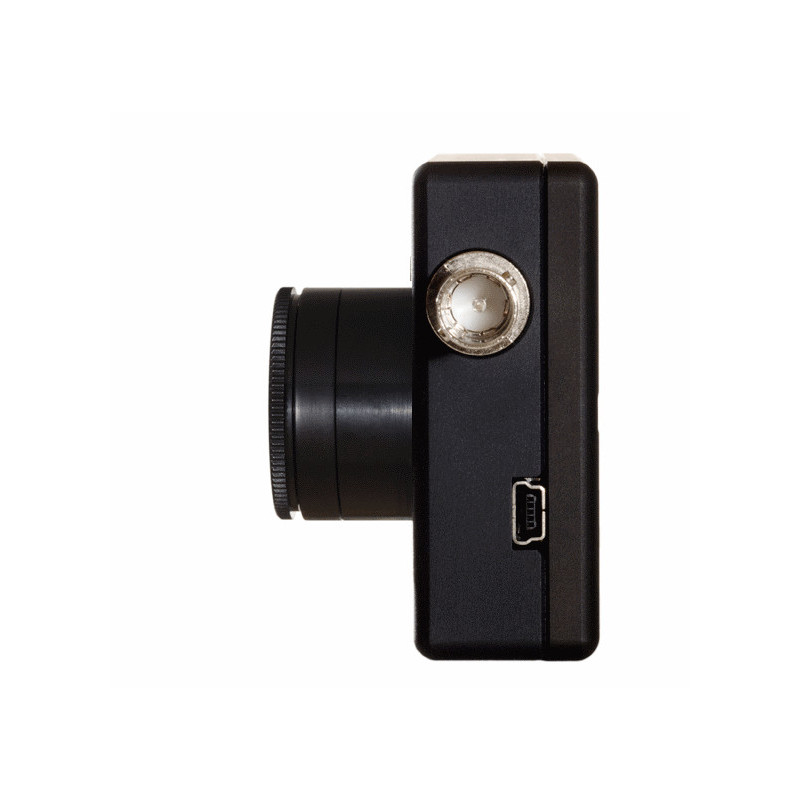

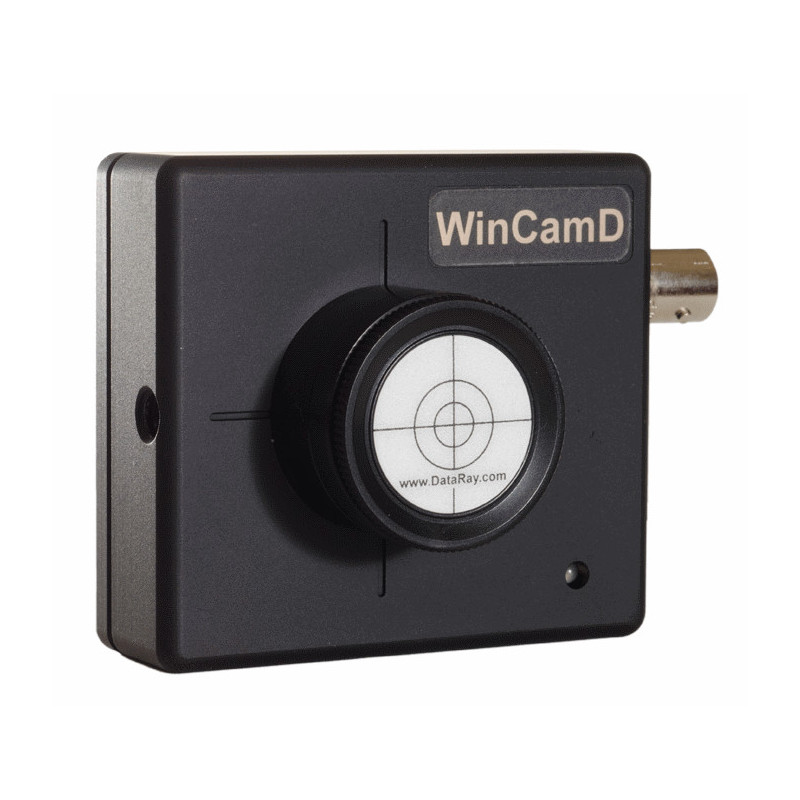

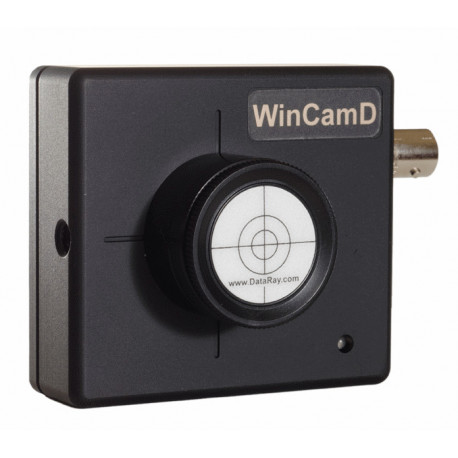

TaperCamD-UCD12 Laser Beam Analyser for Windows with 14Bit digital CCD camera with 1360*1024 Pixels, 4,65 µm (square)

incl. fixed fiber optic taper with 14 x 11 mm entrance aperture
USB 2.0 interface for PC/Notebook

Details:

  • OCX-WinCam-Software 6.00x for Windows 2000/XPP (ISO 11146)
  • inxl. free software updates and free use on an office PC
  • WinCam-1.4M Pixel, 14 Bit-Digital CCD camera
  • selectable active area from 16 x 16 Pixel to 1392 x 1040
  • effective pixel size: 16 x 16 µm
  • 14 Bit ADC integrated in camera head
  • adjustable electr. shutter from 40 µs to 1000 ms.
  • typ. Signal-Noise-Ratio: 1000:1
  • ext. trigger, 1 Hz - 25 kHz single pulse capture rate
  • variable trigger delay
  • variable gain settings
  • dynamic range +43.5 dB shutter (cw) / pulsed: > 7.5 dB
  • typ. updaterate (PC dependend) 1-2 Hz with full resolution (50 Hz with 64x64 Pix)
  • Wavelength range: 350 nm to 1150nm incl.
  • Low Distortion Face Plate for protection and daylight suppression
  • Manual, connecting cable

min. PC requirement:

  • PIV; 1 GHz, Win2000/XPP
  • USB 2.0 (500 mA interface)
