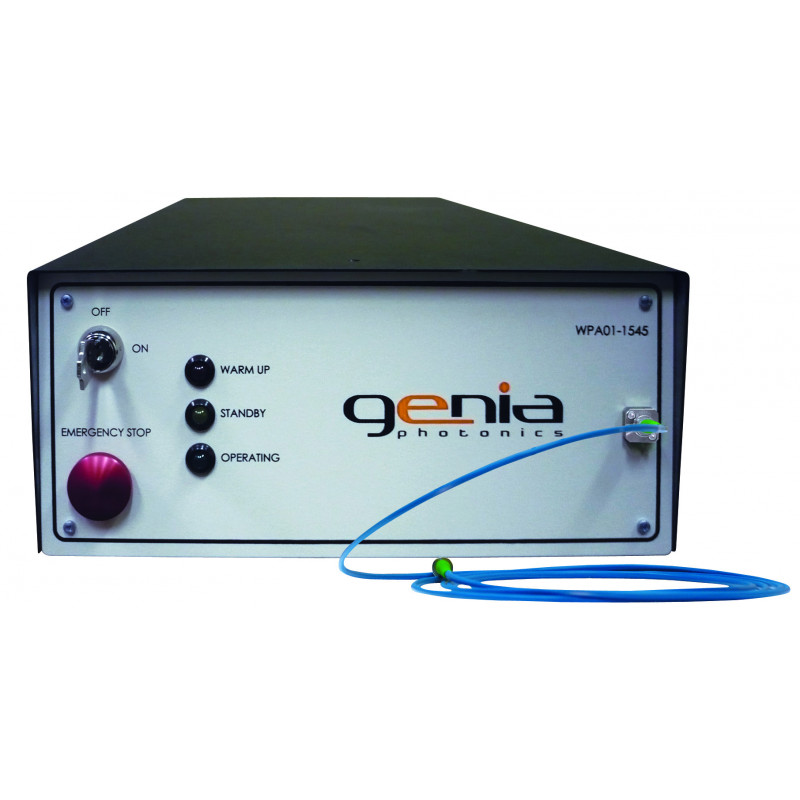

Picosecond Laser, programmable

Genia Photonics' laser is a fully programmable, uniquely agile fiber laser, tunable in wavelength and pulse width.

Using a utility software provided with the laser, you can program the sweeps to perform by specifying the type of curve to use, the range and other parameters. For instance, choose a linear in optical frequency and specify the start frequency, the stop frequency and the step duration. You can also control its output power.

Examples for standard setups:

Wavelength	Pulse duration	Repetition rate	Average power
850 nm	25 ps	200 MHz	4 mW
1064 nm	22 ps	40-120* MHz	100 mW
1064 nm	90-2000* ps	0.2-125* MHz	10 W
1020-1080* nm	22 ps	40-120* MHz	100 mW
1530-1562* nm	25 ps	10 MHz	250 mW
1530-1562* nm	120 ps	10 MHz	1 W
1915-1990* nm	130 ps	15 MHz	25 mW
1915-1990* nm	130 ps	15 MHz	500 mW
2950-3670* nm	120 ps	80 MHz	10 mW

(* to be set or tuned by the user)

Target Applications

Applications that require wavelength agility and fixed pulse width (WA, wavelength agile)

• Optical coherence tomography (OCT)
• Time-resolved fluorescence spectroscopy

Applications that require pulse width agility and fixed wavelength (PA, pulse width agile)

• Dermatology
• Surface texturing (for implants)
• Laser-induced breakdown spectroscopy (LIBS)
• Dentistry
• Surgery

Applications that require both wavelength and pulse width agility (WPA, wavelength and pulse width agile)

• Combination of methods (OCT and nonlinear imaging)
• Research

More details can be down loaded as datasheet.
