Product description

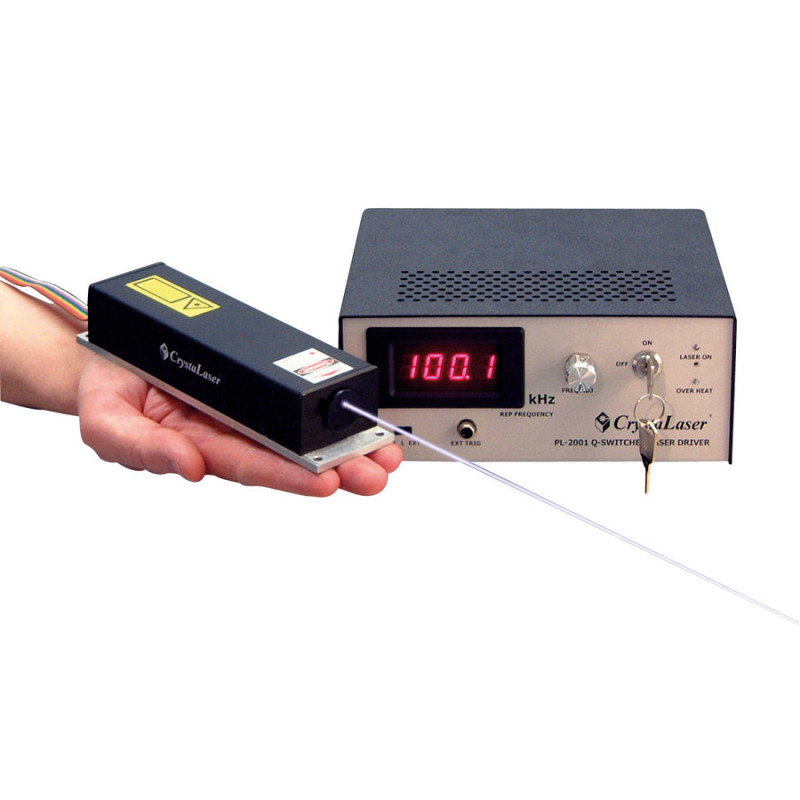

DPSS Q-Switched Lasers

A compact, active Q-Switched, pulsed laser with superior performance. The Q-Switched Series breakthrough technology enables optimum performance with the lowest power consumption available. The design is flexible enough for both the repetition rate and pulse width requirements of your application.

Specifications of the pulsed DPSS lasers CRL-QLlambda-xxx:

Wavelength lambda [nm]262, 266349, 351, 355440, 473523
Average opt. power [mW]*2...10010...10025...5050...1000
Pulse duration [ns]10-1510-1515-3510-25
Pulse rep. rate, int. trigger1 kHz-100 kHz1 kHz-100 kHz1 kHz-100 kHz1 kHz-100 kHz
Pulse rep. rate, ext. trigger0-200 kHz0-200 kHz0-200 kHz0-200 kHz
Power stability, rms (1-10 kHz)5%5%5%3%
Transversal mode TEM00, M2< 1,3< 1,3< 1,2< 1,2
Beam diameter 1/e2 [mm]0,15x0,30,20,20,3
Beam divergence, full [mrad]2-63-43-43-4



Wavelength lambda [nm]527532555656
Average opt. power [mW]*50...80050...1000500100...200
Pulse duration [ns]10-2510-2510-2520-40
Pulse rep. rate, int. trigger1 kHz-100 kHz1 kHz-100 kHz1 kHz-100 kHz1 kHz-100 kHz
Pulse rep. rate, ext. trigger0-200 kHz0-200 kHz0-200 kHz0-200 kHz
Power stability, rms (1-10 kHz)3%3%3%3%
Transversal mode TEM00, M2< 1,2< 1,2< 1,2< 1,2
Beam diameter 1/e2 [mm]0,30,30,30,5
Beam divergence, full [mrad]3-43-43-43-4



Wavelength lambda [nm]660, 6711047, 1053, 10641313, 1319, 13421444
Average opt. power [mW]*100...500200...1500200...500500
Pulse duration [ns]20-4015-3015-3015-30
Pulse rep. rate, int. trigger1 kHz-100 kHz1 kHz-100 kHz1 kHz-100 kHz1 kHz-100 kHz
Pulse rep. rate, ext. trigger0-200 kHz0-200 kHz0-200 kHz0-200 kHz
Power stability, rms (1-10 kHz)3%3%3%3%
Transversal mode TEM00, M2< 1,2< 1,2< 1,2< 1,2
Beam diameter 1/e2 [mm]0,50,50,50,5
Beam divergence, full [mrad]3-43-43-43-4

*the average optical power depends on the pulse repetition rate
