Product description

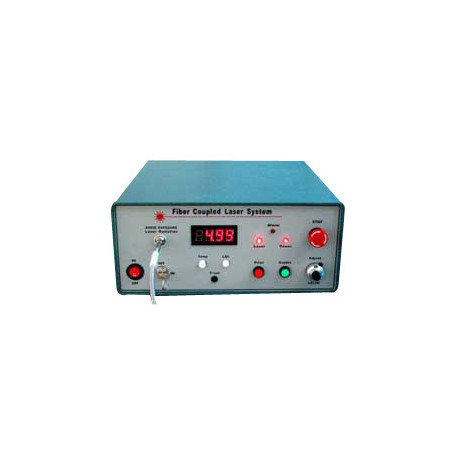

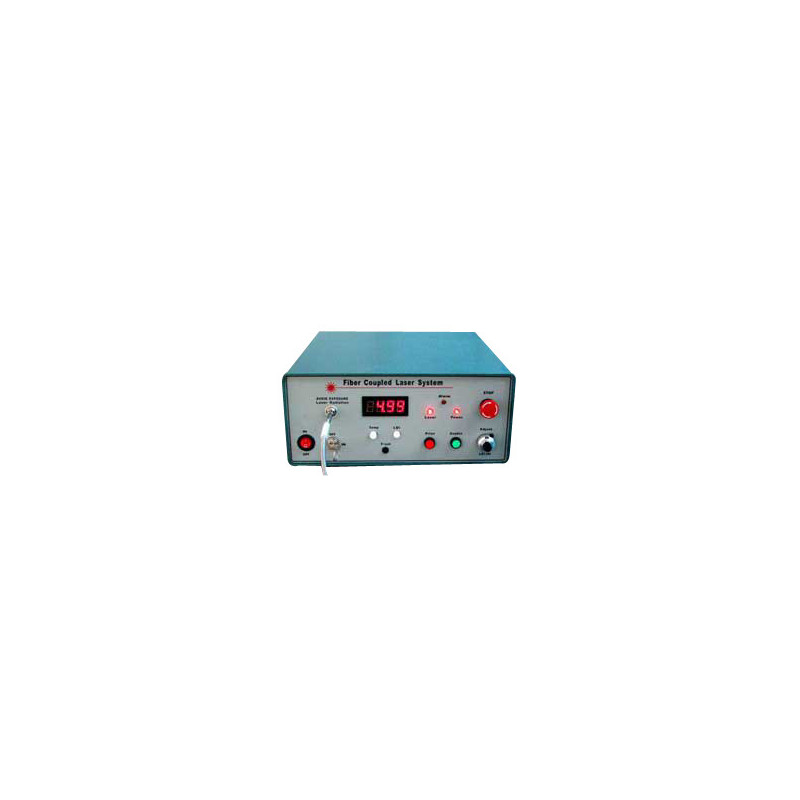

The high power fiber coupled diode laser systems have fiber coupling optics, laser power supply, LD current and temperature control in one compact housing. Its convenient functions like power adjustment, power modulation option, temperature control and LED display make it very suitable for applications in scientific research and industrial environment.

Available wavelengths and powers out of fiber:

Wavelength [nm]	Output Power [W]	Fiber core [µm]
639±4	3	400
639±4	5	400
639±4	7	400
793±3	40	400
808±3	20	400
808±3	30	400
808±3	50	400
810±10	25	400
810±10	35	400
810±10	50	400
879±1	30	400
879±1	50	400
880/885/888±3	30	400
915±5	30	400/200
915±5	50	400/200
938±3	30	400
938±3	50	400
976±3	30	400/200
976±3	50	400/200
980±10	30	400
980±10	50	400
1470/1530±20	20	400
1700±20	12	400
1900/1940±20	8	400
