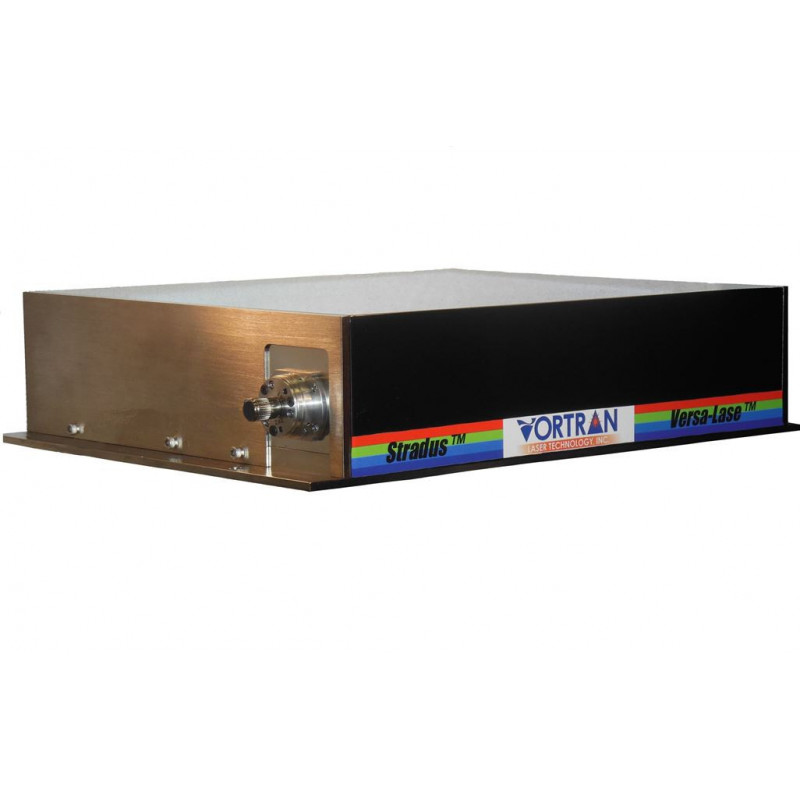

Multi-Color Laser Source VersaLase

Reference: VOR-VersaLase

Fuente que combina varios láseres en su interior con un único control y salida óptica, sea en fibra, sea colimada. Especialmente indicada para aplicaciones de microscopía e imagen

Download
Print
Send to a friend
Send to a friend
Multi-Color Laser Source VersaLase
Fuente que combina varios láseres en su interior con un único control y salida óptica, sea en fibra, sea colimada. Especialmente indicada para aplicaciones de microscopía e imagen
Recipient :
Name ^* :
E-mail ^* :
Kommentar
^* Required fields
or Cancel
Remove this product from my favorite's list.
Add this product to my list of favorites.

Alexandre Besson
Business Unit Director
+33 5 57 10 92 84
a.besson@laser2000.fr

Product request: Multi-Color Laser Source VersaLaseX

Dear Besson,

I am interested in the following product: Multi-Color Laser Source VersaLase

I am interested in:

an offer
Information material
a call back and consulting

Please complete at least the mandatory fields marked with *.

* Title:

Academic Degree:

First Name:

* Last Name: * Last Name:

* Company Name: * Company Name:

Company Address:

* Street: * Street:

* Zip Code: * Zip Code:

* City: * City:

* E-Mail: * E-Mail:

* Phone: * Phone:

Text:

* What do you see in picture 2?* What do you see in Picture 2?

laserdiode

Bitte auswählen:Please select: Diode Gauge Safety Goggles Safety Windows

Please check red marked fields.

Your request has been sent successfully. You will be contacted as soon as possible.

Product description

The new Vortran VersaLase laser module is a fully integrated, plug and play, and self-contained multiple wavelength output laser module. The patented sealed optical cavity and the innovative electronics give the VersaLaseTM unparalleled power stability, beam pointing stability, and low noise over time and temperature.

A Graphical User Interface (GUI) software allows the user to control and monitor the module remotely via USB or RS-232. Up to 4 different wavelengths between 375 nm and 660 nm can be integrated having one common free space or fiber coupled output. The intensity modulation is given for each color separately either by laser diode current modulation or by an integrated AOM for 561 nm.

Wavelengths (nm): 405±5, 445±5, 473±5, 488±5, 532±1, 561±2, 637+5/-1, 642+2/-5, 660+4/-8
Spatial Mode: TEM00
Beam Diameter (mm, 1/e2): 0.8-1.3
Beam Divergence (mrad): < 1.0
M2 (typical): < 1.25
Beam Circularity: > 90%
Beam Centration (mm): < 0.5
Beam Alignment (mrad): < 5
Pointing Stability (µrad/?C): < 5
Power Stability (over 24 hours): < 0.5%
Polarization Orientation: Vertical ±2?
Polarization Extinction Ratio: > 100:1
RMS Noise (10 Hz to 10 MHz): <0.5% for 532 nm, <0.25% for 514 nm, <0.15% for 488 nm, <0.1% for all others
Communication: Mini-USB and RS-232
