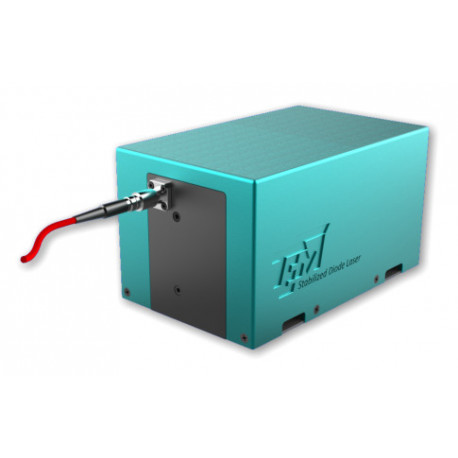

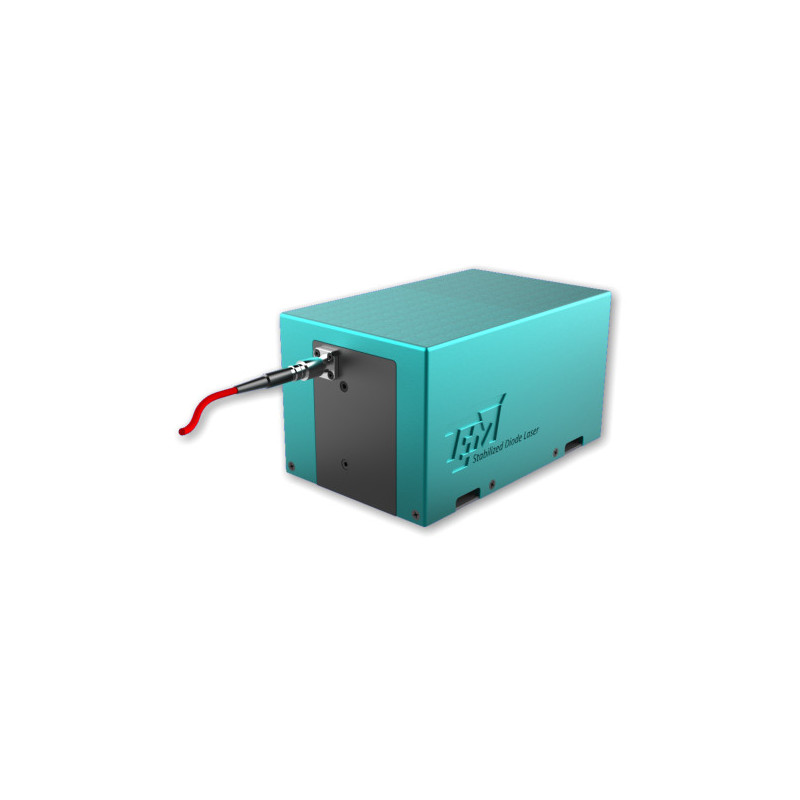

Stabilized Tunable Diode Laser

Reference: TEM-Lasy-633

Lasy 633 easily replaces conventional He-Ne lasers, e.g. in phase shifting interferometers.

Download
Print
Send to a friend
Send to a friend
Stabilized Tunable Diode Laser
Lasy 633 easily replaces conventional He-Ne lasers, e.g. in phase shifting interferometers.
Recipient :
Name ^* :
E-mail ^* :
Kommentar
^* Required fields
or Cancel
Remove this product from my favorite's list.
Add this product to my list of favorites.

Alexandre Besson
Business Unit Director
+33 5 57 10 92 84
a.besson@laser2000.fr

Product request: Stabilized Tunable Diode LaserX

Dear Besson,

I am interested in the following product: Stabilized Tunable Diode Laser

I am interested in:

an offer
Information material
a call back and consulting

Please complete at least the mandatory fields marked with *.

* Title:

Academic Degree:

First Name:

* Last Name: * Last Name:

* Company Name: * Company Name:

Company Address:

* Street: * Street:

* Zip Code: * Zip Code:

* City: * City:

* E-Mail: * E-Mail:

* Phone: * Phone:

Text:

* What do you see in picture 2?* What do you see in Picture 2?

laserdiode

Bitte auswählen:Please select: Diode Gauge Safety Goggles Safety Windows

Please check red marked fields.

Your request has been sent successfully. You will be contacted as soon as possible.

Product description

Lasy 633* is an extremely stable, tunable diode laser at a wavelength of 633nm. It contains an absolute frequency (wavelength) reference based on Iodine absorption spectroscopy, ensuring a stability of 50 MHz (66 fm) under all conditions for the life time of the laser. It can therefore directly replace a stabilized Helium-Neon laser in many applications. Unlike the He-Ne, Lasy 633 is tunable over 300 GHz (0.4 nm). This opens up a variety of new methods of measurement. As an example, a phase shift interferometer can accomplish the phase shifting by adequate steps of the laser frequency, rather than by a movement of a reference plane. The frequency tuning is highly linear and exactly reproducible thanks to patented iScan® technology, involving a tiny interferometer as frequency reference.

Lasy 633 is coupled to a polarization-maintaining single-mode fiber. Active stabilization ensures maximum fiber coupling efficiency for life time. Alternatively, the active fiber-coupling can stabilize the optical output power to a user-selectable value and thus operate as a power stabilizer.

Lasy 633 is self-contained and needs nothing but a 5V DC power supply for operation. If necessary, the user can control all relevant parameters remotely via a USB interface.

Lasy 633 comes in a closed desktop case or as a plug-in module for a 19 industrial standard rack case.

Applications:
