Product description

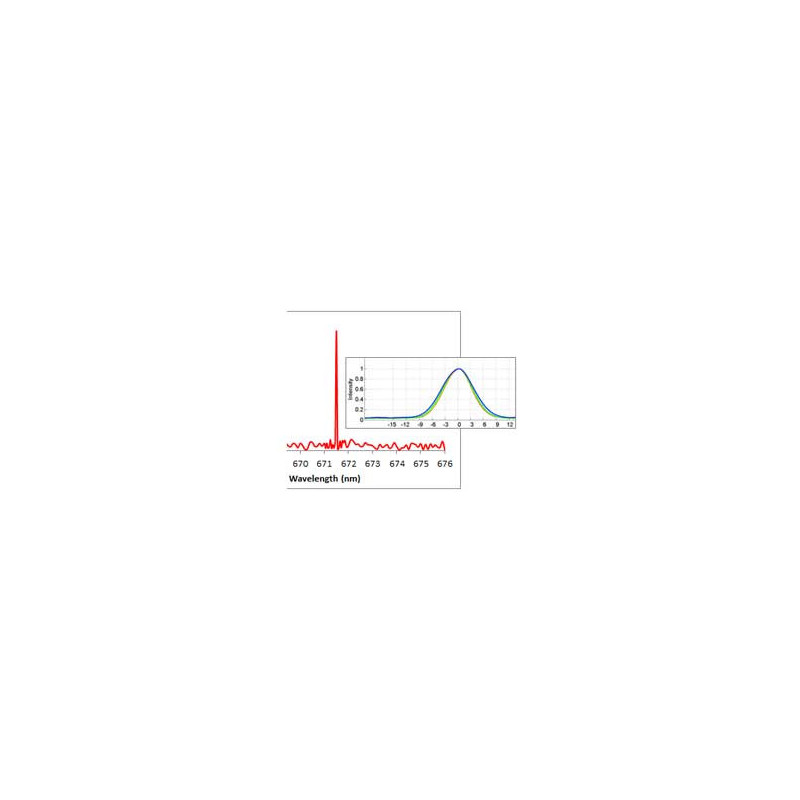

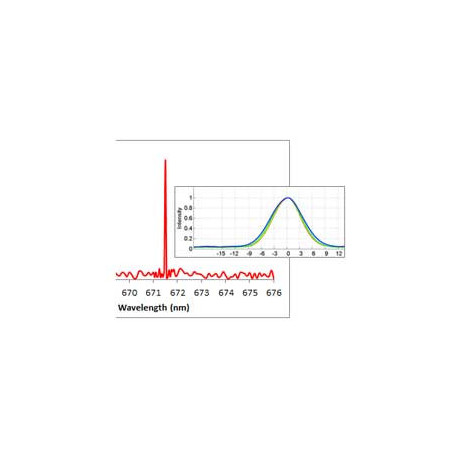

Singlemode VCSEL (red - NIR)
Single transverse mode (Gaussian beam shape) VCSEL with single linear polarized emission.

Type: 680Q
Wavelenght: 670 - 690 nm
Line width: < 1.5 nm
Power: 1.4 mW

This single mode beam divergence coherent polarized optical source is designed for OEM applications such as position sensing, motion control, medical devices, printing, and others.

A VCSEL is ideal for:
  • A source for high speed, short distance, optical communication applications
  • Applications requiring beam visibility, such as sensors that must be aligned (680 nm type)
  • Absorptive or spectroscopic sensors requiring a particular wavelength
  • High resolution applications requiring a small spot size

  • Low divergence angle
  • Low operating current (<10 mA)
  • Circular beam profile
  • Stable SM beam divergence emission over both temperature and current
  • Linear polarization orientated along chip edge

Package options include:
  • TO-46 hermetic can,
  • Industry standard PLCC2 SMT non-hermetic package,
  • Other packages upon request.
