> >Calibration lamp, Ar/Hg
Calibration lamp, Ar/Hg View larger

Calibration lamp, Ar/Hg

Reference: STE-SL2

Fuente de mercurio y argón. Gracias a sus definidas líneas de emisión entre 253 y 1014 nanómetros es ideal y para calibraciones, siendo además muy económica. Con salida de fibra óptica SMA






Alexandre Besson
Business Unit Director
+33 5 57 10 92 84
a.besson@laser2000.fr
Product request: Calibration lamp, Ar/HgX



Dear Besson,

I am interested in the following product: Calibration lamp, Ar/Hg

I am interested in:

an offer
Information material
a call back and consulting
Please complete at least the mandatory fields marked with *.



* Title:

Academic Degree:

First Name:

* Last Name: * Last Name:

* Company Name: * Company Name:

Company Address:

* Street: * Street:

* Zip Code: * Zip Code:

* City: * City:


* E-Mail: * E-Mail:

* Phone: * Phone:

Text:



* What do you see in picture 2?* What do you see in Picture 2?

laserdiode laserschutzbrille laserschutzfenster leistungsmessgerät


Bitte auswählen:Please select:    Diode    Gauge    Safety Goggles    Safety Windows



Please check red marked fields.




Your request has been sent successfully. You will be contacted as soon as possible.




Product description

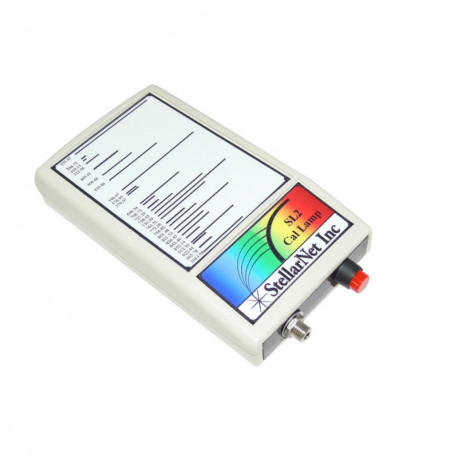

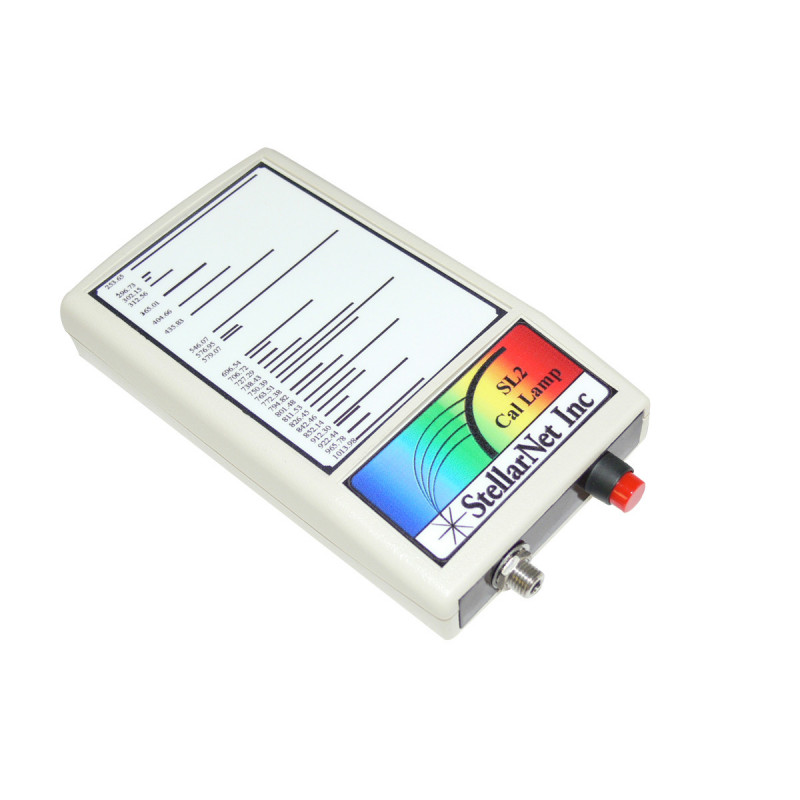

Calibration lamp with Mercury and Argon gas emission lines from 253-1013nm. Portable operation from 9VDC battery and includes 5VDC wall power adapter for 120 VAC, U.S. plug. Used to perform wavelength calibration and demonstrate spectrometer resolution and operational range for all spectrometer configurations
Specifications
  • Hg + Ar - spectral line lamp
  • to examining the wavelength calibration
  • SMA fiber adapter
  • 5 VDC or 9 V battery
  • approx. 19 x 50 x 115 mm


Check your equipment at these lines:
- 253.56nm
- 296.73nm
- 302.15nm
- 312.56nm
- 365.01nm
- 404.66nm
- 435.83nm
- 546.07nm
- 576.95nm
- 579.07nm
- 696.54nm
- 706.72nm
- 727.29nm
- 738.40nm
- 750.39nm
- 763.51nm
- 772.40nm
- 794.82nm
- 801.48nm
- 811.53nm
- 826.45nm
- 842.46nm
- 852.14nm
- 912.30nm
- 922.44nm
- 965.78nm
- 1013.98nm

Downloads - Calibration lamp, Ar/Hg

StellarNet_SL2_source

Data sheet StellarNet SL2 source

Download (374.06k)
