Narrow Linewidth SLM Diode Lasers

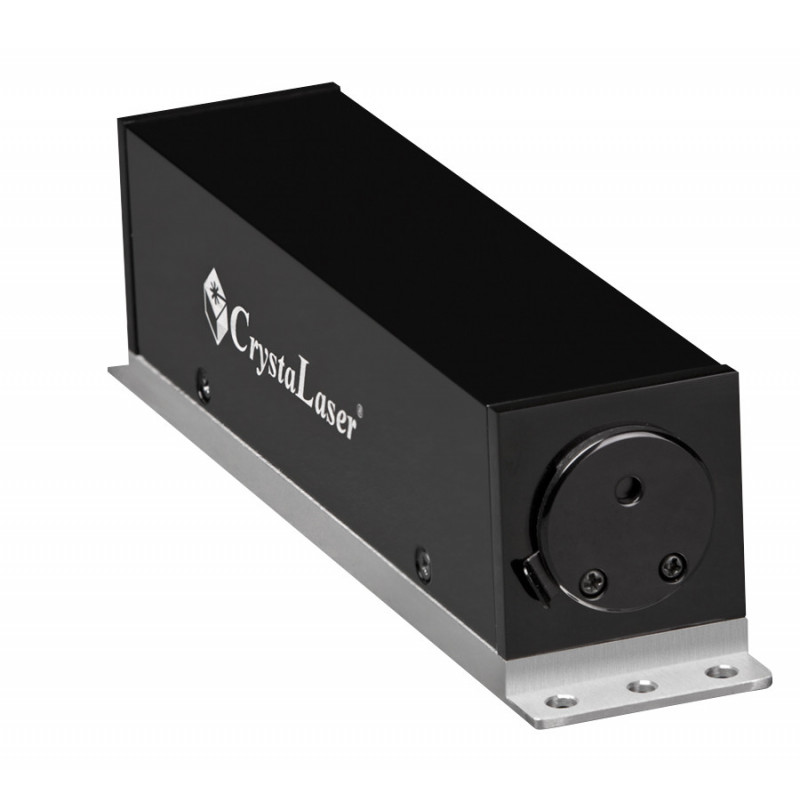

The narrow-band diode lasers from CrystaLaser feature an internal optical feedback to force the laser diode which normally operates in several modes onto a single longitudinal mode. The result is the laser diode operates in a narrow band with a coherence length of up to 5 m. Thanks to a feature that stabilizes the temperature of the laser head and a low-noise controller, a high degree of long-term stability and low noise levels can be achieved. Beam forming optics guarantee an almost perfect circular beam with a very good M2 value.

Specifications:

Wavelength [nm]	375	405	440	514	633	660
Optical power [mW]	5, 10	5-40	10-30	10	25-50	30-80
Coherence length [m]	>2	>2	>2	>2	>2	>2
Power stability over 24h	<1%	<1%	<1%	<1%	<1%	<1%
Noise [rms, 10Hz - 20 MHz]	<0,5%	<0,5%	<0,5%	<0,5%	<0,5%	<0,5%
Transversal mode TEM00, M2	<1,2	<1,2	<1,2	<1,2	<1,1	<1,1
Beam diameter 1/e2 [mm]	1	1	1	1	1	1
Beam divergence [mrad]	0,6	0,6	0,6	0,6	1	1
Wavelength [nm]	690	785	808	852	980	1550
Optical power [mW]	30	80	100	100	100 - 1000	500, 700
Coherence length [m]	>2	>5	>5	>5	>5	>5
Power stability over 24h	<1%	<1%	<1%	<1%	<1%	<1%
Noise [rms, 10Hz - 20 MHz]	<0,5%	<0,5%	<0,5%	<0,5%	<0,5%	<0,5%
Transversal mode TEM00, M2	<1,1	<1,1	<1,1	<1,1	<1,1	<1,1
Beam diameter 1/e2 [mm]	1	1	1	1	1	1
Beam divergence [mrad]	1	1	1	1	1	1
