Product description

red single spatial mode VCSEL (Vertical Cavity Surface Emitting Laser) designed for data communications, particularly in POF

Red VCSELs are generally more sensitive to elevated temperature than 850nm VCSELs. However, with care in the electrical and thermal design of the devices, significant progress has been made in improving the output power, the temperature range of operation, the modulation speed and the operation lifetime of red VCSELs.

This product has overcome the problems of short wavelength VCSELs and outperforms the traditional ones at 850nm.

Features:

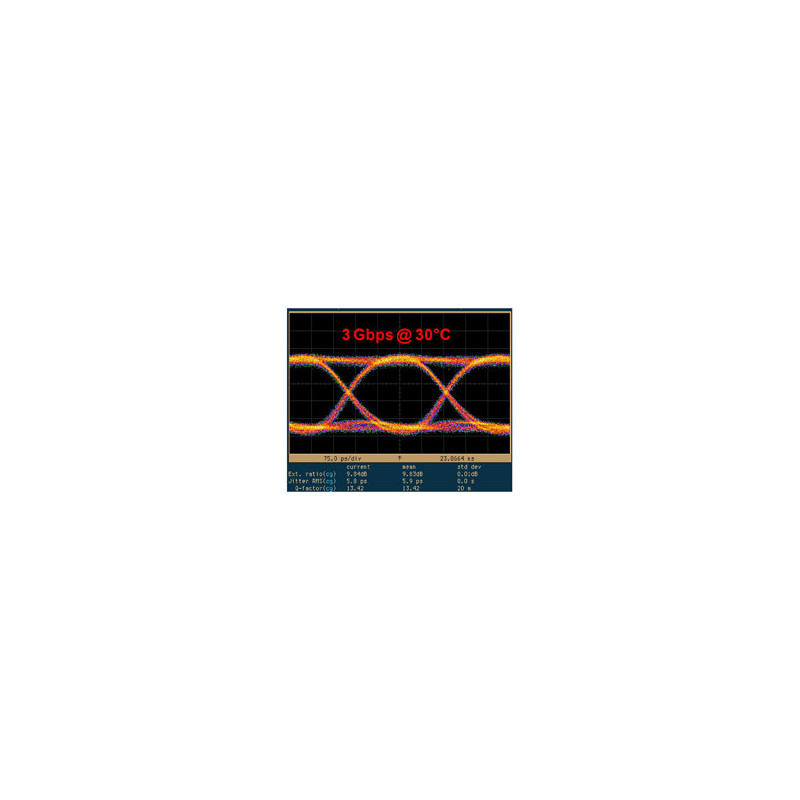

up to 3.5 Gbps
680nm (670-690 nm), 3.5 mW
Circular beam with low divergence angle
Low operating current: 5mA
Stable polarization

Package Options:

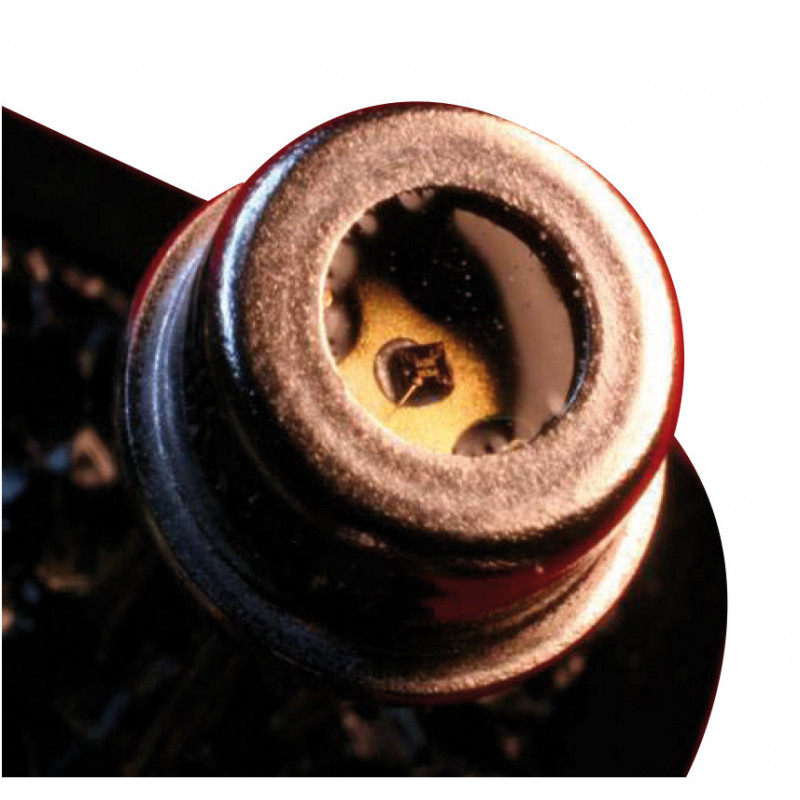

TO-46

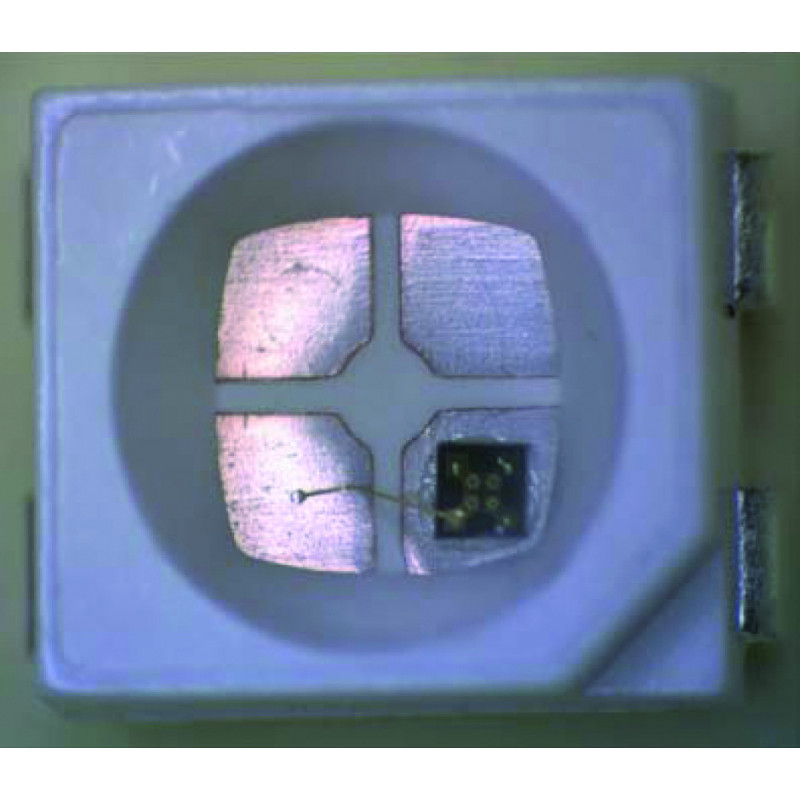

PLCC-2 SMT
PLCC-4 SMT

Optionally with ESD diode to protect against EOS (Electrical Over Stress)

For more details please see datasheet in the Media section on this page.
