Product description

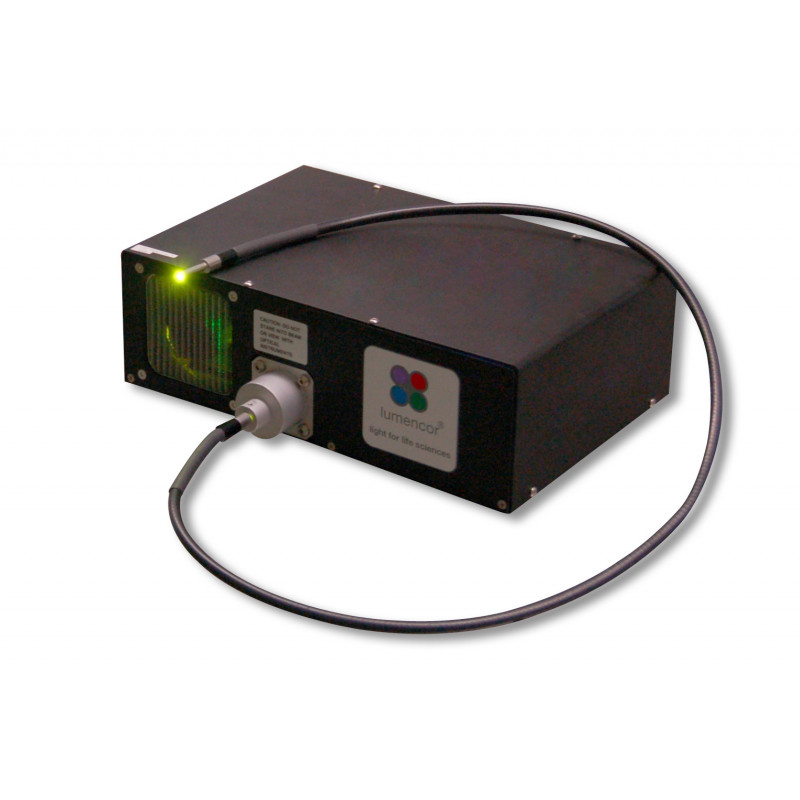

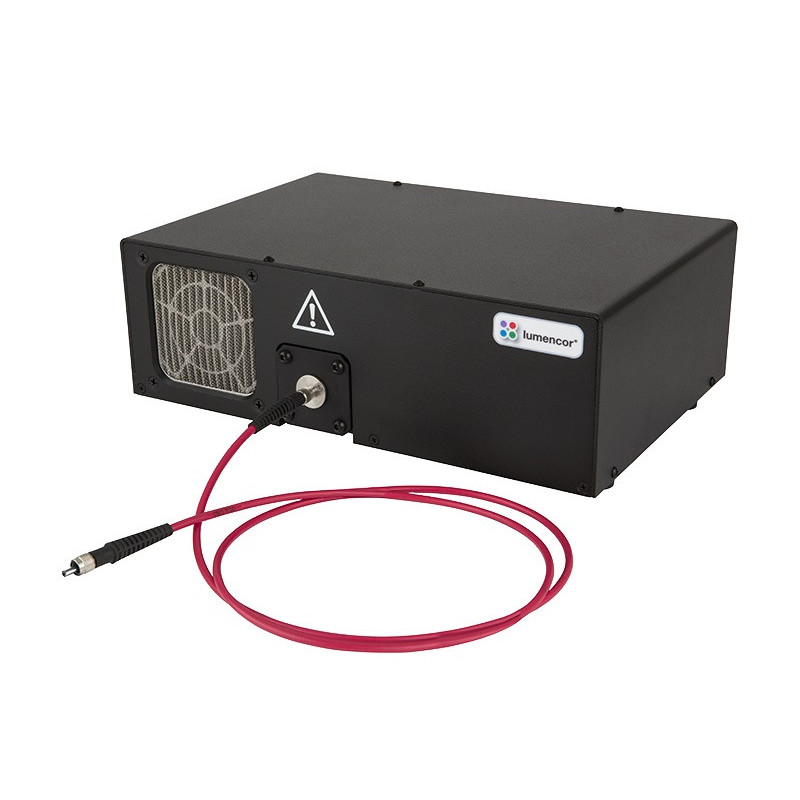

Laser 2000 introduces a Multi Channel Microscopy Source for fluorescence applications. The LUI-Spectra-7 offers up to 7 excitation bands exactly tuned to the existing fluorescence colourants. High light yield, minimal stray light and fast switching times in KHz range open new possibilities in Live-Cell-Imaging.

The microscopy light source from Lumencor implements a patented technology with many advantages coming together like intensity, bandwidth, noise, channel selection and control. Built around specific subsystems, the excitation sources can be customized for the Life Science Market in up to 7 channels. There are available adaptors for Microscopy, High Content Screening, Flow Cytometry and Chemical Analysis.

The individual channels can be triggered in the µsec range. There are also drivers for the main software packages in the filed of Microscopy-Imaging. This microscopy illumination source replaces existing lamp systems adding higher lifetime (up to 10.000 h) and optimized light yield. These light sources combines perfectly with Chroma filters.

Channel:Fluorescence dye
VioletDapi/Höchst
BlueCFP
CyanFITC/GFP/SYBR Green
TealYFP
GreenTRITC/Cy3
YellowROX/mCherry/TexasRed
RedCy5

Applications:
  • Microscopy
  • HTS, HCS
  • Flow Cytometry
  • In Vivo Imaging
  • Endoscopy
  • Analytical Chemistry

Technical Specifications:
  • Modulation rate: > 5 kHz
  • Shutter control via TTL

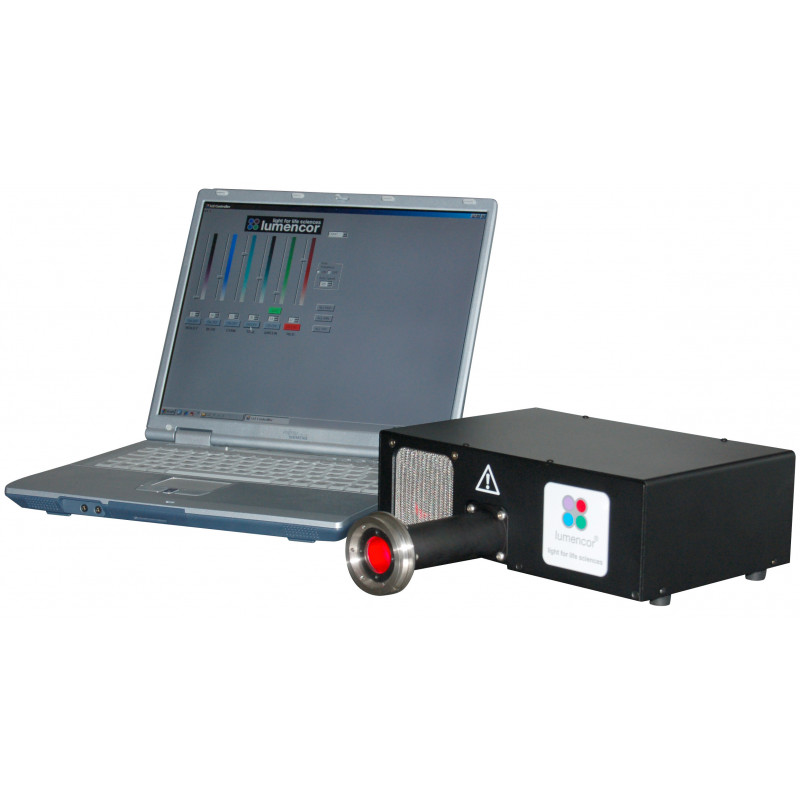

  • Including GUI for Remote-Control
  • Intensity control via RS232
  • Shutter speed: < 6 µsec rise time, < 20 µsec fall time
  • Spectral Stability: < 0,5%
  • Power Stability: <1%
  • Warm-up time: 1 - 10 min
  • Lifetime up to 10.000 h
  • Size: 90 x 180 x 230 mm
  • Power: 100 - 240 VAC 50/60 Hz, 1,5 A
  • Weight: ca. 3,6 kg

For direct or light guide coupling to the Epi-fluorescence port of different microscopes there are adaptors available.

Article-NrAdapter
LUI-82-10007Fly-In Adapter
LUI-82-10006Liquid Light Guide 3mm x 1m
LUI-82-10008Fiber-Adapter 1mm
LUI-82-10003Adapter for Nikon Ti-Serie
LUI-82-10002Adapter for Olympus IX/BX
LUI-82-10001Adapter for Zeiss Axio
LUI-82-10005Adapter for Zeiss Navitar

The optics included is designed for an optical Köhler Illumination on the Backfocal Plane of the objective. The purchase of one Light Engine includes an adaptor. Further adaptors can be ordered.
