Product description

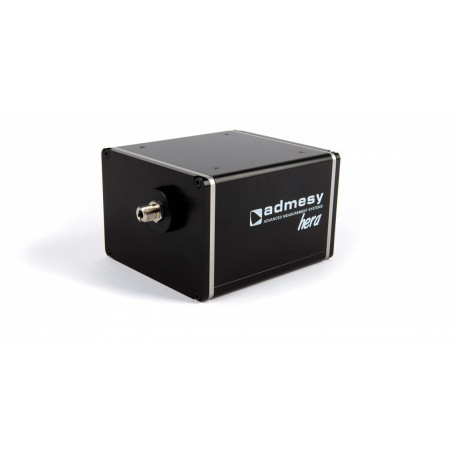

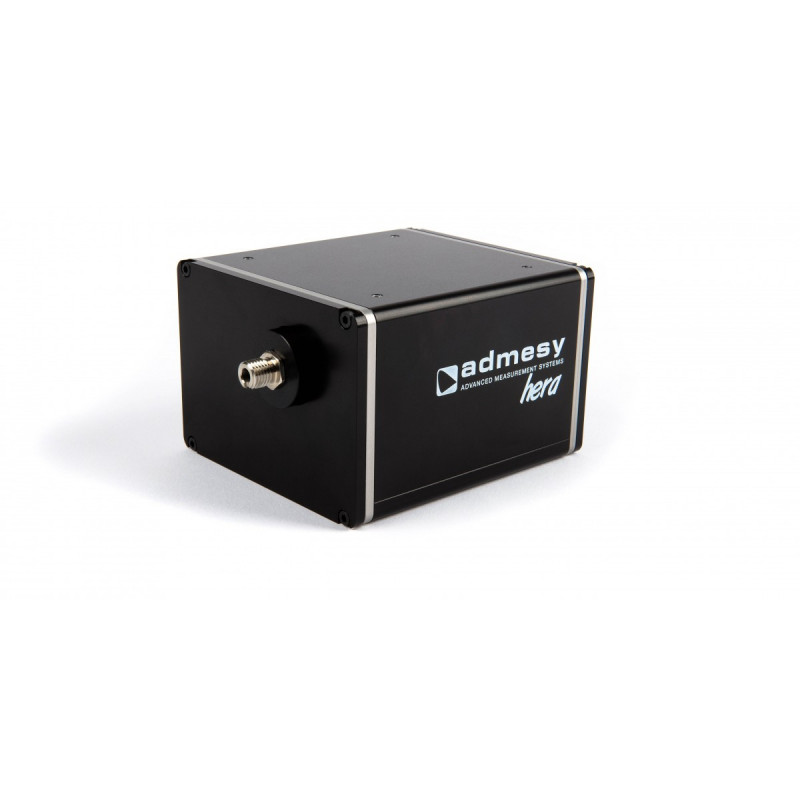

Compact high end spectrometer from Admesy

The Hera spectrometer series is a highly accurate spectrometer with auto range function and excellent linearity in a robust and compact housing. Due to this combination the Hera can be used in a broad range of applications varying from R&D research to non-stop use in production environments. The Hera is available with a fixed (lens or cosine corrector) or fiber optics setup covering all you need to start your measurements. The Hera: stuffed with measurement power!

Highlights of the compact high end spectrometer

Numerous spectral ranges: 380 - 780 nm, 360 - 830 nm, 190 - 435 nm, 200 - 1100 nm
Fiber, lens or cosine corrector configuration
Measures xy, CRI, CCT, luminance, spectrum
Autorange function
Excellent linearity
Dark current compensated

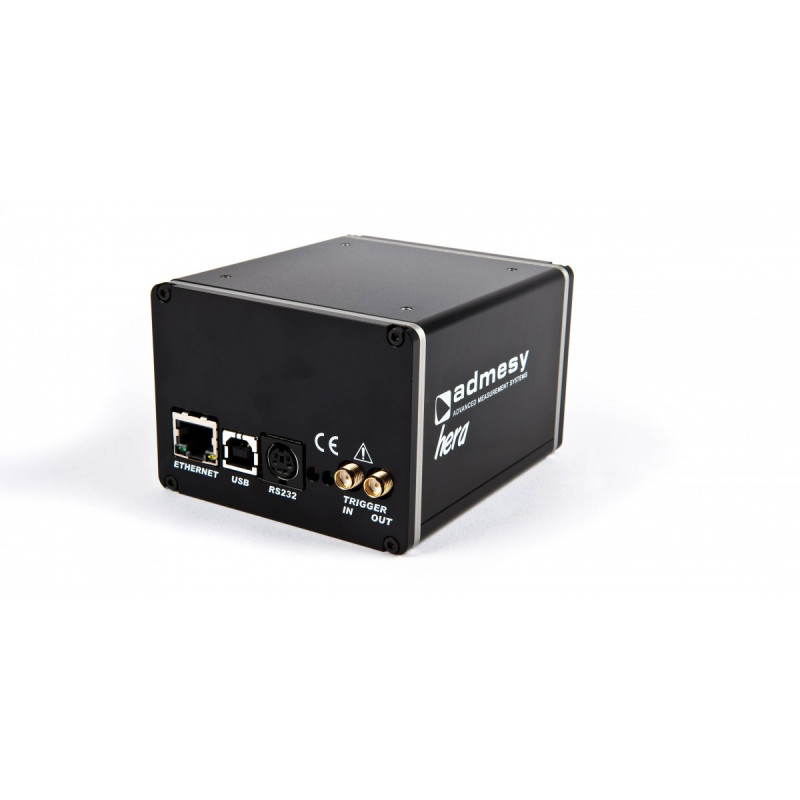

Numerous interfaces (USB, RS232, Ethernet), ideal for system integration
USBTMC compliant, SCPI command set, High speed device
All calculations done inside

Specifications

Model	Hera 01 – VIS
Spectral range	380 - 780 nm
Optical resolution (FWHM)	2.3 nm
Order sorting filter	2nd order sorting filter
Wavelength accuracy	+/- 0.5 nm
Stray light	<0.03 %
Luminance accuracy*2	+/-4%
Chromaticity accuracy*2	+/- 0.002
Non - Linearity	< 1%
Integration time	2.5 ms – 20 s
Spectral resolution	Selectable 0.5 nm - 1 nm - 2.5 nm - 5 nm - 10 nm
Interfaces	High speed USB, RS232, Ethernet, Trigger connections
Measurement parameters	Spectral output, radiometric data or colour data (Lumen, x,y, DWL, PWL, CRI, CCT, etc.)
Data processing time	14 ms
Size (L x W x H)	95 x 81 x 61mm (without optical system)
Weight	650 gram
Operating temperature	10 - 35 °C
Power consumption	1250 mW
Luminance range	0.05 – 6000 cd/m²
Wavelength accuracy	+/- 0.5 nm
Luminance accuracy (measured at standard illuminant A)	+/-4%
Colour accuracy (measured at standard illuminant A)	+/-0.002
