Product description

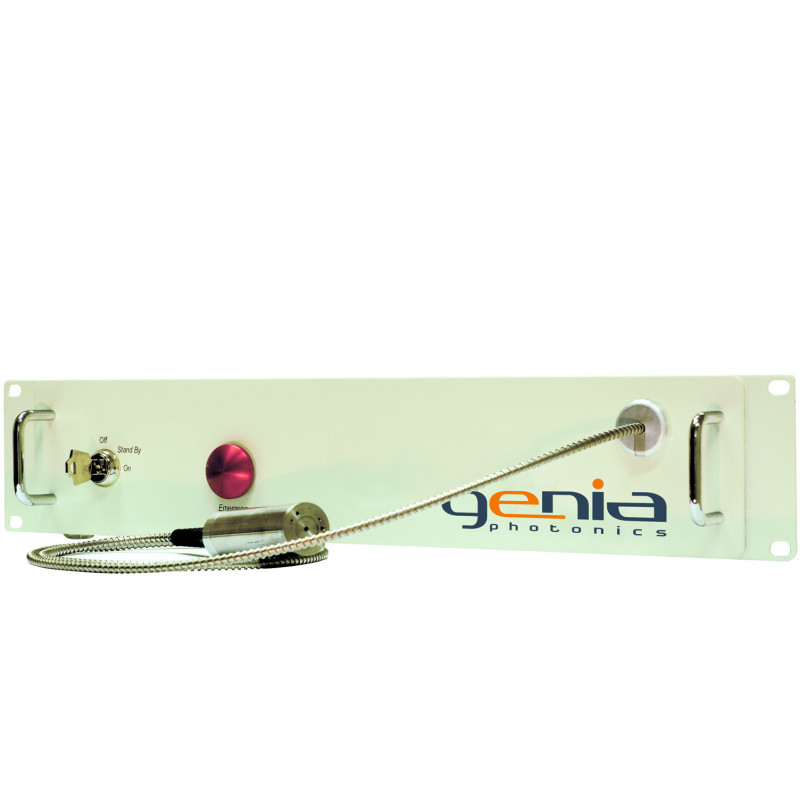

MOPA (Master Oscillator Power-Amplifier)

The MOPA (Master Oscillator Power-Amplifier) fiber laser/amplifier architecture is used to amplify the output of a seed laser to higher power. The seed incorporated in our MOPA can be configured by the user with different wavelengths, pulse widths and repetition rates according to the desired application. The energy and output power are also user-controlled.

Examples for standard setups:

Wavelength	Pulse duration	Repetition rate	Average power
850 nm	25 ps	200 MHz	4 mW
1064 nm	22 ps	40-120* MHz	100 mW
1064 nm	90-2000* ps	0.2-125* MHz	10 W
1020-1080* nm	22 ps	40-120* MHz	100 mW
1530-1562* nm	25 ps	10 MHz	250 mW
1530-1562* nm	120 ps	10 MHz	1 W
1915-1990* nm	130 ps	15 MHz	25 mW
1915-1990* nm	130 ps	15 MHz	500 mW
2950-3670* nm	120 ps	80 MHz	10 mW

(* to be set or tuned by the user)

Please let us know your requirements and we will inform you properly.

More details can be down loaded as datasheet.
