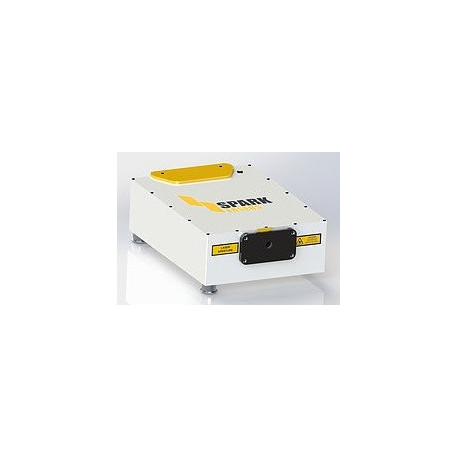

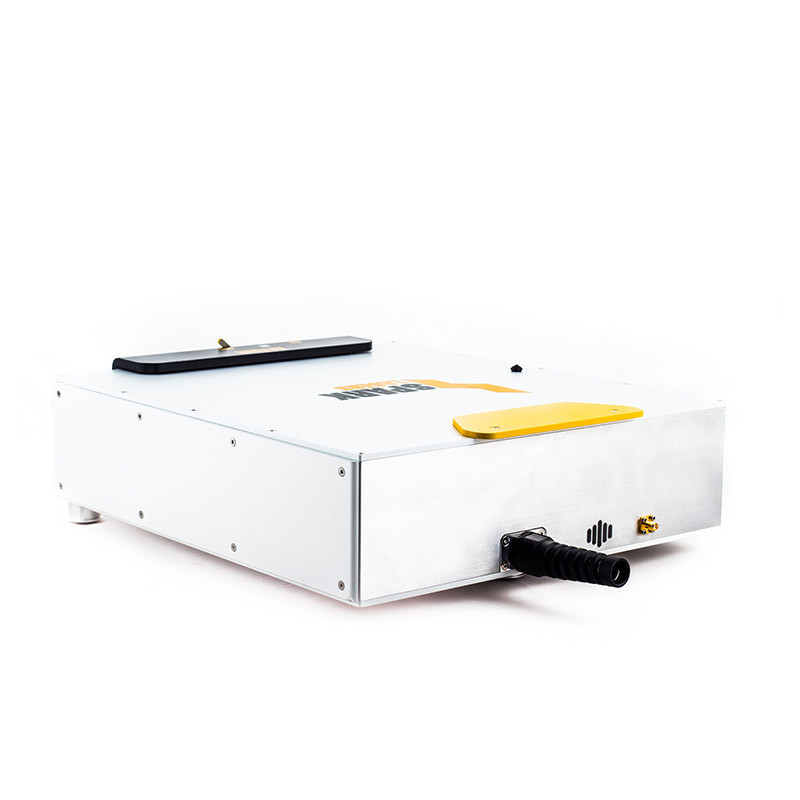

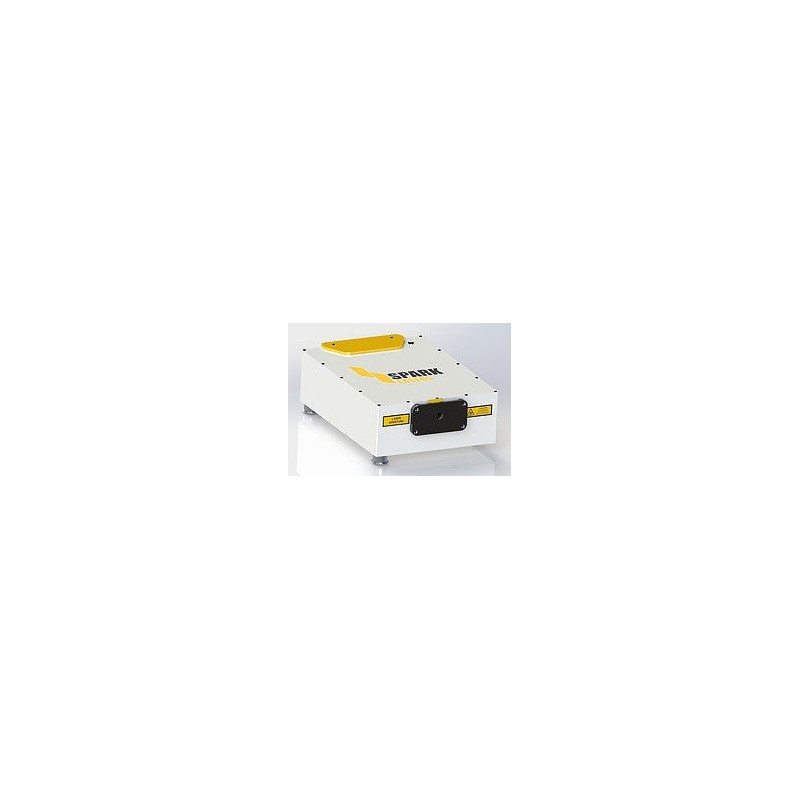

High repetition rate, high power, narrow linewidth picosecond fiber laser

Reference: SPK-Antares

ANTARES produces high average power with short (<10 ps) pulses at high repetition rates (40 MHz or 80 MHz) in a compact and robust format. It is ideal for biophotonics and OPO pumping.






Victor Blanco
Business Unit Director
+34 617 30 82 36
victor@laser2000.es
Product request: High repetition rate, high power, narrow linewidth picosecond fiber laserX



Dear Blanco,

I am interested in the following product: High repetition rate, high power, narrow linewidth picosecond fiber laser


I am interested in:

an offer
Information material
a call back and consulting
Please complete at least the mandatory fields marked with *.



* Title:

Academic Degree:

First Name:

* Last Name: * Last Name:

* Company Name: * Company Name:

Company Address:

* Street: * Street:

* Zip Code: * Zip Code:

* City: * City:


* E-Mail: * E-Mail:

* Phone: * Phone:

Text:




* What do you see in picture 2?* What do you see in Picture 2?

laserdiode laserschutzbrille laserschutzfenster leistungsmessgerät


Bitte auswählen:Please select:    Diode    Gauge    Safety Goggles    Safety Windows



Please check red marked fields.




Your request has been sent successfully. You will be contacted as soon as possible.





Product description

Ultrafast compact picosecond (ps) and femtosecond (fs) lasers: the highest quality in the most compact housing, from our partner Spark Lasers



ANTARES produces high average power with short (<10 ps) pulses at high repetition rates (40 MHz or 80 MHz) in a compact and robust format. Offering one of the world’s lowest cost of ownership, high precision and easiness of integration, ANTARES is ideally suited for industrial and scientific applications such as biophotonics and OPO pumping.



Integrating state of the art high-power fiber amplifiers, ANTARES offers remarkable spectral, temporal and spatial quality at high energy and high average power.



Main features

  • Wavelength 1030 nm or optional 1064 nm
  • Optional SHG-green and THG-UV
  • Average power from tens of mW to 20 W
  • Pulse duration ?10 ps
  • High repetition rate: 40 or 80 MHz
  • M2  ? 1.2
  • Linewidth <2 nm



Key applications

  • Time correlated single photon counting
  • Fluorescence lifetime imaging
  • CARS spectroscopy, general spectroscopy
  • Efficient OPO pumping
  • Semiconductor inspection



 Technical specifications

Average power

From 10s of mW to 20 W

Wavelength

1030 or 1064 nm (upon request)

Spectral width

<2 nm

Pulse duration

<10 ps

Repetition rate

40 or 80 MHz

M^2

<1.2

Beam waist diameter

1 mm

Beam pointing stability

<25 µrad/°C

Ellipticity

>0.9

Warm-up time

<5 min

Power stability

<1% RMS

RMS noise

<1%

Polarization

Linear, >100:1


Electrical

External interfaces

High speed external synchronization (Synch. Out), USB, RS232, TCP/IP

Software interfaces

Intuitive GUI, Serial communication protocol

Power consumption

100-240 VAC, <400 W


Mechanical

Laser head dimensions & weight

397x399x131 mm^3, 13 kg

Laser controller dimensions & weight

19”/3U rack, 7.5 kg

Standard umbilical length

3 m

Cooling

Air cooled


Options

SHG & THG

Upon request

F-SYNC

Fine-tuning PRF synchronization ±1 MHz around a fixed central frequency. Can synchronize with any 3rd party master device.

Spectral linewidth

Extremely narrow, <1 nm
