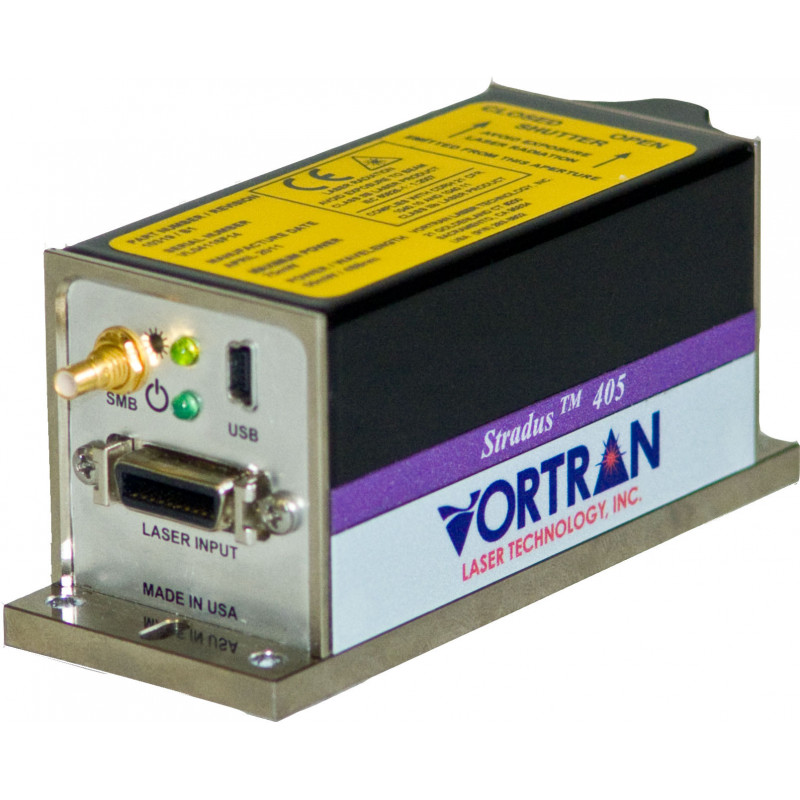

Diode Lasers with Modulation and USB

Reference: VOR-Diode-Laser

Láseres de diodo de alta estabilidad y larga vida útil, modulables y con interfaz USB. Esta familia Stradus del fabricante Vortran incluye además algunos modelos de DPSS

Download
Print
Send to a friend
Send to a friend
Diode Lasers with Modulation and USB
Láseres de diodo de alta estabilidad y larga vida útil, modulables y con interfaz USB. Esta familia Stradus del fabricante Vortran incluye además algunos modelos de DPSS
Recipient :
Name ^* :
E-mail ^* :
Kommentar
^* Required fields
or Cancel
Remove this product from my favorite's list.
Add this product to my list of favorites.

Alexandre Besson
Business Unit Director
+33 5 57 10 92 84
a.besson@laser2000.fr

Product request: Diode Lasers with Modulation and USBX

Dear Besson,

I am interested in the following product: Diode Lasers with Modulation and USB

I am interested in:

an offer
Information material
a call back and consulting

Please complete at least the mandatory fields marked with *.

* Title:

Academic Degree:

First Name:

* Last Name: * Last Name:

* Company Name: * Company Name:

Company Address:

* Street: * Street:

* Zip Code: * Zip Code:

* City: * City:

* E-Mail: * E-Mail:

* Phone: * Phone:

Text:

* What do you see in picture 2?* What do you see in Picture 2?

laserdiode

Bitte auswählen:Please select: Diode Gauge Safety Goggles Safety Windows

Please check red marked fields.

Your request has been sent successfully. You will be contacted as soon as possible.

Product description

The Stradus series diode lasers are characterized by their fast modulation capability. A circular TEM00 beam profile, low noise and an excellent long-term stability are given by default.

Properties:

- Circular Beam Profile

- TEM00, M2<1.25

- Stability <0.5% over 24 hours

- Noise 0.1% to 0.25% (wavelength dependent)

- Digital Modulation up to 200 MHz

- Analog Modulation up to 500 kHz

- USB and RS232 Interface

- Graphical User Interface Software GUI

- Dimensions Laser Head 40 x 45.1 x 100 mm

- Fiber Coupling Option (Singlemode, FC/PC)

- OEM Versions available

Wavelengths and optical powers:

Part number	Wavelength [nm]	Power [mW]
VOR-375-060	375	60
VOR-405-100	405	100
VOR-405-250	405	250
VOR-445-080	445	80
VOR-473-080	473	80
VOR-488-050	488	50
VOR-488-150	488	150
VOR-505-070	505	70
VOR-514-060	514	60
VOR-532-040*	532*	40*
VOR-561-050*	561*	50*
VOR-633-080	633	80
VOR-637-140	637	140
VOR-642-110	642	110
VOR-660-100	660	100
VOR-685-100	685	100
VOR-705-030	705	30
VOR-730-030	730	30
VOR-785-080	785	80
